| Material: | 100% Polyester | Color: | White And Bule |
|---|---|---|---|
| Product Name: | Polyester Liner Plain Weave Mesh Belt | Hole Size: | 0.5-10mm |
| Usage: | Food Drying | Sample: | Free Sample |
| High Light: | square hole polyester mesh belt,paper making industry filter mesh belt,paper making industry polyester mesh belt |
||

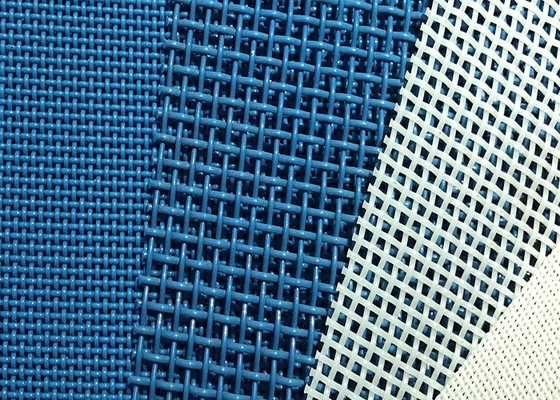

Blue Color High Temperature Resistant Polyester Plain Weave Square Hole Mesh Fabric Food Grade
The polyester plain weave 2-shed and 3-shed fabric is mainly used in special lines of paper making industry, Such as paper pulps making, packing and liner cardboard making, etc. Also can be used in mining industry for sieving or conveyor belt, high density board making, food drying, sludge dehydration machine, Concentrate and other filtration industries.
| Product name | Polyester plain weave mesh screen fabric |
| Width of the belt | 20-480cm |
| Hole size | 0.5-20mm |
| Color | White and blue |
| Type of the mesh | 09502 06802 06702 |
Usage:
1. filtering
2. Dewatering
3. washing
4. mining
5. Fruit and vegetables food drying
6. Paper making
|
Type |
Filament diameter mm |
Density/cm |
Weight Kg/m2 |
Thickness mm |
Aperture mm Warp/weft |
CFM 127Pa |
||
|
Warp |
Weft |
经线 Warp |
纬线 Weft |
|||||
| RK021002 | 1.0 | 1.0 | 2.85 | 2.65 | 0.6 | 1.85 | 2.5*2.77 | 2000 |
| RK031002 | 1.0 | 1.0 | 3.2 | 3.25 | 0.8 | 1.86 | 2.12*2.07 | 1600 |
| RK06802 | 0.8 | 0.8 | 6.6 | 6.5 | 0.85 | 1.45 | 0.72*0.73 | 725 |
| RK06702 | 0.7 | 0.7 | 7 | 7 | 0.77 | 1.3 | 0.72*0.72 | 690 |
| RK07802 | 0.8 | 0.8 | 7.8 | 7 | 1.1 | 1.45 | 0.32*0.54 | 370 |
| RK09502 | 0.5 | 0.5 | 9.7 | 10.3 | 0.5 | 0.9 | 0.53*0.47 | 634 |
| RK12502 | 0.5 | 0.5 | 13.5 | 8.5 | 0.63 | 1.95 | 0.24*0.65 | 6280 |
| RK09452 | 0.45 | 0.45 | 10 | 8.6 | 0.45 | 0.88 | 0.55*0.71 | 970 |
| RK08603 | 0.5 | 0.6 | 9.4 | 9 | 0.6 | 0.15 | 0.56*0.51 | 560 |
| RK08502 | 0.5 | 0.5 | 9.5 | 8.6 | 0.89 | 0.47 | 0.50*0.65 | 634 |
| RK06803 | 0.7 | 0.8 | 7 | 5.5 | 0.75 | 1.53 | 0.72*1.0 | 1000 |
| RK09603 | 0.5 | 0.5 | 10.5 | 9.2 | 0.65 | 1.05 | 0.45*0.48 | 518 |
