Material: | 100% Polyester | Color: | White And Bule |
---|---|---|---|
Product Name: | Polyester Liner Plain Weave Mesh Belt | Hole Size: | 0.5-10mm |
Usage: | Food Drying | Sample: | Free Sample |
High Light: | high temperature resistant polyester mesh belt,plain weave polyester mesh belt |

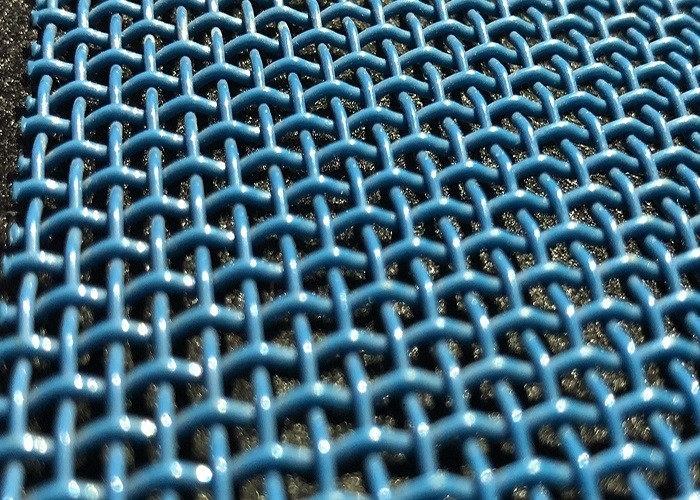

Blue Color High Temperature Resistant Polyester Plain Weave Square Hole Mesh Fabric Food Grade
The polyester plain weave 2-shed and 3-shed fabric is mainly used in special lines of paper making industry, Such as paper pulps making, packing and liner cardboard making, etc. Also can be used in mining industry for sieving or conveyor belt, high density board making, food drying, sludge dehydration machine, Concentrate and other filtration industries.
Product name | Polyester plain weave mesh screen fabric |
Width of the belt | 20-480cm |
Hole size | 0.5-20mm |
Color | White and blue |
Type of the mesh | 09502 06802 06702 |
Features:
1) Chemical, thermal resistance
2) Easy to clean
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
4) Precise aperture from 0.5mm-2mm, good filtration ability.
5) Smooth running properties
6) Max. Width 6.0 M
7)Side treatment can be resin glued coated and canvas coated
8) Connection way: Clipper seam, pin rings, spiral rings, endless
Type |
Filament diameter mm |
Density/cm |
Weight Kg/m2 |
Thickness mm |
Aperture mm Warp/weft |
CFM 127Pa |
||
Warp |
Weft |
经线 Warp |
纬线 Weft |
|||||
RK021002 | 1.0 | 1.0 | 2.85 | 2.65 | 0.6 | 1.85 | 2.5*2.77 | 2000 |
RK031002 | 1.0 | 1.0 | 3.2 | 3.25 | 0.8 | 1.86 | 2.12*2.07 | 1600 |
RK06802 | 0.8 | 0.8 | 6.6 | 6.5 | 0.85 | 1.45 | 0.72*0.73 | 725 |
RK06702 | 0.7 | 0.7 | 7 | 7 | 0.77 | 1.3 | 0.72*0.72 | 690 |
RK07802 | 0.8 | 0.8 | 7.8 | 7 | 1.1 | 1.45 | 0.32*0.54 | 370 |
RK09502 | 0.5 | 0.5 | 9.7 | 10.3 | 0.5 | 0.9 | 0.53*0.47 | 634 |
RK12502 | 0.5 | 0.5 | 13.5 | 8.5 | 0.63 | 1.95 | 0.24*0.65 | 6280 |
RK09452 | 0.45 | 0.45 | 10 | 8.6 | 0.45 | 0.88 | 0.55*0.71 | 970 |
RK08603 | 0.5 | 0.6 | 9.4 | 9 | 0.6 | 0.15 | 0.56*0.51 | 560 |
RK08502 | 0.5 | 0.5 | 9.5 | 8.6 | 0.89 | 0.47 | 0.50*0.65 | 634 |
RK06803 | 0.7 | 0.8 | 7 | 5.5 | 0.75 | 1.53 | 0.72*1.0 | 1000 |
RK09603 | 0.5 | 0.5 | 10.5 | 9.2 | 0.65 | 1.05 | 0.45*0.48 | 518 |
