Customized 100% Plain Weave Polyester Mesh Belt Convey Belt For Food Drying

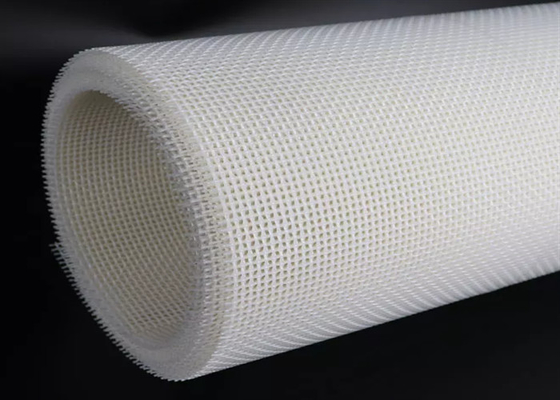

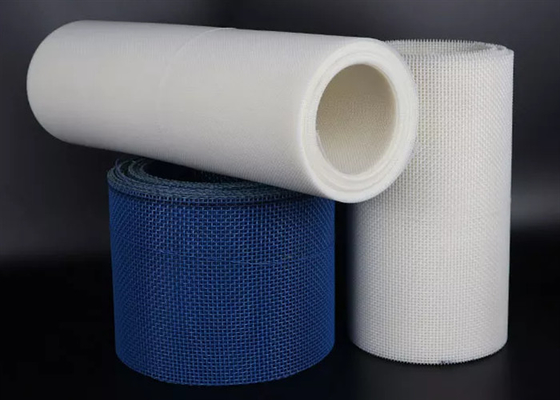

Polyester Square Hole Mesh Belt Product Introduction
1. the width of polyester plain weave mesh is usually 1 meter - 6 meter
the length is available as per requirement
2. the opening size can be 400 micron,500micron,600micron,700micron,800micron
1000micron1500micron 1800micron 2000micron 2500micron and 3000micron
3. edge treatment the edge of polyester mesh belt can be sealed with glue and cavans
4. the joining type of polyester plain mesh screen can be endless steel pin joining
spiral ring joining and pin ring joining.
| Weaving Type |
Thread Diameter(mm) |
Density(No.s/cm) |
Strength (N/cm) |
Air Permeability(m³/m²h) |
| Warp |
Weft |
Warp |
Weft |
| 2-shed plain weaving fabric |
0.7 |
0.8 |
4.7-5.0 |
4.8-5.0 |
940 |
>20000 |
| 1.0 |
1.0 |
4.7-5.2 |
4.3-5.0 |
1600 |
>15000 |
| 0.7 |
0.7 |
8.0 |
7.0 |
≥1600 |
11000 |
| 0.7 |
0.7 |
6.6-7.0 |
4.3-4.6 |
1100 |
>15000 |
| 0.55 |
0.55 |
7.5-8.0 |
8.5-9.0 |
850 |
850-6500 |
| 0.45 |
0.45 |
10.0 |
8.6 |
1600 |
1600 |
| 0.55 |
0.55 |
8.5-9.0 |
10-10.5 |
750 |
>10000 |
| 0.55 |
0.55 |
13.5 |
8.5 |
1800 |
6500 |
| 3-shed plain weaving fabric |
0.55 |
0.6 |
10.0 |
9.0 |
1600 |
14000 |
| 0.9 |
0.9 |
7.8-8.0 |
5.0-5.5 |
2100 |
87500-8500 |
| 0.7 |
0.8 |
8.0 |
8.0 |
1600 |
10000 |
| 0.3 |
0.35 |
22.0 |
14.5 |
1200 |
13000 |
| 0.3 |
0.4 |
22.0 |
14.5 |
1200 |
13500 |
Polyester Square Hole Mesh Belt Product Introduction Description
1 Polyester square hole mesh belt have the characteristics of good water permeability
2 air permeability and non-revealed sludge, acid-resisting and alkali-resisting
3 Because of their designing structure, the sludge can be peel off easily from the filter cake
4 so the screen are easily cleaned and have a long working time
5 Mainly matching with belt type filter press vacuum rubber belt filter and vacuum horizontal belt filter
Polyester Square Hole Mesh Belt Product Introduction Advantage
1) High strength,standard plain weave ,uniform opening
2) Stand high working strength,durable,long work time
3) Resistance under 180 degrees
4) Waterproof
5) Shrink-Resistance
How to choose Polyester Square Hole Mesh Belt
polyester filter belt is widely used in Mineral industry -mining sieving, mineral separation gold benefication
Paper industry-paper pulps making, sulplate pulppacking and cardboard pulp
Dryer -Textile yarn Others -tailings disposal colliery food medicine etc
Polyester Square Hole Mesh Belt Packing detail
- We always use poly bag for the goods which ship by air, so that customer can save freight free
- Wooden case is the best for ocean shipment because it can effective avoid the damage during shipping
- There also have some customer request us to use the carton to packing their goods
- We can according to customer's requirement
-
