Woven Ss304 Chain Conveyor Belt For Automatic Bbq

Large Image : Woven Ss304 Chain Conveyor Belt For Automatic Bbq

Product Details:

Place of Origin:	china
Brand Name:	RK
Certification:	iso/sgs
Model Number:	custom

Payment & Shipping Terms:

Minimum Order Quantity:	3 square meters
Price:	$ 10-50 / sq m
Packaging Details:	wooden box
Delivery Time:	10work Day
Payment Terms:	L/C, D/A, T/T, D/P
Supply Ability:	10,000 square meters / 10 days

Contact Now

Detailed Product Description

Material:	Stainless Steel Wire	Application:	Woven Wire Mesh
Weave Style:	Plain Weave	Technique:	Perforated
Wire Diameter:	According To Your Requirement	Type:	Weave Wire Mesh
Highlight:	ss304 chain mesh belt , ss304 chain conveyor belt , automatic bbq chain conveyor belt

Chain Mesh Conveyor Belt ss304 for Automatic BBQ

Chain Mesh Conveyor Belt Description :

Simple yet durable structure.Large open areas with greater air circulation and fluid drainage.Welded or bending edge.Ideal for conveying lightweight products.High tensile strength with minimal stretch.Excellent resistance to high temperature.

Chain Mesh Conveyor Belt List

Specification :
Material	carbon steel, SUS 201 304 316
Wire diameter	1 to 3mm
Rod diameter	4 to 12 mm
Spiral wire pitch	3 to 20 mm
Chain pitch	19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized
Width	0.2m to 4m
Rod pitch	5 to 30 mm

Chain Mesh Conveyor Belt Categories:

1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.

Chain Mesh Conveyor Belt material :

1) Balanced weave,double balanced weave.
2) Conventional Weave,Compound Balanced Weave /cormel weave.
3) Flat wire belt,flat-flex belt,rod reinforced belt.
4) Ladder link belt,flex-link belt,chain driven belt.with upturned edges belt mesh.

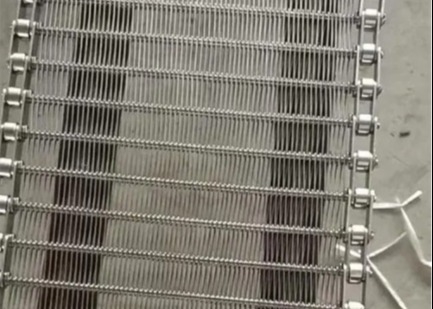

Woven Ss304 Chain Conveyor Belt For Automatic Bbq 0

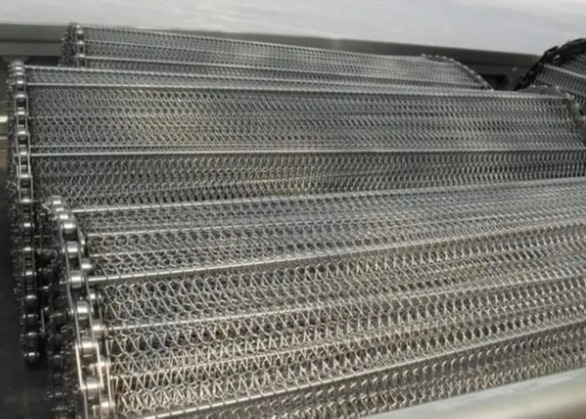

Woven Ss304 Chain Conveyor Belt For Automatic Bbq 1
