Product Details:
Payment & Shipping Terms:
|
| Features: | Non-revealed Sludge | Name: | Free Sample Polyester Mesh Belt Plain Weave Paper Mill Coal Washing Plant Dedicated |
|---|---|---|---|
| Color:: | White Blue | Size:: | 0.1-30m Long |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Durability: | Repeatable Application |
| High Light: | plain weave polyester mesh belt,coal washing plant polyester mesh belt,square hole polyester mesh conveyor belt |
||

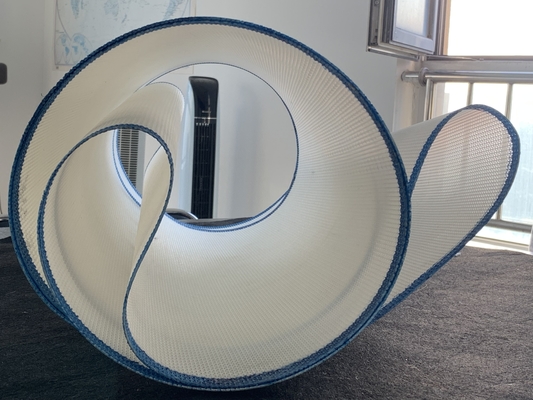

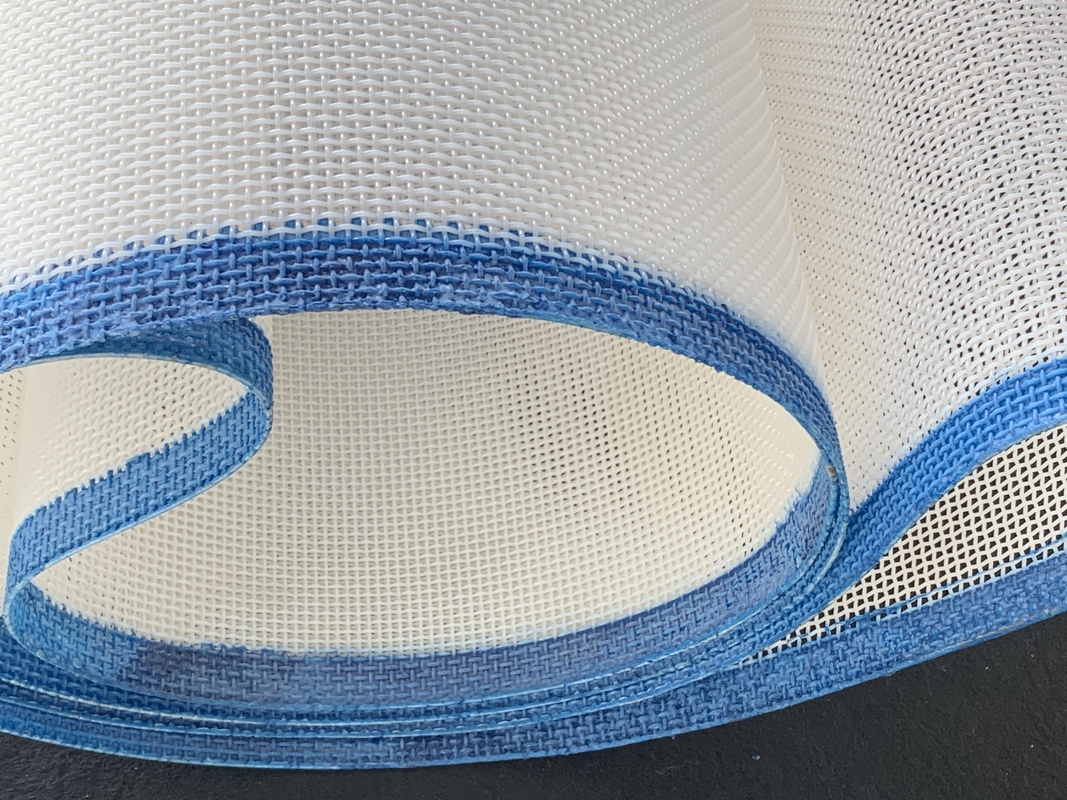

Free Sample Polyester Mesh Belt Plain Weave Paper Mill Coal Washing Plant Dedicated
Polyester Square Hole Mesh Belt Product Introduction
| Weaving Type | Thread Diameter(mm) | Density(No.s/cm) | Strength (N/cm) | Air Permeability(m³/m²h) | ||
| Warp | Weft | Warp | Weft | |||
| 2-shed plain weaving fabric | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 0.7 | 0.7 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 0.55 | 0.55 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 0.55 | 0.55 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 0.55 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 87500-8500 | |
| 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 0.3 | 0.4 | 22.0 | 14.5 | 1200 | 13500 | |
|
Product Name
|
Polyester Mesh Conveyor Belt
|
||
|
Material
|
100% polyester
|
||
|
Type
|
Plain Weave
|
||
|
Color
|
White/Blue
|
||
|
Mesh Aperture
|
1 x 1mm, 2 x 2mm, 4 x 4mm, 1.2 x 1.2mm, 800 x 800, 5 x 5mm etc
|
||
|
Features
|
High temperature resistance, abrasion resistance and aging resistance etc
|
||
|
Advantages
|
Larger air permeability, flat surface, good strength, long working time etc
|
||
|
Applications
|
Food Drying Conveyor, Paper Making and Paper Pulp, Wooden Industry
|
||
|
Matched filter machine
|
Food Dryer Conveyor Belt
|
||
|
Seam type
|
Spiral Seam/Pin Joint/Steel Joint/ Woven Edge
|
||
|
Size
|
Customized
|
||
|
Main markets
|
South Asia, North America, South Amercia, South Africa, Europe etc
|
||
Polyester Square Hole Mesh Belt Product Introduction Description
pharmaceutical ceramics and solid-liquid separation industries like sludge dehydration
horizontal belt washer, pulp-liquor separator and netting belt coal-washer
It has been extensively used in all kinds of industries such as printing and drying food
salt industry pharmaceutical environment protection process hides shoe-making clothing
pottery and other conveyable belt etc
Polyester Square Hole Mesh Belt Product Introduction Advantage
1.Has the acid and alkali resistance, wear resistance, high temperature resistant, long service life
2.With smooth surface, the tensile strength, permeability is good
3.Size length can be cut, and thus solve the problem of the influence because of the size is not accurate to use
4.Install easy to use, interface without imprint
1. wooden / polywood boxes + water proof plastic bag for sea
2. water proof plastic bag for air
3. as the customer requirements
