Product Details:
Payment & Shipping Terms:
|
| Brand Name: | R&K | Name: | Steel Card Interface Waste Water Treatment Sludge Dewatering Conveyor Dryer Belt |
|---|---|---|---|
| Color:: | White Blue And Red | Size:: | 1-50m |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Material: | 100% Polyester |
| High Light: | conveyor dryer sludge dewatering belt,steel card interface sludge dewatering belt,waste water treatment dryer mesh belt |
||

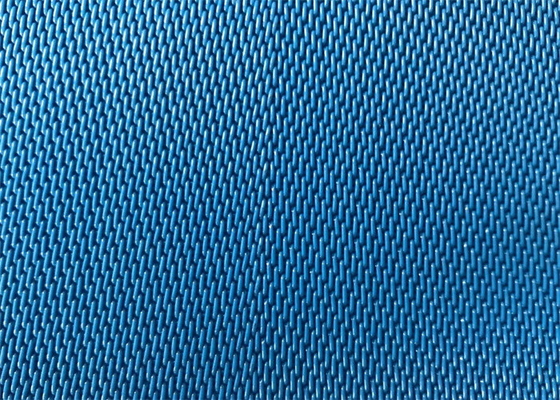

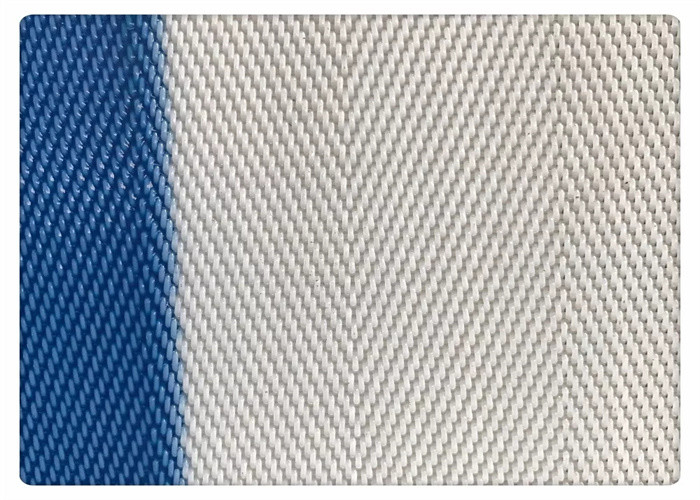

Steel Card Interface Waste Water Treatment Sludge Dewatering Conveyor Dryer Belt
Polyester Sludge Dewatering Belt Introduction
Polyester Sludge Dewatering Conveyor Belt water treatment screen is widely used in wastewater treatment
paper and tissue coal mining plants and jucie pressing of grapes fruits
| No |
Thread diameter |
Density (per/cm) |
Strength (N/cm) |
Water permeablility S/5L |
Weight Kg/m2 |
Thickness mm |
Gas permeability |
|||
| Warp | Weft | Warp | Weft | Surface | Jointing | |||||
| 2470 | 0.05 | 0.70 | 24 | 9 | 2000 | 900 | 56.4 | 1.23 | 1.90 | 6130 |
| 27708 | 0.05 | 0.70 | 28 | 8.5 | 2100 | 900 | 63 | 1.53 | 2.21 | 4120 |
| 22903 | 0.05 | 0.90 | 23 | 5.5 | 2000 | 900 | 48 | 1.40 | 1.90 | 6800 |
| 16903 | 0.70 | 0.90 | 17 | 4.5 | 2200 | 900 | 38.6 | 1.70 | 2.0 | 7920 |
| 121103 | 0.90 | 1.10 | 12.5 | 3.8 | 3600 | 900 | 32.4 | 1.60 | 2.60 | 8610 |
| 26808 | 0.05 | 0.80 | 27 | 8.5 | 2100 | 900 | 60.3 | |||
Polyester Sludge Dewatering Belt Date Sheet
| Weaving Type | Model |
Thread Diameter (mm) |
Air Permeability (m3/m2h) |
||
| Warp | Weft | filled with stuff | |||
| Large Loop | 4070 | 0.9 | 1.1 | 0.9x4 | 20000x500 |
| 0.9x5 | |||||
| Medium Loop | 3868 | 0.7 | 0.9 | 0.8x3 | 18500x500 |
| 0.8x4 | |||||
| Small Loop | 3252 | 0.52 | 0.7 | 0.68x3 | 15000x500 |
Polyester Sludge Dewatering Belt Features
| It has heat shaping |
| It has high beaking elongation tolerance |
| It has high temperature resistant under 180 degree |
| This fabric belt is widely used in all kinds of industries,such as printing |
| Polyester spiral link dryer fabric belt is also used in papermaking industry |
| 100% polyester monofilament |
Polyester Sludge Dewatering Belt Advantage
1 Good permeability air permeability
2 Non-revealed sludge
3 Acid-resisting alkali-resisting heat resistance(180 °C)
4 Because of their designing structure, the sludge can be peel off easily after pigeonhole
filter so the screen are easily cleaned and have a long working time
5 Therefore they are designed specially for sludge dehydration
