| Features: | Non-revealed Sludge | Name: | White Plain Weave Polyester Filter Linear Screen Square Hole Mesh Dryer Belt |
|---|---|---|---|
| Color:: | White Blue | Size:: | 0.1-30m Long |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Durability: | Repeatable Application |
| High Light: | repeatable dryer mesh belt,filter linear screen dryer mesh belt,repeatable polyester mesh conveyor belt |
||

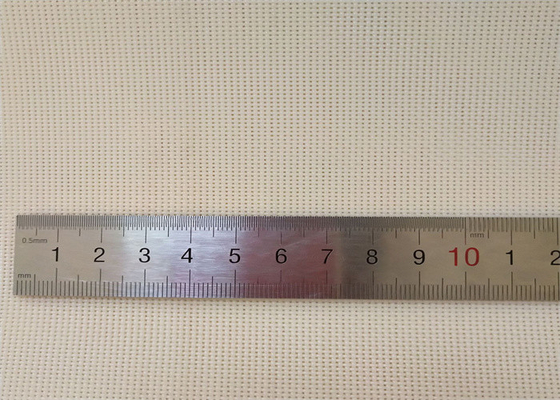

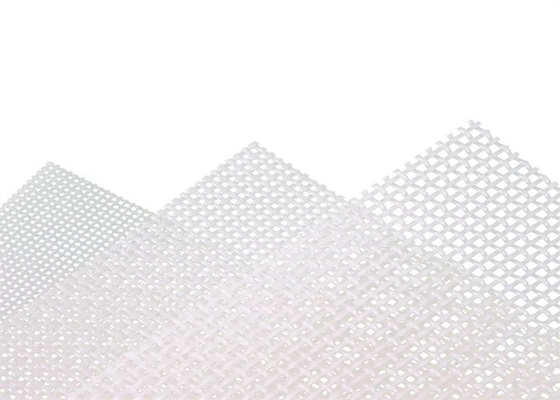

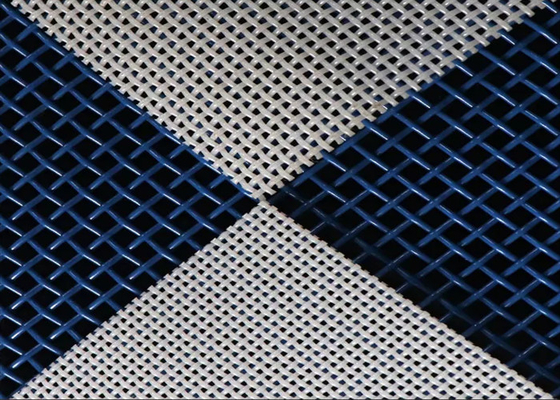

White Plain Weave Polyester Filter Linear Screen Square Hole Mesh Dryer Belt
Polyester Square Hole Mesh Belt Product Introduction
| Weaving Type | Thread Diameter(mm) | Density(No.s/cm) | Strength (N/cm) | Air Permeability(m³/m²h) | ||
| Warp | Weft | Warp | Weft | |||
| 2-shed plain weaving fabric | 0.7 | 0.8 | 4.7-5.0 | 4.8-5.0 | 940 | >20000 |
| 1.0 | 1.0 | 4.7-5.2 | 4.3-5.0 | 1600 | >15000 | |
| 0.7 | 0.7 | 8.0 | 7.0 | ≥1600 | 11000 | |
| 0.7 | 0.7 | 6.6-7.0 | 4.3-4.6 | 1100 | >15000 | |
| 0.55 | 0.55 | 7.5-8.0 | 8.5-9.0 | 850 | 850-6500 | |
| 0.45 | 0.45 | 10.0 | 8.6 | 1600 | 1600 | |
| 0.55 | 0.55 | 8.5-9.0 | 10-10.5 | 750 | >10000 | |
| 0.55 | 0.55 | 13.5 | 8.5 | 1800 | 6500 | |
| 3-shed plain weaving fabric | 0.55 | 0.6 | 10.0 | 9.0 | 1600 | 14000 |
| 0.9 | 0.9 | 7.8-8.0 | 5.0-5.5 | 2100 | 87500-8500 | |
| 0.7 | 0.8 | 8.0 | 8.0 | 1600 | 10000 | |
| 0.3 | 0.35 | 22.0 | 14.5 | 1200 | 13000 | |
| 0.3 | 0.4 | 22.0 | 14.5 | 1200 | 13500 | |
|
Product Name
|
Polyester Mesh Conveyor Belt
|
||
|
Material
|
100% polyester
|
||
|
Type
|
Plain Weave
|
||
|
Color
|
White/Blue
|
||
|
Mesh Aperture
|
1 x 1mm, 2 x 2mm, 4 x 4mm, 1.2 x 1.2mm, 800 x 800, 5 x 5mm etc
|
||
|
Features
|
High temperature resistance, abrasion resistance and aging resistance etc
|
||
|
Advantages
|
Larger air permeability, flat surface, good strength, long working time etc
|
||
|
Applications
|
Food Drying Conveyor, Paper Making and Paper Pulp, Wooden Industry
|
||
|
Matched filter machine
|
Food Dryer Conveyor Belt
|
||
|
Seam type
|
Spiral Seam/Pin Joint/Steel Joint/ Woven Edge
|
||
|
Size
|
Customized
|
||
|
Main markets
|
South Asia, North America, South Amercia, South Africa, Europe etc
|
||
Polyester Square Hole Mesh Belt Product Introduction Description
1 Polyester square hole mesh belt have the characteristics of good water permeability
2 air permeability and non-revealed sludge, acid-resisting and alkali-resisting
3 Because of their designing structure, the sludge can be peel off easily from the filter cake
4 so the screen are easily cleaned and have a long working time
5 Mainly matching with belt type filter press vacuum rubber belt filter and vacuum horizontal belt filter
Polyester Square Hole Mesh Belt Product Introduction Advantage
1) High strength,standard plain weave ,uniform opening
2) Stand high working strength,durable,long work time
3) Resistance under 180 degrees
4) Waterproof
5) Shrink-Resistance
