| Color: | White Blue | Name: | Polyester Dryer Mesh Belt For Belt Filter Press Machine |
|---|---|---|---|
| Material: | 100%polyester | Length: | 1-100meters |
| Width: | 0.2-3.2meters | Air Permeability: | 186-600CFM |
| Usage: | Sludge Dewatering, Juice, Dryer | Weight: | 1.7KGS/square Meter |
| MOQ: | 1 Square Meter | Type: | 22903 16903 |
| High Light: | 100% polyester mesh belt,filter press polyester mesh belt |
||

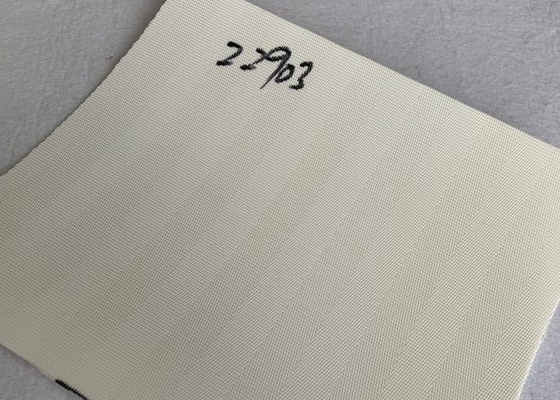

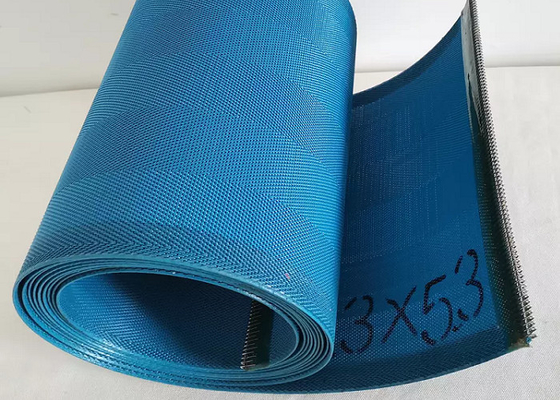

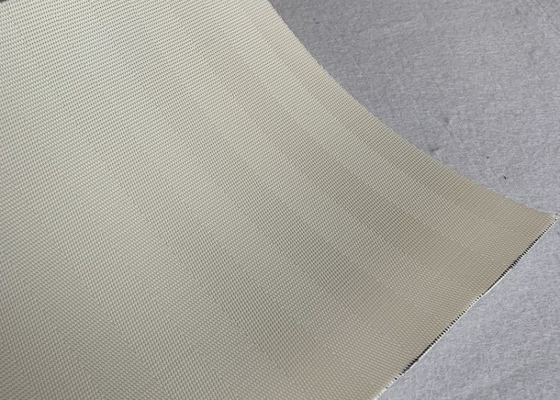

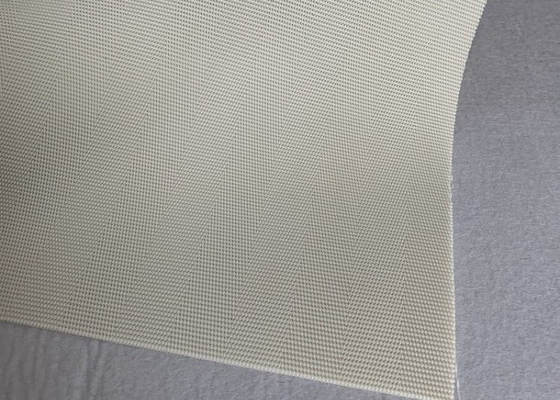

100% Polyester Sludge Fabric Press Dewatering Dryer Mesh Belt For Belt Filter Press Machine
Product Introduction:
Sludge Dewatering belt is also called Press-filter fabrics which is mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries.
The sludge dewatering belt have the characteristics of good water permeability, air permeability and non-revealed sludge,acid-resisting and alkali-resisting. Because of theirs designing structure, the sludge can be peel off easily from the filter cake, so the screen are easily cleaned and have a long working time. Mainly matching with belt type filter press, vacuum rubber belt filter and horizontal vacuum belt filter.
Specification sheet:
|
Type
|
Wire Diameter(mm) |
Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
Air Permeability m3/m2h |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
||||
| RK31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 2976 |
| RK26508 | 0.50 | 0.50 | 28 | 18.5 | 1600 | 900 | 1.20 | 1.5 | 2050 |
| RK2470 | 0.50 | 0.70 | 24 | 9 | 1600 | 650 | 1.23 | 1.90 | 7520 |
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 8480 |
| RK27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 4896 |
| RK26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 6080 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 7360 |
Applicant:
Mainly used in belt type filter press,
the rubber belt type vacuum filter,
horizontal vacuum belt filter.
Advantages:
Polyester sludge dewatering belt is made from mixed monofilaments and multi-filaments. It is strong and work stable.
Good permeability,high production efficiency,can change permeability of belts according to customer's requirement.
Lower percentage of moisture,easy to peel off filter cake.
Take high-viscosity polyester filaments as material,make products with good abrasive resistance and intensity.
Belt can be easily regenerated and reused.

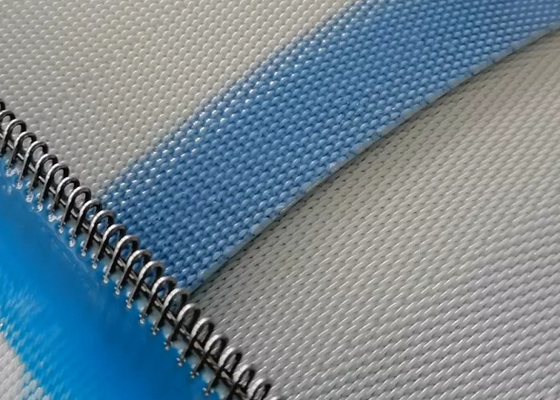

Choosing stainless steel clip joint for it,which makes it stronger and using long time
