Home ProductsCompound Balanced Belt

201 Stainless Steel Metal Wire Mesh Belt For Screws Convey

China Hebei Reking Wire Mesh Co.,Ltd certification
China Hebei Reking Wire Mesh Co.,Ltd certification
I alreay install the flat flex conveyor belt and works well. Good company with nice service and high quality and high reputation

—— Mervyn Roe

Chain Mesh Conveyor Belt quality is ok. One of our reliable supplier , goods are delivered in time and nice package.

—— Dina Chek

Perfect Flat Wire Conveyor Belt we have purchased, low cost and good service.

—— Bahram Vand

I'm Online Chat Now

201 Stainless Steel Metal Wire Mesh Belt For Screws Convey

201 Stainless Steel Metal Wire Mesh Belt For Screws Convey
201 Stainless Steel Metal Wire Mesh Belt For Screws Convey
video play

Large Image :  201 Stainless Steel Metal Wire Mesh Belt For Screws Convey

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Compound Balanced Wire Mesh Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Product Name: 201 Stainless Steel Metal Wire Mesh Belt For Screws Convey Belt Material: 201 304 316 314 310 Stainless Steel
Wire Diameter: 1-3mm Spiral Pitch: 5-15mm
Rod Pitch: 10-25mm Belt Width: 100-4000mm
Advantage: High Density Application: Screws Convey
High Light:

201 stainless steel wire mesh belt

,

screws convey wire mesh belt

,

screws convey compound balanced belt

201 Stainless Steel Metal Wire Mesh Belt For Screws Convey





Wire Mesh Belt Introduction

  1. Compound balanced wire mesh conveyor belt is one of the most versatile and widely used woven metal belt, thanks to its characteristics of true travel, good flexibility, excellent strength-to-weight ratio, flat surface, and minimum maintenance. This metal wire belt is also available as a Double Balanced Belt construction, which is an assembly of pairs of right and left hand spirals properly spaced by crimped connectors. Double Balanced Belts have a very dense meshe that may require a straight connector.
  2. Compound balanced wire mesh conveyor belt is a variant of the double helix mesh belt. It consists of left-handed and right-handed meshes in turn to form a very tight and flat mesh surface, with a straight shaft and a crankshaft respectively.
  3. Straight rod: It is made up of alternating left and right mesh strips connected by a straight string. This series of mesh belts have relatively dense meshes and even mesh spacing, which makes the mesh belt walk smoothly, so it is very suitable for conveying small products, such as screws, nails, Bolts and other products with small volume but relatively heavy weight.
  4. Crimped rod: Concentrates the various advantages of the gold-stone wire woven mesh belt. Because of the deep-bending string, each spiral metal wire can be fixed to the correct position, so the deformation and extension of the mesh belt are minimized.

Wire Mesh Belt Advantages



    Ideal for bakeries and snake food process

    Can sustain high and low temperature conditions

    Provide a uniform heat transfer



Wire Mesh Belt Usage



Food processing:

Tight spiral wire mesh belt is widely used in Cookie Baking, Tortilla Baking, Bakery Belts, Food Processing, Crackers, Biscuits and popular with all forms of continous baking applications of baked goods including cracker and cookie baking.

Industry applications:

Heat Treating of small parts, Hardening, Tempering, Quenching. It's great for for handling small parts in heat treating and quench tank operations. The smooth surface is ideal for transferring and conveying small parts drying.



Wire Mesh Belt Drawing



Please supply these detail size showing in drawing, so that we can give you offer according to your demands.

201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 0

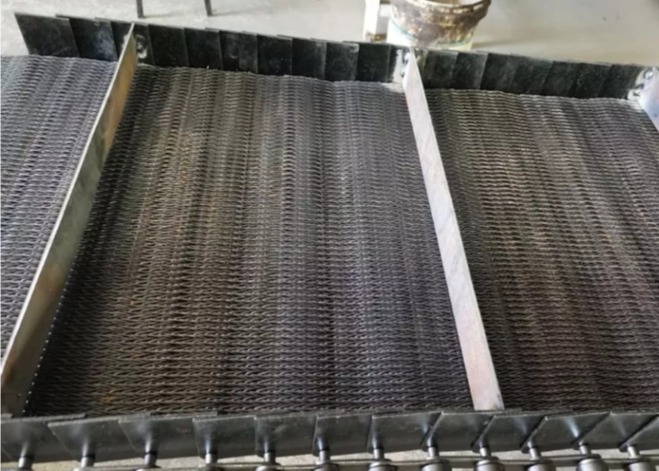

 Wire Mesh Belt Picutures



201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 1201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 2



Wire Mesh Belt Package And Usage



201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 3201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 4

Wire Mesh Belt Workshop



201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 5201 Stainless Steel Metal Wire Mesh Belt For Screws Convey 6
