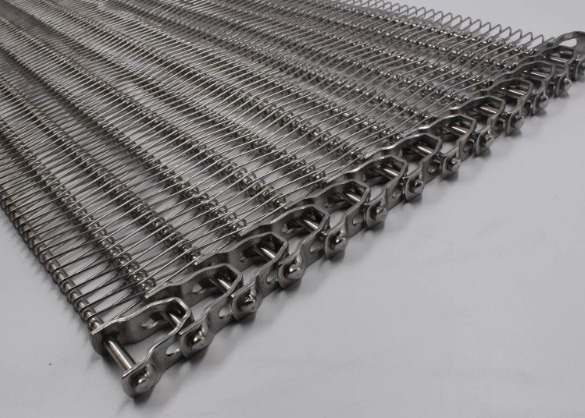

Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables

Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables
Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables

Large Image :  Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Chain Weave Mesh Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Product Name: Stainless Steel Chain Weave Mesh Conveyor Belt Keyword: Chain Weave Mesh Conveyor Belt
Material: 304 Stainless Steel Width: 1m
Spiral Pitch: 10mm Rod Pitch: 15mm
Wire Diameter: 1.5mm Support Rod Dia: 5mm
Chain Pitch: 50.8mm Package: Plywood Box
High Light:

blanching vegetables chain mesh conveyor belt

,

201 stainless chain mesh conveyor belt

,

stainless steel weave chain wire mesh conveyor belt

Stainless Steel Chain Weave Mesh Conveyor Belt





Chain Weave Mesh Conveyor Belt Description

  1. Chain weave mesh conveyor belt  is postive driven and straight running belt . It is driven by stainless steel or plastic sprockets . Chain mesh conveyor  belt is mainly used for heavy product transmission . It has flat and strong mesh belt surface, so that it is able to afford to convey heavy things .  One important thing of the belt is the speicial structure allows light force of the surface , which makes the belt long life use time .
  2. Chain weave mesh conveyor belt consists of interwoven successive spiral wire , which looks like chain link fencing . This universal conveyor belt is the simplest wire belt but functional and economical in conveying light-duty applications.
  3. Produced by the program controlled mesh weaving machine, the belt surface is smooth, tough, durable and not easy to get deformed. In this case, it can bear more heavier pressure and stress. The obvious performance of the spiral mesh belt is turning and it is able to go 180 degrees freely with stable running. The mesh belt is convenient to disassemble, wash, and maintain. Side guard is available as per clients’ request.



Chain Weave Mesh Conveyor Belt Advantages



1 . Chain wire mesh conveyor belt has simple structure , so it is can produce easily and very economic for user .

2 . Chain wire mesh conveyor belt has the flat and powerful belt surface, it makes the belt can afford heavy things and long life use time .

3 . Chain wire mesh conveyor belt has many material grade and it makes the belt can be used in many different area , such as food grade (304 316 316L stainless steel ) Industrial field ( low carbon steel high carbon steel and other material ) .



Chain Weave Mesh Conveyor Belt Datas



material Low carbon steel high carbon steel stainless steel 304 201 316 316 or 310 so on .
type Flat wire balance weave
width 50cm-5m
length at least 3 meters or we can do small samples for you to check the quality .
Common chain type 2062 or do the chain as the model you want




Chain Weave Mesh Conveyor Belt Application



1 . Machine for blanching vegetables and potatoes ,

2 . Dryers, fryers and baking ovens for french fries and snacks

3 . Cooling and freezing tunnels for potatoes, french fries,  vegetables, meat, fish and bakery products ,

4 . Industrial washing and drying tunnels .



Chain Weave Mesh Conveyor Belt Quality Control

Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables 0Weave 201 Stainless Steel Chain Mesh Conveyor Belt Blanching Vegetables 1
