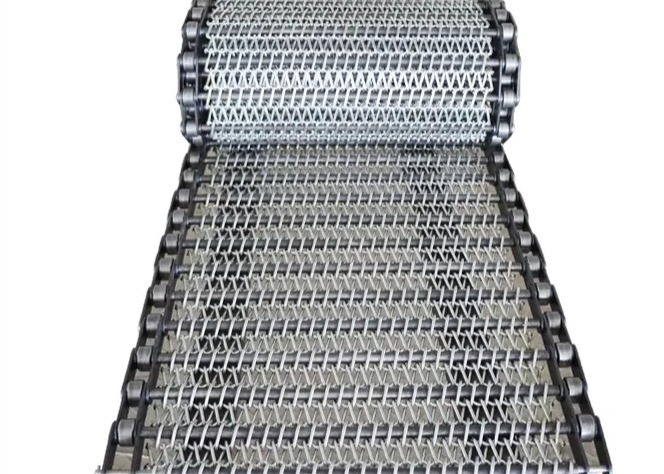

Sus304 Stainless Mesh Conveyor Belt For Chicken Freezing Machine

Sus304 Stainless Mesh Conveyor Belt For Chicken Freezing Machine
Sus304 Stainless Mesh Conveyor Belt For Chicken Freezing Machine
video play

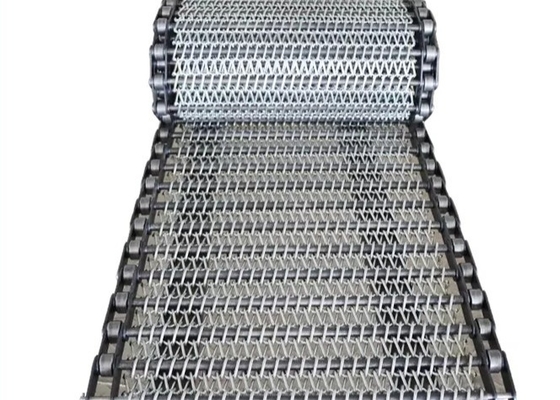

Large Image :  Sus304 Stainless Mesh Conveyor Belt For Chicken Freezing Machine

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Chain Link Wire Mesh Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Product Name: SUS304 Chain Link Wire Mesh Belt Used For Chicken Freezing Machine Keyword: Chain Link Wire Mesh Belt
Material: 304 Stainless Steel Width: 1m
Chain Pitch: 50.8mm Rod Pitch: 10mm
Spiral Pitch: 7mm Wire Diameter: 1.5mm
Support Rod Diameter: 5mm Main Feature: Food Grade Material
High Light:

sus304 stainless mesh conveyor belt

,

chicken freezing stainless mesh conveyor belt

,

mesh type conveyor belt sus304

SUS304 Chain Link Wire Mesh Belt Used For Chicken Freezing Machine





Chain Link Wire Mesh Belt Introduction

  1. Chain mesh conveyor belt is a mesh belt conveyors are mainly used for heavy transmissions . For example , transferring products through tempering or cooling ovens or when hot products are handled and conveyed . The chain belts are usually made from either steel or stainless steel with varying degrees of weave and pitch position .
  2. Chain link wire mesh belt is a kind of machinery that uses static friction to drive materials in a continuous way. Using it, materials can be transported on a certain conveying line from the initial feeding point to the final unloading point to form a material conveying process. It can transport both broken and scattered materials and finished goods. In addition to pure material transportation, it can also cooperate with the requirements of the technological process in the production process of various industrial enterprises to form a rhythmic flow operation transportation line. The mesh belt materials used in different environments are also different, such as carbon steel, galvanized iron wire, spring steel, etc. Different application working environments determine the selection of materials.
Keywords chain link wire mesh belt
Material  316 stainless steel
Size  customized
Package  plastic film and plywood box
After sales service life time online video support



Chain Link Wire Mesh Belt Features


Economic belt : Chain link wire mesh belt structure is sample and do not need cost much but has widely usage ,

Flat and smooth surface : Chain link wire mesh belt has same hole size and also have chain edge, so it is very smooth and work well .

Good load ability Chain link wire mesh belt is made of stainless steel and also have chain edge , so it can load many not such heavy goods .

Positive drive without creeping, driven by sprockets.
Large open area enables washing or drying of products on the chainmeshbelt
It is not suitable for transportation of products, which leave residues on the chainbelt



Chain Link Wire Mesh Belt Usage



It is widely used in the electronics industry, the solidification of the circuit board, solid fusion, drying, reflow
soldering. Cap industry of plastic drying; for chocolate, biscuits, fish baked, frozen and dry, with B network edge can be used in food industry chain drive.



Chain Link Wire Mesh Belt Drawing



Please supply these detail size and then i can give you accurate offer.

Sus304 Stainless Mesh Conveyor Belt For Chicken Freezing Machine 0
