| Material: | Stainless Steel Woven Mesh | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Screen |
| Technique: | Woven | Feature: | Acid Resistant |
| Product Name: | Satinless Steel Dutch Woven Wire Mesh 5 Micron 317*2100 Mesh With High Temperature Resistant | Key Word: | 304 Stainless Steel Dutch Mesh |
| High Light: | 5 micron stainless steel woven wire mesh,317*2100 stainless steel woven wire mesh,high temperature resistant stainless woven mesh |
||

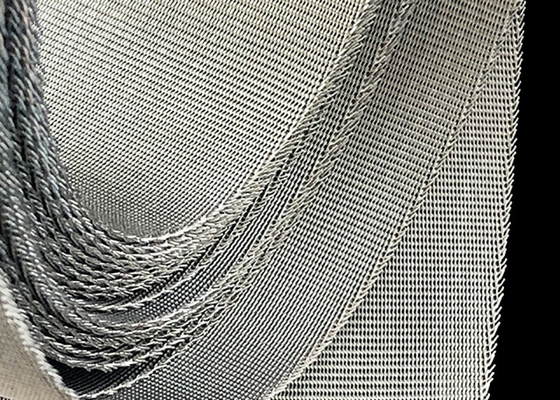

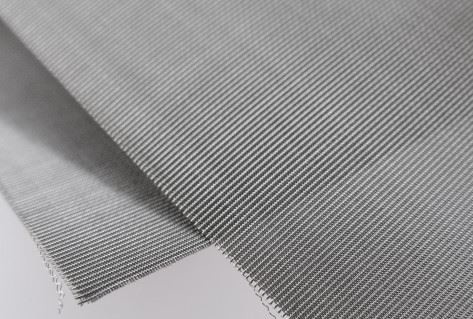

Satinless steel Dutch Woven Wire Mesh 5 Micron 317*2100 mesh with high temperature resistant
Plain weave woven stainless steel wire mesh features:
"Zero" grid. The line diameter of the warp is larger than the weft.
Each latitude is close to each other.
High precision and flow rate.
It will filter more solid particles than square and rectangular holes.
Application of the Dutch mesh
Dutch woven mesh is mainly used for liquid and gas fluids, vacuum and pressure filtration. Ordinary Dutch woven mesh for separating solids and removing liquid filtration, such as cleaning fuel or hydraulic fluids, or for water treatment chemistry, mining
Feature of the Dutch mesh
• Very thick and stronger
• Fine opening for improved filtration efficiency and quality
• Higher mechanical stability.
• Used as filter cloth
• Precise tolerance
Parameter of Dutch mesh
| Material | 304 stainless steel dutch mesh |
| MOQ | 1meter |
| Aperture | 5 micron |
| Feature | acid resistant |
| Technique | woven |
|
Plain weave Dutch mesh |
||||
|
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
|
Width:1m-1.6m |
||||
