Product Details:
Payment & Shipping Terms:
|
| Product Name: | Durable Alkali Resistance 304 Stainless Steel Reverse Dutch Woven Wire Mesh | Material: | 304 Stainless Steel |
|---|---|---|---|
| Weave Style: | Plain Weave Dutch Mesh | Width: | 1m |
| Length: | 30m | Diameter: | 0.9*0.71- 0.025*0.015 |
| Usage: | Plastic Extruder | Feature: | Alkali Resistance |
| High Light: | alkali resistance ss woven wire mesh,reverse dutch ss woven wire mesh,stainless steel woven wire 5 mesh |
||

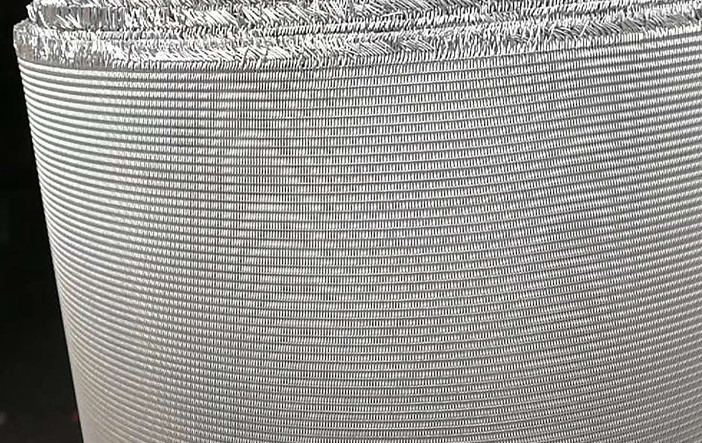

Durable Alkali Resistance 304 Stainless Steel Reverse Dutch Woven Wire Mesh
The reverse Dutch woven wire mesh is similar to the Dutch woven wire mesh.
| The same material | stainless steel wire or brass wire. |
| Wire diameters for two sizes | the lines in one direction are thinner and the lines in the other direction are thicker. |
| Weaving type | plain weave and twill weave |
The reverse Dutch woven wire mesh is different from the Dutch woven wire mesh.
Line direction.
Dutch woven wire mesh. A thinner wire in the warp direction and a thinner wire in the direction of the weft.
Reverse Dutch woven wire mesh. Thicker wire in the weft direction and thinner wire in the warp direction
Product Feature
The reverse Dutch woven mesh is another product designed for filtration. It is mainly made of stainless steel wire and has chemical resistance, alkali resistance and acid resistance, rust and corrosion resistance. It ensures long-lasting filtering performance during use. Reverse Dutch weaving is also available for brass wire, which also has chemical stability for filtration.
Product Application
• Plastic, rubber, oil industry filters.
• High-strength warp for automatic screen changers used in the plastic extrusion industry.
• Wipe the edges after cutting to help track the automatic screen changer.
• Plasma and laser cutting parts help prevent edge line wear.
• 100% inspection of wire cloth for critical applications such as sand screens and aerospace applications.

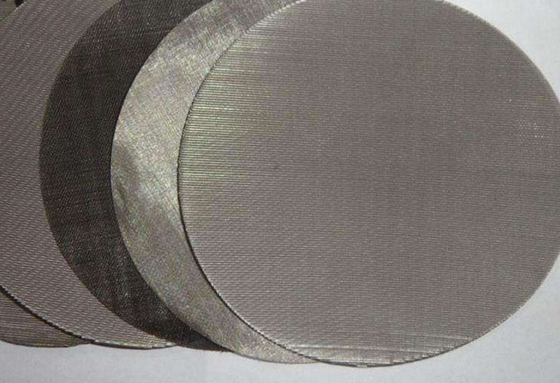

•Two different sizes of wire diameters, stainless steel wire or brass wire are woven into a reverse Dutch woven wire mesh. It is widely used as a filter disc or other filtration products in petrochemical, aerospace and other fields.
Product parameters
| Reverse Dutch Weave Belts | |||
| Weave of Type | Mesh/Inch | Wire Diameter mm |
Nominal Micron μm |
| TRD | 48 x 10 | 0.50 X 0.50 | 400 |
| TRD | 72 x 15 | 0.50 x 0.50 | 300 |
| TRD | 132 x 14 | 0.35 x 0.45 | 200 |
| TRD | 132 x 18 | 0.35 x 0.44 | 180 |
| TRD | 152 x 24 | 0.27 x 0.40 | 160 |
| TRD | 152 x 30 | 0.27 x 0.30 | 130 |
| RPD | 250 x 40 | 0.15 x 0.25 | 90 |
| RPD | 260 x 40 | 0.15 x 0.27 | 125 |
| RPD | 280 x 70 | 0.089 x 0.21 | 45 |
| RPD | 325 x 39 | 0.13 x 0.24 | 55 |
| RPD | 600 x 125 | 0.043 x 0.12 | 20 |
| RPD | 720 x 150 | 0.035 x 0.107 | 15 |
