| Material: | 304 / 316 Stainless Steel | Weave Style: | Plain Weave Dutch Mesh |
|---|---|---|---|
| Width: | 1m | Length: | 30m |
| Diameter: | 0.9*0.71- 0.025*0.015 | Usage: | Plastic Extruder |
| Product Name: | Stainless Steel Dutch Mesh | ||
| High Light: | 30x1m stainless steel woven wire mesh,plain stainless steel woven wire mesh,316 metal woven wire mesh |
||

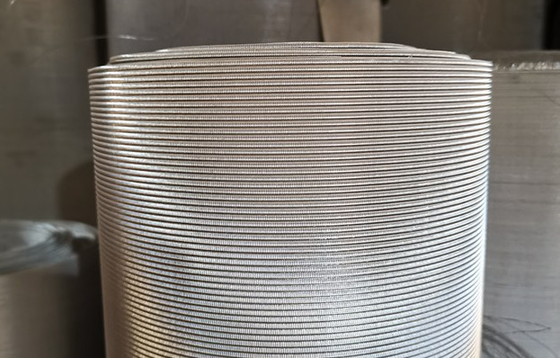

Acid Resistance Stainless Steel 316 Plain Dutch Woven Filter Wire Mesh
Product description
Dutch woven mesh can filter a variety of materials under acid, alkali and strong pressure. It is also widely used in aerospace, metallurgy, chemical and other industries. Fuel filters and vacuum filters are also important functions.
| Product name | Acid Resistance Stainless Steel 316 Plain Dutch Woven Filter Wire Mesh |
| Type | Stainless steel Dutch Woven wire mesh |
| Diameter | 0.015 - 0.9mm |
| Weave Style | Plain DutchWeave,Twill DutchWeave |
| Hole Size | 3 -347 micorn |
| Material | 304, 304L, 316, 316L, 310s,etc |
| Mesh Count | 7-3500 Mesh |
| Usage | Protection mesh,filter |
| Color | Silver |
| Size | Customized |
| Sample | Avaliable |
| Packing | Individually packed in waterproof plastic bags |
| MOQ | 1 meters |
| Delivery Tim | 8-14 days |
| Processing Service | Decoiling |
| Length | 30m/roll |
| Width | 1.0m |
| Weaving | plain weave stainless steel dense mesh (plain-dense), twill weave stainless steel dense mesh (twill-dense), bamboo flower woven stainless steel dense mesh, contrast woven stainless steel dense mesh (also known as contrast mat type mesh conveyor belt ) |
| Processing Service | Plain Dutch Weave: Plain weave is similar to row weave. The difference is that the warp of this woven mesh is thicker than the weft. The weft threads are closely spaced together to form conical or wedge-shaped openings |
| Package | carton |
| Application | Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grill nets, vents, building and construction nets, craft paper, decorative nets, fan hoods, filtering liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water |
Product Feature
1. The mesh surface is smooth, high hardness, continuous mesh, no deformation.
2. The advantages of high temperature resistance, corrosion resistance, flexible netting, etc.
3. It has excellent filtering performance, good filtering precision, high load strength and low temperature resistance.
Product Specification
| Mesh (mesh/inch) Warp×Weft) |
Warp×Weft) mm |
Aperture Size (um) |
Effective section rate (%) |
Weight (kg/m2) |
Thickness (mm) |
| 7×,40 | 0,9×,0,71 | 347 | 14.3 | 6.65 | 2.32 |
| 7×,44 | 0,71×,0,63 | 319 | 14.2 | 5.55 | 1.97 |
| 8×,45 | 0,8×,0,6 | 310 | 15.5 | 5.7 | 2 |
| 8,5×,60 | 0,63×,0,45 | 296 | 20.3 | 4.16 | 1.53 |
| 8×,85 | 0,45×,0,315 | 275 | 27.3 | 2.73 | 1.08 |
| 10×,90 | 0,45×,0,28 | 249 | 29.2 | 2.57 | 1.01 |
| 10×,76 | 0,5×,0,355 | 248 | 21.8 | 3.24 | 1.21 |
| 12×,86 | 0,45×,0,315 | 211 | 20.9 | 2.93 | 1.08 |
| 12×,64 | 0,56×,0,4 | 16 | 3.89 | 1.36 | |
| 12,5×,76 | 0,45×,0,355 | 192 | 15.9 | 3.26 | 1.16 |
| 14×,100 | 0,40×,0,28 | 182 | 20.3 | 2.62 | 0.96 |
| 14×,110 | 0,355×,0,25 | 177 | 22.2 | 2.28 | 0.855 |
| 14×,76 | 0,45×,0,355 | 173 | 14.3 | 3.33 | 1.16 |
| 16×,100 | 0,4×,0,28 | 160 | 17.7 | 2.7 | 0.96 |
| 17×,120 | 0,355×,0,224 | 155 | 22.4 | 2.19 | 0.803 |
| 16×,120 | 0,28×,0,224 | 145 | 19.2 | 1.97 | 0.728 |
| 20×,140 | 0,315×,0,20 | 133 | 21.5 | 0.715 | |
| 20×,170 | 0,25×,0,16 | 130 | 28.9 | 1.56 | 0.57 |
| 20×,110 | 0,355×,0,25 | 126 | 15.3 | 2.47 | 0.855 |
| 22×,120 | 0,315×,0,224 | 115 | 15.5 | 2.2 | 0.763 |
| 25×,140 | 0,28×,0,2 | 100 | 15.2 | 1.96 | 0.68 |
| 24×,110 | 0,355×,0,25 | 97 | 11.3 | 2.6 | 0.855 |
| 28×,150 | 0,28×,0,18 | 92 | 15.9 | 1.87 | 0.64 |
| 30×,150 | 0,25×,0,18 | 82 | 13.5 | 1.79 | 0.61 |
| 30×,140 | 0,315×,0,20 | 77 | 11.4 | 2.21 | 0.715 |
| 35×,190 | 0,224×,0,14 | 74 | 16.8 | 1.47 | 0.504 |
| 35×,170 | 0,224×,0,16 | 69 | 12.8 | 1.62 | 0.544 |
| 40×,200 | 0,18×,0,135 | 63 | 15.4 | 1.24 | 0.43 |
| 45×,250 | 0,16×,0,11 | 56 | 15.2 | 1.11 | 0.384 |
| 50×,300 | 0,16×,0,09 | 55 | 20 | 0.98 | 0.34 |
| 60×,500 | 0,14×,0,055 | 51 | 34.1 | 0.7 | 0.252 |
| 50×,270 | 0,14×,0,10 | 50 | 15.2 | 0.98 | 0.34 |
| 70×,930 | 0,10×,0,03 | 30 | 36.2 | 0.39 | 0.16 |
| 65×,390 | 0,125×,0,071 | 42 | 19.1 | 0.78 | 0.267 |
| 60×,300 | 0,14×,0,09 | 41 | 14.1 | 0.96 | 0.32 |
| 80×,700 | 0,125×,0,04 | 40 | 38.1 | 0.6 | 0.205 |
| 60×,270 | 0,14×,0,1 | 39 | 11.2 | 1.03 | 0.34 |
| 77×,560 | 0,14×,0,05 | 38 | 27.5 | 0.74 | 0.24 |
| 80×,600 | 0,1×,0,045 | 37 | 29.8 | 0.53 | 0.19 |
| 70×,390 | 0,112×,0,071 | 16.3 | 0.74 | 0.254 | |
| 65×,750 | 0,10×,0,036 | 36 | 37.1 | 0.43 | 0.172 |
| 70×,340 | 0,125×,0,08 | 35 | 13.2 | 0.86 | 0.285 |
| 80×,430 | 0,125×,0,063 | 32 | 16.6 | 0.77 | 0.251 |
| 100×,1200 | 0,063×,0,023 | 23 | 37.6 | 0.27 | 0.109 |
| 118×,750 | 0,063×,0,036 | 21.5 | 0.38 | 0.135 |
