| Product Name: | 8 × 62 Mesh 304 Stainless Steel Twill Plain Dutch Weave Woven Wire Mesh | Type: | Dutch Mesh |
|---|---|---|---|
| Feature: | Acid Resistant | Hole Shape: | Square Shape |
| Application: | Screen | Technique: | Woven |
| Material: | Stainless Steel Woven Mesh | Mesh Count: | 8 × 62 Mesh |
| High Light: | twill stainless steel woven wire cloth,304 stainless steel woven wire cloth,stainless steel woven wire 62 mesh |
||

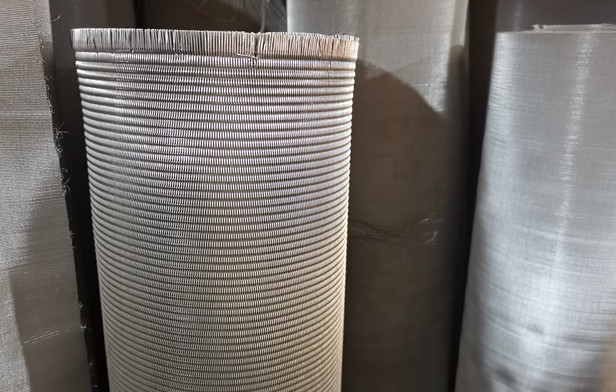

8 × 62 Mesh 304 Stainless Steel Twill Plain Dutch Weave Woven Wire Mesh
Description of stainless steel Dutch woven wire mesh
The scientific name of the stainless steel mat mesh is dense mesh, and it is also called Helan cloth in the south of the Yangtze River or abroad. It is woven with stainless steel wire.
| Product name | 8 × 62 Mesh 304 Stainless Steel Twill Plain Dutch Weave Woven Wire Mesh |
| Type | Stainless steel Dutch Woven wire mesh |
| Diameter | 0.015 - 0.9mm |
| Weave Style | Plain DutchWeave,Twill DutchWeave |
| Hole Size | 3 -347 micorn |
| Material | 304, 304L, 316, 316L, 310s,etc |
| Mesh Count | 7-3500 Mesh |
| Usage | Protection mesh,filter |
| Color | Silver |
| Size | Customized |
| Sample | Avaliable |
| Packing | Individually packed in waterproof plastic bags |
| MOQ | 1 meters |
| Delivery Tim | 8-14 days |
| Processing Service | Decoiling |
| Length | 30m/roll |
| Width | 1.0m |
Application of stainless steel Dutch wire mesh
Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grill nets, vents, building and construction nets, craft paper, decorative nets, fan hoods, filtering liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water
Feature of the stainless steel Dutch wire mesh
For filters or sieves, such as fuel filters, vacuum filters, cast film filters, sewage treatment;
Serving petroleum, aerospace, metallurgy, food, pharmaceutical and other industries;
Conveyor belts for washing machines, dryers and sludge presses.
Parameters of stainless steel Dutch mesh
| Mesh (mesh/inch) Warp×Weft) |
Warp×Weft) mm |
Aperture Size (um) |
Effective section rate (%) |
Weight (kg/m2) |
Thickness (mm) |
| 7×,40 | 0,9×,0,71 | 347 | 14.3 | 6.65 | 2.32 |
| 7×,44 | 0,71×,0,63 | 319 | 14.2 | 5.55 | 1.97 |
| 8×,45 | 0,8×,0,6 | 310 | 15.5 | 5.7 | 2 |
| 8,5×,60 | 0,63×,0,45 | 296 | 20.3 | 4.16 | 1.53 |
| 8×,85 | 0,45×,0,315 | 275 | 27.3 | 2.73 | 1.08 |
| 10×,90 | 0,45×,0,28 | 249 | 29.2 | 2.57 | 1.01 |
| 10×,76 | 0,5×,0,355 | 248 | 21.8 | 3.24 | 1.21 |
| 12×,86 | 0,45×,0,315 | 211 | 20.9 | 2.93 | 1.08 |
| 12×,64 | 0,56×,0,4 | 16 | 3.89 | 1.36 | |
| 12,5×,76 | 0,45×,0,355 | 192 | 15.9 | 3.26 | 1.16 |
| 14×,100 | 0,40×,0,28 | 182 | 20.3 | 2.62 | 0.96 |
| 14×,110 | 0,355×,0,25 | 177 | 22.2 | 2.28 | 0.855 |
| 14×,76 | 0,45×,0,355 | 173 | 14.3 | 3.33 | 1.16 |
| 16×,100 | 0,4×,0,28 | 160 | 17.7 | 2.7 | 0.96 |
| 17×,120 | 0,355×,0,224 | 155 | 22.4 | 2.19 | 0.803 |
| 16×,120 | 0,28×,0,224 | 145 | 19.2 | 1.97 | 0.728 |
| 20×,140 | 0,315×,0,20 | 133 | 21.5 | 0.715 | |
| 20×,170 | 0,25×,0,16 | 130 | 28.9 | 1.56 | 0.57 |
| 20×,110 | 0,355×,0,25 | 126 | 15.3 | 2.47 | 0.855 |
| 22×,120 | 0,315×,0,224 | 115 | 15.5 | 2.2 | 0.763 |
| 25×,140 | 0,28×,0,2 | 100 | 15.2 | 1.96 | 0.68 |
| 24×,110 | 0,355×,0,25 | 97 | 11.3 | 2.6 | 0.855 |
| 28×,150 | 0,28×,0,18 | 92 | 15.9 | 1.87 | 0.64 |
| 30×,150 | 0,25×,0,18 | 82 | 13.5 | 1.79 | 0.61 |
| 30×,140 | 0,315×,0,20 | 77 | 11.4 | 2.21 | 0.715 |
| 35×,190 | 0,224×,0,14 | 74 | 16.8 | 1.47 | 0.504 |
| 35×,170 | 0,224×,0,16 | 69 | 12.8 | 1.62 | 0.544 |
| 40×,200 | 0,18×,0,135 | 63 | 15.4 | 1.24 | 0.43 |
| 45×,250 | 0,16×,0,11 | 56 | 15.2 | 1.11 | 0.384 |
| 50×,300 | 0,16×,0,09 | 55 | 20 | 0.98 | 0.34 |
| 60×,500 | 0,14×,0,055 | 51 | 34.1 | 0.7 | 0.252 |
| 50×,270 | 0,14×,0,10 | 50 | 15.2 | 0.98 | 0.34 |
| 70×,930 | 0,10×,0,03 | 30 | 36.2 | 0.39 | 0.16 |
| 65×,390 | 0,125×,0,071 | 42 | 19.1 | 0.78 | 0.267 |
| 60×,300 | 0,14×,0,09 | 41 | 14.1 | 0.96 | 0.32 |
| 80×,700 | 0,125×,0,04 | 40 | 38.1 | 0.6 | 0.205 |
| 60×,270 | 0,14×,0,1 | 39 | 11.2 | 1.03 | 0.34 |
| 77×,560 | 0,14×,0,05 | 38 | 27.5 | 0.74 | 0.24 |
| 80×,600 | 0,1×,0,045 | 37 | 29.8 | 0.53 | 0.19 |
| 70×,390 | 0,112×,0,071 | 16.3 | 0.74 | 0.254 | |
| 65×,750 | 0,10×,0,036 | 36 | 37.1 | 0.43 | 0.172 |
| 70×,340 | 0,125×,0,08 | 35 | 13.2 | 0.86 | 0.285 |
| 80×,430 | 0,125×,0,063 | 32 | 16.6 | 0.77 | 0.251 |
| 100×,1200 | 0,063×,0,023 | 23 | 37.6 | 0.27 | 0.109 |
| 118×,750 | 0,063×,0,036 | 21.5 | 0.38 | 0.135 |
8 × 62 Mesh
