Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Density 316 211 Micron Dutch Stainless Steel Woven Wire Mesh | Type: | Dutch Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Screen |
| Technique: | Woven | Feature: | Fuel Filter |
| Material: | Stainless Steel 304 ,316 | Keywords: | Stainless Steel Dutch Mesh |
| High Light: | 316 stainless steel woven wire mesh,2.03mm stainless steel woven wire mesh,fuel filter plain dutch weave mesh |
||

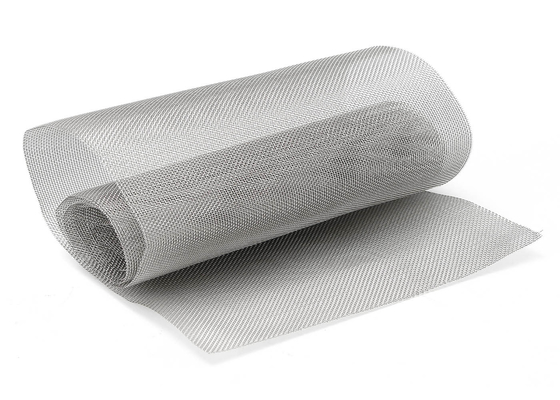

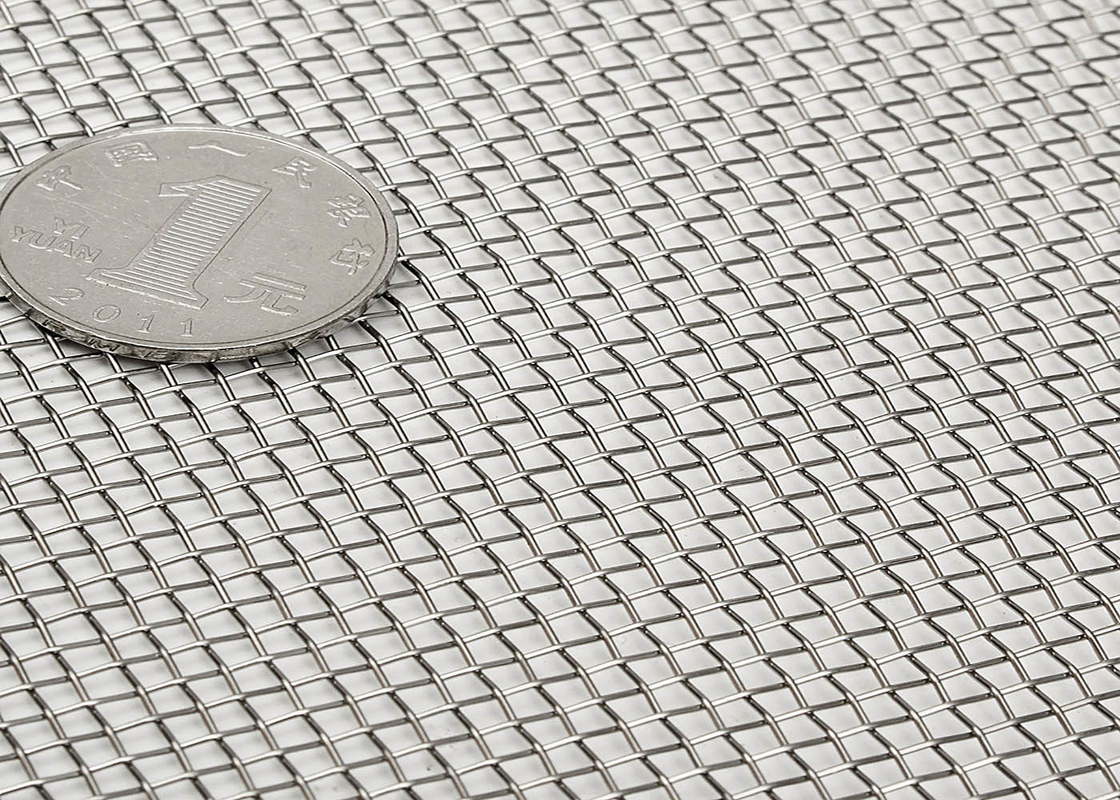

High Density 316 211 Micron Dutch Stainless Steel Woven Wire Mesh
Description of stainless steel Dutch woven wire mesh
Dutch wire mesh is one of the most popular fine mesh sieves with mesh sizes from 1 x 1 to 500 x 500, wire diameters from 0.025 mm to 2.03 mm (0.001 in to 0.08 in), and apertures from 0.0254 mm to 23.37 mm (0.001 in.) inches to 0.92 inches).
| Product name | High Density 316 211 Micron Dutch Stainless Steel Woven Wire Mesh |
| Mesh Count | 12X 64 Mesh |
| Type | stainless steel sutch mesh |
| Material | 316 |
| Weave | Plain weave ,twill weave |
| Length | 30 meters |
| Width | 1 meter |
| Hole | 211 um |
| Wire diameter | 0.45*0.315um |
| Feature | durable |
| Thickness | 1.08mm |
Application of stainless steel Dutch wire mesh
Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grill nets, vents, building and construction nets, craft paper, decorative nets, fan hoods, filtering liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water
Feature of the stainless steel Dutch wire mesh
The structure is stable and firm;
Excellent corrosion resistance, high temperature resistance and wear resistance;
Durable and long lasting;
Both weaving methods show a beautiful surface.
Parameters of stainless steel Dutch mesh
| plain weave Dutch mesh | ||||
| Number | Mesh(warpxweft) | Wire diameter | Aperture | Weight |
| (warpxweft) | (um) | (kg/m2) | ||
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.4 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
| Width:1m-1.6m |
||||
