Product Details:
Payment & Shipping Terms:
|
| Product Name: | SS316 Plain Weave Acid Resisting Stainless Steel Dutch Wire Mesh | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Filter |
| Technique: | Woven | Feature: | Acid-resistant |
| Keywords: | Stainless Steel Sutch Mesh | Material: | Stainless Steel 304 ,316 |
| High Light: | ss316 plain dutch weave mesh,high density plain dutch weave mesh,liquid separation dutch weave wire mesh |
||

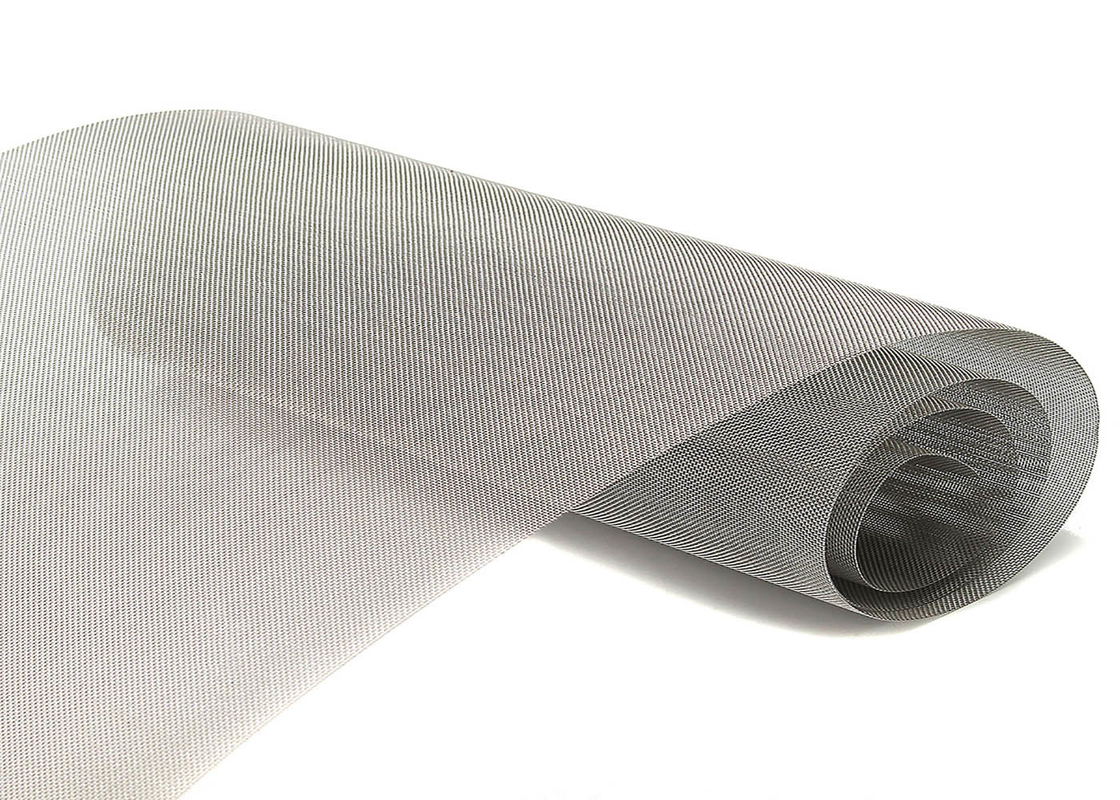

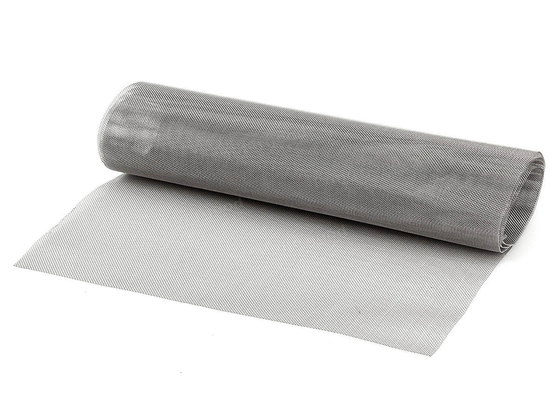

SS316 Plain Weave Acid Resisting Stainless Steel Dutch Wire Mesh
Description of stainless steel Dutch woven wire mesh
Most filtration applications using wire cloth are best done with Dutch weaving. They have different warp and weft diameters, and the weft yarns are close together to provide excellent strength and high density.
Unlike square knitting, Dutch knitting has no straight mouth. As the fluid continues to travel along the tortuous path, weaving is very effective in releasing and capturing solids from the filter cake.
| Product name | SS316 Plain Weave Acid Resisting Stainless Steel Dutch Wire Mesh |
| Mesh Count | 24 X 110 Mesh,7*40 mesh,100*850,mesh |
| Type | stainless steel sutch mesh |
| Material | 316 |
| Weave | Plain weave ,twill weave |
| Length | 30 meters |
| Width | 1 meter |
| Hole | 347 um-3um |
| Wire diameter | 0.015um-0.9um |
| Feature | durable |
| Thickness | 0.055mm-2.32mm |
Application of 60 um stainless steel Dutch wire mesh
Anti-Dutch applications are widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.
Feature of the stainless steel Dutch wire mesh
Accurate and uniform aperture
High cleanliness
Excellent formability
High tensile strength
Narrow pore size distribution
Cleanable
Particle-free migration
Good flow rate
Parameters of stainless steel Dutch mesh
| plain weave Dutch mesh | ||||
| Number | Mesh(warpxweft) | Wire diameter | Aperture | Weight |
| (warpxweft) | (um) | (kg/m2) | ||
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.4 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
| Width:1m-1.6m | ||||
