Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Filter |
| Wire Diameter: | 0.9*0.71- 0.025*0.015 | Feature: | Acid-resisting |
| Mesh Count: | 24 X 110 Mesh | Keywords: | Stainless Steel Sutch Mesh |
| High Light: | 304 woven wire mesh filter,20 x 120 woven wire mesh filter,acid resisting dutch woven wire mesh |
||

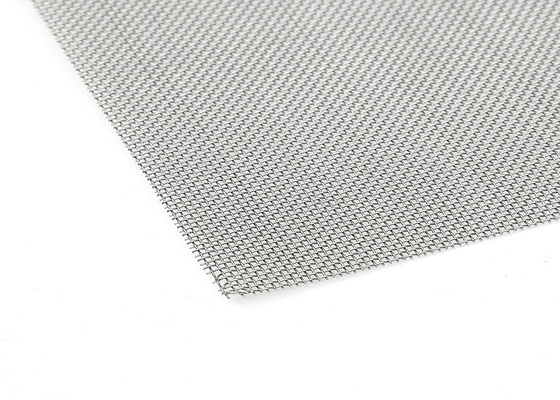

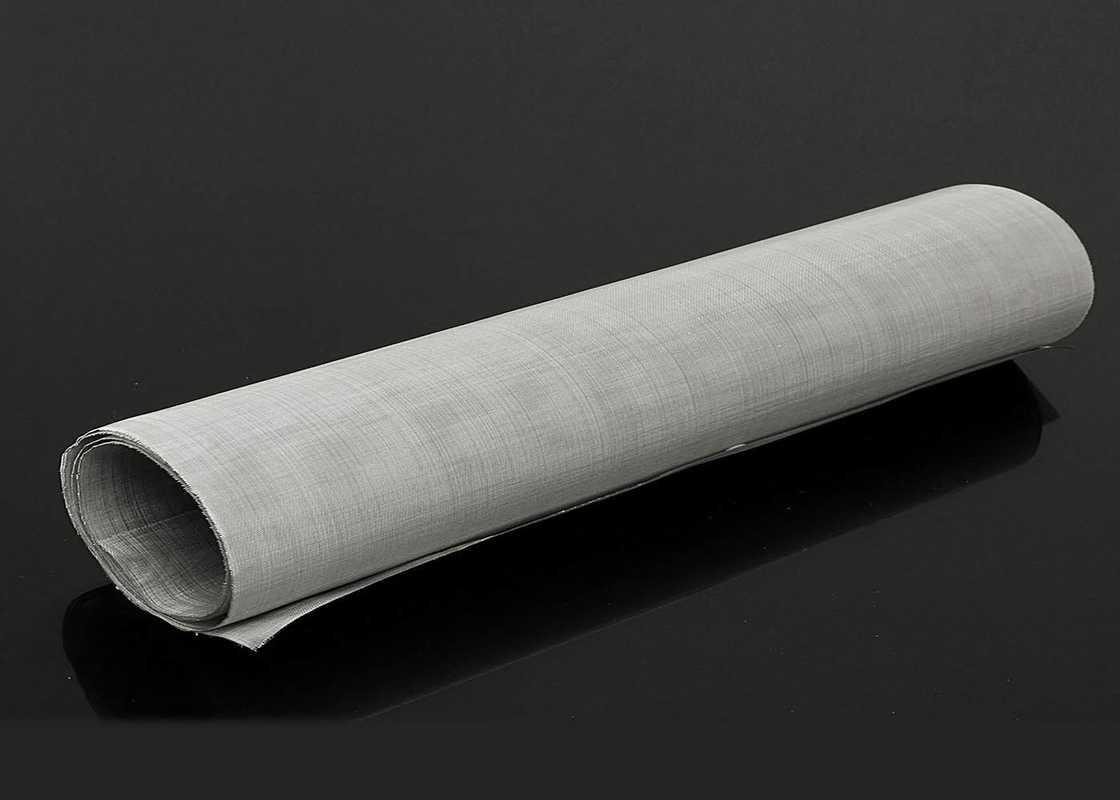

304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh
The mat mesh is a fine-grained dense mesh, but generally the diameter of the warp yarn is larger than the diameter of the weft yarn. The contrast weave is called a contrast weave because the weft yarns are much thicker than the warp yarns. In order to achieve the filtration density that cannot be achieved by the square mesh.
| Product name | 304 24 X 110 Mesh Dutch Woven Stainless Steel Woven Wire Mesh |
| Mesh Count | 24 X 110 Mesh |
| Type | stainless steel sutch mesh |
| Material | 304 |
| Weave | Plain weave ,twill weave |
| Length | 30 meters |
| Width | 1 meter |
| Hole | 97um |
| Wire diameter | 0.355*0.25um |
| Feature | durable |
| Thickness | 0.855mm |
Description of stainless steel Dutch woven wire mesh:
Woven wire cloth/Dutch woven material (reverse Dutch woven wire mesh): Reverse Dutch woven wire mesh made of stainless steel wire 304, 304L, 316, 316L, duplex stainless steel, 904L, etc.
Application of 60um stainless steel Dutch wire mesh:
Anti-load applications are widely used in aerospace, petroleum, chemical, chemical fiber, machinery, plastic products, scientific research, transportation and other industries.
Features of stainless steel Dutch wire mesh:
It has fine filtering and a highly durable, smooth and shiny surface.
Stainless steel Dutch mesh parameters:
| plain weave Dutch mesh | ||||
| Number | Mesh(warpxweft) | Wire diameter | Aperture | Weight |
| (warpxweft) | (um) | (kg/m2) | ||
| 32# | 8 x 62 | 0.63mm x 0.45mm | 300 | 5.42 |
| 40# | 10 x 79 | 0.50mm x 0.355mm | 250 | 3.16 |
| 48# | 12 x 64 | 0.58mm x 0.40mm | 280 | 2.9 |
| 55# | 14 x 88 | 0.40mm x 0.30mm | 180 | 2.54 |
| 76# | 19 x 140 | 0.315mm x 0.20mm | 140 | 1.88 |
| 80# | 20 x 300 | 0.35mm x 0.20mm | - | 3.6 |
| 95# | 24 x 110 | 0.355mm x 0.25mm | 120 | 2.45 |
| 100# | 25 x 140 | 0.28mm x 0.20mm | 100 | 1.95 |
| 120# | 30 x 150 | 0.25mm x 0.18mm | 80 | 1.68 |
| 140# | 35 x 175 | 0.224mm x 0.16mm | 71 | 1.52 |
| 160# | 40 x 200 | 0.20mm x 0.14mm | 60 | 1.4 |
| 180# | 45 x 250 | 0.16mm x 0.112mm | 56 | 1.09 |
| 200# | 50 x 250 | 0.14mm x 0.11mm | 53 | 1.04 |
| 220# | 55.5 x 280 | 0.14mm x 0.10mm | 50 | 0.92 |
| 240# | 65 x 330 | 0.11mm x 0.08mm | 36 | 0.71 |
| 280#(1) | 70 x 350 | 0.11mm x 0.08mm | 35 | 0.72 |
| 280#(2) | 70 x 385 | 0.11mm x 0.07mm | 32 | 0.75 |
| 300# | 78 x 700 | 0.11mm x 0.08mm | 30 | 1.39 |
| 315#(1) | 80 x 400 | 0.10mm x 0.065mm | 40 | 0.62 |
| 315#(2) | 80 x 600 | 0.10mm x 0.06mm | - | 0.74 |
| 315#(3) | 80 x 800 | 0.15mm x 0.04mm | - | 0.77 |
| 320# | 81 x 780 | 0.10mm x 0.07mm | 30 | 1.22 |
| 354# | 90 x 550 | 0.12mm x 0.05 | - | 0.667 |
| Width:1m-1.6m | ||||
