| Product Name: | Liquid Separation 50×300 Mesh Stainless Steel Plain Weave Dutch Wire Mesh | Material: | Stainless Steel Wire Mesh |
|---|---|---|---|
| Type: | Weave Wire Mesh | Width: | 1m, 1.2m, 1.5m, Or As Requirement |
| Length: | 30m Or As Requirement | Wire Diameter: | 0.9*0.71- 0.025*0.015 |
| Feature: | Acid-resisting | Mesh Count: | 50×300 Mesh |
| High Light: | ss304 plain weave wire mesh,200 mesh plain weave wire mesh,barbecue filter belt plain weave mesh |
||

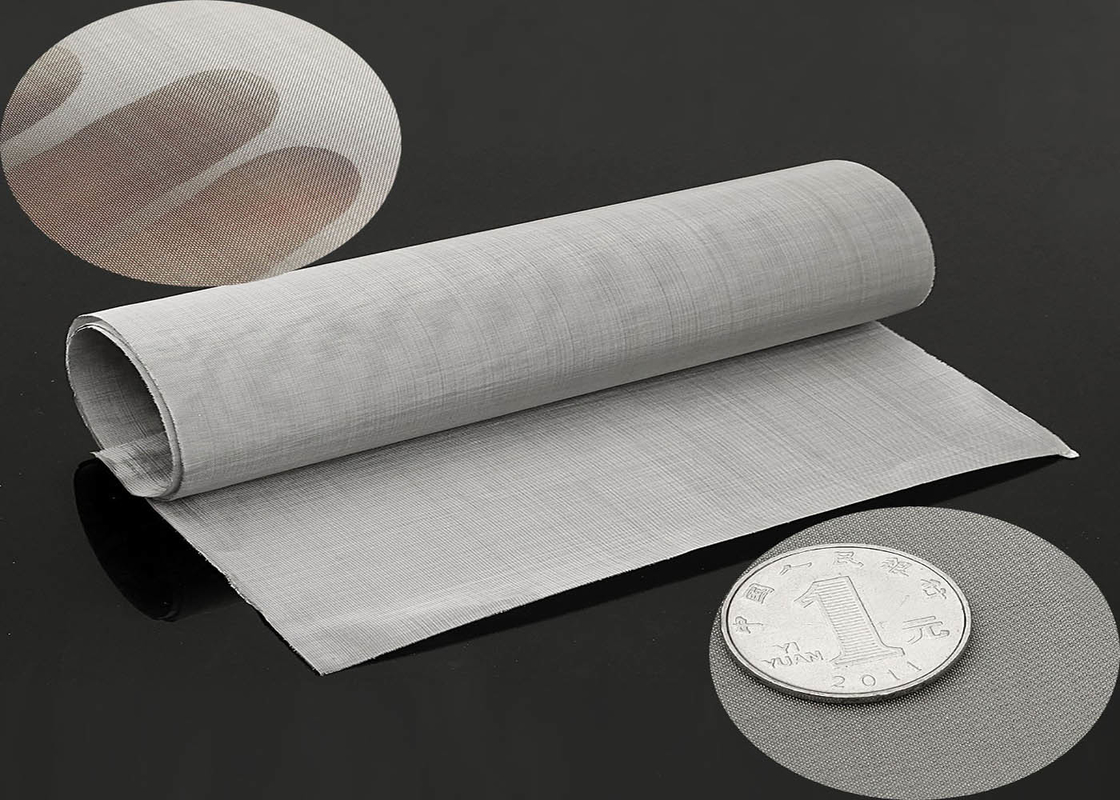

Liquid Separation 50×300 Mesh Stainless Steel Plain Weave Dutch Wire Mesh
Description of stainless steel Dutch woven wire mesh
Dutch mesh, as the wire diameter becomes smaller, the aperture becomes larger. Due to the variety of woven mesh materials and wire mesh weave patterns, finished Dutch mesh comes in many types and finished woven mesh products. Therefore, it is a wide variety of wire mesh products with a wide range of applications in industrial, commercial and decorative fields.
| Product name | Liquid Separation 50×300 Mesh Stainless Steel Plain Weave Dutch Wire Mesh |
| Mesh Count | 50 X 300 Mesh |
| Type | stainless steel sutch mesh |
| Material | 304 |
| Weave | Plain weave ,twill weave |
| Length | 30 meters |
| Width | 1 meter |
| Hole | 55um |
| Wire diameter | 0.16*0.09um |
| Feature | durable |
| Thickness | 0.34mm |
Application of 60 um stainless steel Dutch wire mesh
Dutch wire mesh has endless applications in industry, commerce and decoration. Such as filters, sieves, separators, filters, baskets, gas diffusion, drying, car grille mesh, vents, building and construction nets, craft paper, decorative nets, fan hoods, filter liquids and gases, fireplace screens, food Dry, basic ventilation net, gutter protection net, high transparent net, hydraulic filter, insect net, lampshade, oil filter, pest control, safety, separation of fuel from water
Feature of the stainless steel Dutch wire mesh
►Better filtration performance.
►Higher tensile strength.
►Can be used to filter ultra-fine products.
►The structure is more stable.
Parameters of stainless steel Dutch mesh
|
plain weave Dutch mesh |
||||
|
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
|
Width:1m-1.6m |
||||
