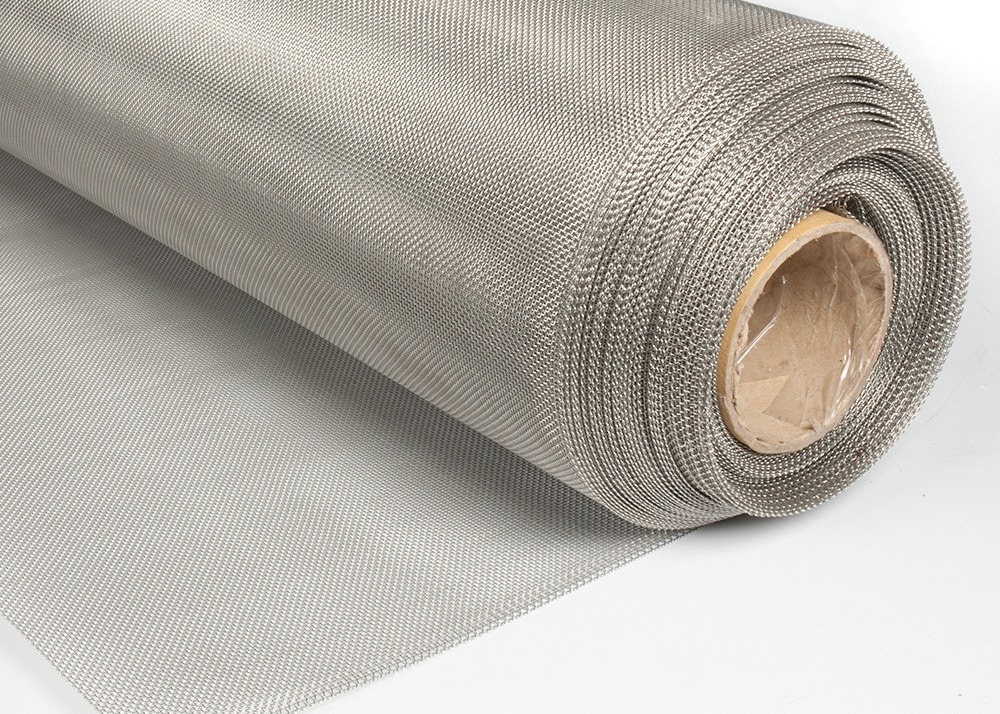

SUS 316L 200 Mesh Stainless Steel Screen Printing Mesh For Printing Pcb

SUS 316L 200 Mesh  Stainless Steel Screen Printing Mesh For Printing Pcb
SUS 316L 200 Mesh  Stainless Steel Screen Printing Mesh For Printing Pcb

Large Image :  SUS 316L 200 Mesh Stainless Steel Screen Printing Mesh For Printing Pcb

Product Details:
Place of Origin: Hebei, China(Mainland)
Brand Name: R&K
Certification: FDA / SGS / ISO:9001
Model Number: R&K-Stainless Steel Screen Mesh
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll (3.66m/4m)
Price: Negotiable
Packaging Details: 1.30-70m/roll in PVC bag 2 2-8 rolls per carton 3.waterproof bags outside 4.package belt strengthen
Delivery Time: 7~15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000 Meters per month
Detailed Product Description
Wire Diameter: 0.05-20mm Length: 30 Meters One Roll
Surface: Bright Finish Product Name: SUS 316L 200 Mesh Stainless Steel Screen Printing Mesh For Printing Pcb
Material: SUS 316L Key Word: Stainless Steel Printing Mesh
High Light:

316L stainless steel screen printing mesh

,

1mm stainless steel screen printing mesh

,

316L stainless screen printing mesh

SUS 316L 200 Mesh Stainless Steel Screen Printing Mesh For Printing Pcb

Product Introduction



Stainless steel screen printing mesh have SUS 304N,304HPS,316L three materials.We can make the mesh as your inquirements,and the width also can meet your requirements .

Our MOQ is 1 square meters,and we can provide you free samples.

The details of the stainless steel screen printing mesh is as below:



Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
Weave type: Plain Weave,Twilled weave,dutch weave.
Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
Roll Length: 15m,30m,60m,100m,200m

Aperture: 33um-475um

Open area: 41.7%

Product name SUS 316L 200 Mesh Stainless Steel Screen Printing Mesh For Printing Pcb
Key word  stainless steel wire mesh
wire diameter  0.05-20mm
length 30 meters one roll
Material  316L
Surface Bright Finish



Product Features



1. High tension.Much higher tension than common polyester mesh,and this property is very stable

2. Super Precision:Uniform wire diameter and aperture with extremely low difference;

3. Low Precision:Very small elongation of wire mesh at high tension;

4. High Flexibility:The wire mesh will not lose elasticity at extreme tension;

5. High Corrosion Resistance:The excellent corrosion resistance of stainless steel wire exceeds polyester fiber;

6. Non-electrostatic:To avoid affects of non-electrostatic for printing and ensure the safety of printing;

7. Good Heat-melting Resistance:Special features of stainless steel wire mesh.Suitable for heat-melting ink;

8. Good Solvent Resistance:To avoid the affects of any solvents to wire mesh and to ensure the safety of printing.



Product Application



1. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in the petroleum industry, chemical fiber industry, as a screen filter, and electroplating.
2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.
3. Used for screening and filtering under acid and alkali environmental conditions, as mud mesh in petroleum industry, as sieve in chemical and chemical fiber industry, and as pickling mesh in electroplating industry. The factory can design and produce various types of products according to user needs.



Product Specification





Specification Mesh/inch Wire Dia.(μm) Open area Ratio(%) Aperture(μm) Thickness(μm) Calendered Thickness(μm) Theoretical Ink(cm³/m²)
40*40*160 40 160 56.0 475 300-320 As order 179.1
60*60*120 60 120 51.3 303 230-245 As order 123.2
80*80*120 80 120 39.0 198 235-245 As order 92.9
80*80*90 80 90 52.0 228 175-180 As order 103.0
80*80*50 80 50 71.0 268 95-100 As order 78.0
100*100*100 100 100 36.8 154 195-205 As order 77.2
120*120*80 120 80 39.0 132 155-165 As order 65.8
150*150*60 150 60 41.7 109 115-124 As order 50.0
165*165*35 165 35 60.0 119 70-75 As order 48.0
165*165*45 165 45 50.1 109 88-93 As order 45.1
165*165*50 165 50 45.6 104 97-105 As order 45.6
180*180*45 180 45 46.4 96 88-93 As order 41.5
180*180*50 180 50 42.0 91 98-104 As order 41.7
200*200*40 200 40 46.9 87 82-84 As order 43.0
200*200*50 200 50 37.0 77 98-103 As order 42.0
230*230*35 230 35 46.7 75 72-76 50-67 37.0
250*250*40 250 40 36.8 62 86-86 50-80 34.0
250*250*30 250 30 49.7 72 64-68 40-58 30.0
250*250*35 250 35 43.0 67 76-78 57-70 32.0
