Product Details:
Payment & Shipping Terms:
|
| Product Name: | 304 60 Mesh Stainless Steel Woven Wire Mesh Plain Weave Filter Mesh | Material: | Stainless Steel 304 ,316 |
|---|---|---|---|
| Weave Type: | Plain/Twill/Dutch | Mesh Count: | 60 Mesh |
| Width: | 1m | Color: | Silver |
| Application: | Filtration | ||
| High Light: | 80 Micron ss wire mesh,316 grade ss wire mesh,33um ss wire mesh |
||

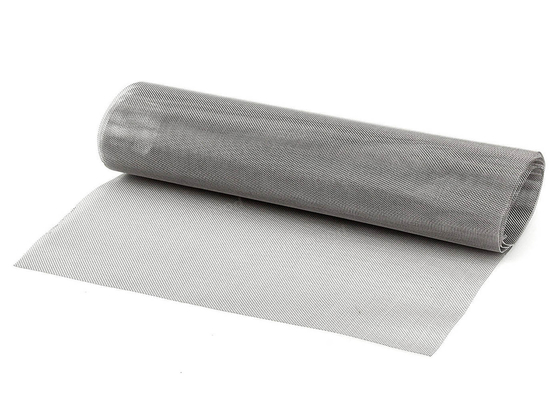

304 60 Mesh Stainless Steel Woven Wire Mesh Plain Weave Filter Mesh
Description of stainless steel wire mesh:
| Product name | 304 60 Mesh Stainless Steel Woven Wire Mesh Plain Weave |
| Material: | SUS302, 304, 304L, 316, 316L, 310s |
| Type | steel crimped wire mesh,weave mesh , |
| Weave | plain weave ,twill weave |
| Mesh Count | 60 mesh |
| Width | 1 meter |
| Length | 30 meters |
| Pack | roll |
Stainless steel mesh is classified according to species: 1. Stainless steel plain weave mesh. 2. Stainless steel twill mesh. 3. Stainless steel bamboo pattern net. 4. Five-shed stainless steel mesh. 5. Stainless steel punching net. 6. Stainless steel crimped wire mesh. 7. Stainless steel chain link fence. 8. Stainless steel expanded metal mesh. 9. Stainless steel welded wire mesh. 10. Stainless steel hexagonal net. 11. Stainless steel mat type net. 12. Stainless steel barbecue net. 13. Stainless steel mine screen. 14. Stainless steel tortoise shell net.
Stainless steel mesh material is divided into 304, 304L, 316, 316L, 310, 310s and other metal wires.
The different is depends on the nickel content.
Nickel (Ni), the higher the content, the more corrosion-resistant, the worst is no nickel, which is basically equivalent to 201.
x nickel means the percentage of nickel in stainless steel. It is customary to think that nickel content "=8% stainless steel is 304 stainless steel
201----2Ni
302----4Ni
304----8Ni
316----10Ni
316L----12Ni
Features of stainless steel wire mesh:
The surface is smooth, rust-proof, corrosion-resistant, non-toxic, hygienic and environmentally friendly. Uses: Hospitals, pasta, meat barbecues, life-use flower baskets, fruit basket series are mainly made of stainless steel wire mesh, using electrolytic polishing technology for surface treatment, the surface is as bright as a mirror.
Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine and other industries, mainly for gas and liquid filtration and other media separation.
Specification of the stainless steel wire mesh:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) |
||
| Inch | MM | Inch | MM | |||
| 1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
| 2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
| 3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
| 4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
| 5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
| 10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
| 12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
| 14*14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
| 16*16 | 0.018 | 0.457 | 0.445 | 1.13 | 71.2 | 1.6 |
| 18*18 | 0.017 | 0.432 | 0.386 | 0.98 | 69.4 | 1.6 |
| 20*20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
| 20*20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
| 30*30 | 0.12 | 0.305 | 0.213 | 0.54 | 63.9 | 1.4 |
| 30*30 | 0.0094 | 0.24 | 0.243 | 0.62 | 72.1 | 0.84 |
| 40*40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
| 50*50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
| 60*60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
| 60*60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
| 80*80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
| 100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
| 100*100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
| 120*120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
| 150*150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
| 165*165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
| 180*180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
| 180*180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
| 200*200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
| 200*200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
| 250*250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
| 270*270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
| 300*300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
| 325*325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
| 400*400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
