| Product Name: | 316 316L 80 Mesh 200 Micron Stainless Steel Woven Wire Mesh Filter Mesh | Material: | Stainless Steel |
|---|---|---|---|
| Weave Type: | Plain/Twill/Dutch | Mesh Count: | 10-600 |
| Width: | 1.2m | Color: | Silver |
| Application: | Filtration | Micorn: | 200 Micron |
| High Light: | 1.2m Stainless Steel Wire Mesh,310s Stainless Steel Wire Mesh,1.2m Stainless woven Wire Mesh |
||

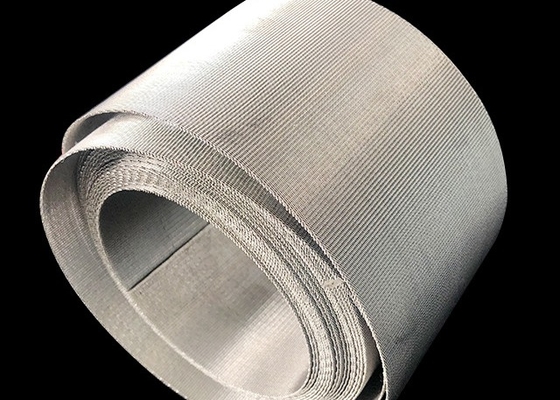

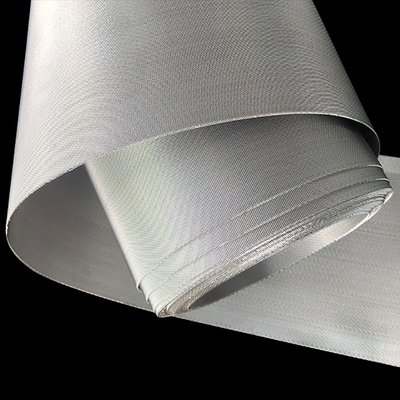

316 316L 80 Mesh 200 Micron Stainless Steel Woven Wire Mesh Filter Mesh
Material: stainless steel woven mesh, copper mesh, mat mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Stainless steel edging mesh
Hemming material: stainless steel plate.
Product shape: rectangle, square, circle, oval, ring, rectangle, hat, waist, special shape
Stainless steel spot welded mesh
Material: stainless steel woven mesh, copper mesh, mat-type mesh, stainless steel sintered mesh, stainless steel square mesh, metal plate mesh, expanded metal mesh, perforated mesh and other metal meshes.
Product structure: single-layer, double-layer, three-layer, four-layer, five-layer, multi-layer.
Processing size: 6 mm to 650 mm.
Product classification: single-layer filter mesh, multi-layer spot welded filter mesh, edging filter mesh, combined filter mesh.
Stainless steel mesh tube
Material: stainless steel woven mesh, stainless steel square mesh.
Features: It is made of single-layer or multi-layer metal mesh. The number of layers and the number of meshes constituting the wire mesh are determined according to different use conditions and purposes. High concentricity,
Withstand high pressure, good straightness, stainless steel material, without any burrs, long service life.
Specification of the stainless steel wire mesh:
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight (kg/Square meter) |
||
| Inch | MM | Inch | MM | |||
| 1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 92 | 2 |
| 2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 87.4 | 2.5 |
| 3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 83.8 | 2.7 |
| 4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 81.2 | 2.7 |
| 5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 79.5 | 2.6 |
| 10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 74.9 | 2 |
| 12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 75.9 | 1.5 |
| 14*14 | 0.02 | 0.508 | 0.051 | 1.3 | 71.9 | 1.8 |
| 16*16 | 0.018 | 0.457 | 0.445 | 1.13 | 71.2 | 1.6 |
| 18*18 | 0.017 | 0.432 | 0.386 | 0.98 | 69.4 | 1.6 |
| 20*20 | 0.02 | 0.24 | 0.03 | 0.76 | 76 | 0.56 |
| 20*20 | 0.016 | 0.33 | 0.034 | 0.86 | 72.2 | 1.1 |
| 30*30 | 0.12 | 0.305 | 0.213 | 0.54 | 63.9 | 1.4 |
| 30*30 | 0.0094 | 0.24 | 0.243 | 0.62 | 72.1 | 0.84 |
| 40*40 | 0.01 | 0.254 | 0.015 | 0.38 | 59.9 | 1.3 |
| 50*50 | 0.0055 | 0.14 | 0.0145 | 0.368 | 72.4 | 0.48 |
| 60*60 | 0.0047 | 0.12 | 0.012 | 0.303 | 71.6 | 0.42 |
| 60*60 | 0.0059 | 0.15 | 0.0107 | 0.273 | 64.5 | 0.65 |
| 80*80 | 0.0055 | 0.14 | 0.0069 | 0.117 | 45.5 | 0.76 |
| 100*100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 55.1 | 0.59 |
| 100*100 | 0.004 | 0.102 | 0.006 | 0.152 | 59.8 | 0.49 |
| 120*120 | 0.0028 | 0.07 | 0.0057 | 0.147 | 67.7 | 0.29 |
| 150*150 | 0.0024 | 0.06 | 0.0043 | 0.11 | 64.7 | 0.26 |
| 150*150 | 0.0028 | 0.07 | 0.0039 | 0.1 | 58.8 | 0.38 |
| 165*165 | 0.0019 | 0.05 | 0.0041 | 0.104 | 67.5 | 0.2 |
| 180*180 | 0.0019 | 0.05 | 0.0035 | 0.091 | 64.5 | 0.22 |
| 180*180 | 0.0024 | 0.06 | 0.0031 | 0.081 | 57.4 | 0.32 |
| 200*200 | 0.0019 | 0.05 | 0.003 | 0.077 | 60.6 | 0.24 |
| 200*200 | 0.0024 | 0.06 | 0.0026 | 0.067 | 52.7 | 0.35 |
| 250*250 | 0.0016 | 0.04 | 0.0024 | 0.0616 | 60.6 | 0.2 |
| 270*270 | 0.0016 | 0.04 | 0.0021 | 0.054 | 57.4 | 0.21 |
| 300*300 | 0.0016 | 0.04 | 0.0018 | 0.045 | 53.5 | 0.23 |
| 325*325 | 0.0014 | 0.035 | 0.0017 | 0.0432 | 55.3 | 0.2 |
| 400*400 | 0.0012 | 0.03 | 0.0013 | 0.0335 | 52.7 | 0.18 |
| 500*500 | 0.0009 | 0.025 | 0.001 | 0.0258 | 50.7 | 0.15 |
| 635*635 | 0.0007 | 0.018 | 0.0008 | 0.022 | 55 | 0.1 |
Description of stainless steel wire mesh:
Stainless steel mesh is made of 304, 304L, 316, 316L, 310, 310s and other metal wires. The surface is smooth, rust-proof, corrosion-resistant, non-toxic, hygienic and environmentally friendly. Uses: Hospitals, pasta, meat barbecues, life-use flower baskets, fruit basket series are mainly made of stainless steel wire mesh, using electrolytic polishing technology for surface treatment, the surface is as bright as a mirror.
Material: SUS302, 304, 304L, 316, 316L, 310s
Material: stainless steel wire, stainless steel plate
Stainless steel crimped wire mesh
Stainless steel crimped wire mesh (3 sheets)
Stainless steel is heat-resistant, acid-resistant, corrosion-resistant and wear-resistant. Because of these characteristics, stainless steel mesh is widely used in mining, chemical, food, petroleum, medicine and other industries, mainly for gas and liquid filtration and other media separation.
