Product Details:
Payment & Shipping Terms:
|
| Width: | 1-3.65m | Hole Shape: | Square |
|---|---|---|---|
| Usage: | Liquid Filter | Weave Style: | Plain Woven Nylon Mesh |
| Technique: | Woven | Feature: | Corrosion Resistance |
| Name: | Twill Weave FDA 75 90 200 Micron1 Meter Width Filter Nylon Mesh | Length: | 50 Meters / As Require |
| High Light: | 200 Micron Filter Nylon Mesh,FDA Filter Nylon Mesh,70 micron nylon mesh |
||

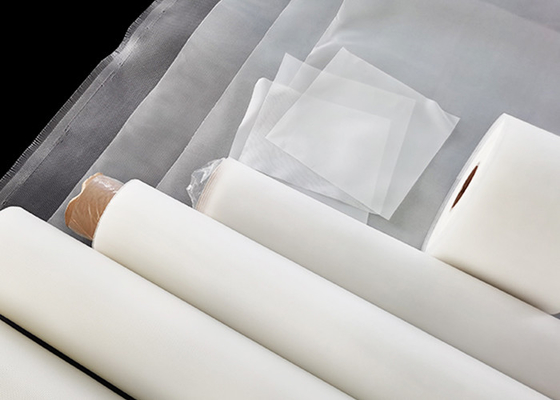

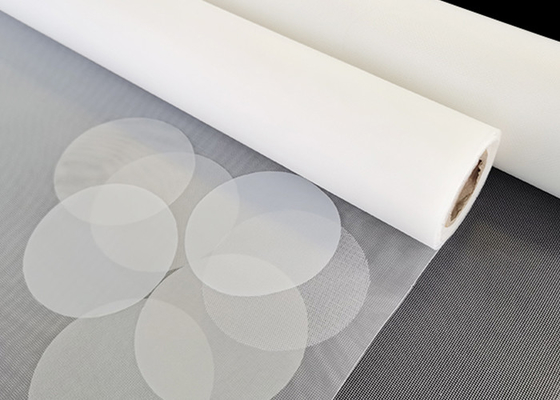

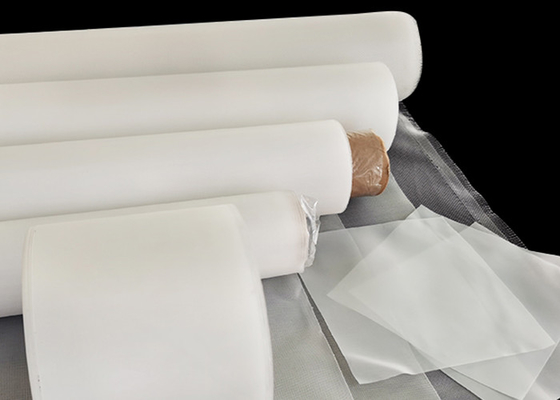

FDA Food Grade 75 90 200 Micron Nylon Filter Mesh Flour Mesh Precision Screen
Product Introduction
Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications
This can have plain weave or double warp structure and can be used in Filtration, Screening, Sifting or Milling applications from the production of filter bags, and screens to being injection moulded as special filter applications.
Product Specification
Material:FDA food grade commercial nylon mesh
Mesh opening:5-1950 micron
Weave Style:Plain Weave
Thread Diameter:31-550 micron
Monofilament Style:Yes
Thickness:51-1100 micron
Hole Shape:square
Roll length:30-70m or customized
Roll width:1m, 1.25m, 2.5m, 2.95m or customized
Usage:liquid filter, air filter, dust filter
Product Features
5–236 meshes for different filtration requirements.
Available for filter disc, filter tube, filter belt and filter bags.
Plain weave or twill weave options.
Excellent in liquid, powder, dust, gas and other element filtration.
Alternative to polyester (PA) filter mesh.
Product Application
Nylon filter mesh are widely used in: Mining/Agriculture/Aquaculture/medical and laboratory./ infusion and transfusion filters/micro-aggregate filters
arterial and venous filters in oxygenator reservoirs and blood bag/Making nylon filter bags etc..
Product Characteristic
Non-toxic,odorless,tasteless,high strength,high elongtation
wear resistant ,high strength,good filtration(high air permeability)
Service long life time.
Bulk mesh in stock.
sample are available for you.
Custom-make.(quantity,color, width and so on,as your request)
we are the big stable factory,welcome you to visit our plant.
Product Features
| It has high tension threshold and breaking point |
| It has high modulus, low elongation monofilament nylon yarn |
| It has resist to chemicals, abrasion, heat and moisture |
| Minimal tension loss during stretching process |
| Improved registration due to stable fabric tension |
| Good antistatic |
| No surface treatment |
Mesh Count is the number of threads per inch in the direction of warp and weft of the fabric.The mesh count is indentical in both warp and weft direction for Share Fitration's woven mesh.
Thread Diameter is specified as the diameter of the thread in microns.Yarn sizes in both warp and weft directions are the same.
Mesh Opening is the size or space between threads.The mesh opening is the result of the combination of the mesh count and yarn size.Mesh opening will determine the size or amount of material that will pass through the fabric.
