Wear Resistant 140t Monofilament Polyester Screen Fabric

China Hebei Reking Wire Mesh Co.,Ltd certification
China Hebei Reking Wire Mesh Co.,Ltd certification
I alreay install the flat flex conveyor belt and works well. Good company with nice service and high quality and high reputation

—— Mervyn Roe

Chain Mesh Conveyor Belt quality is ok. One of our reliable supplier , goods are delivered in time and nice package.

—— Dina Chek

Perfect Flat Wire Conveyor Belt we have purchased, low cost and good service.

—— Bahram Vand

I'm Online Chat Now

Wear Resistant 140t Monofilament Polyester Screen Fabric

Wear Resistant 140t Monofilament Polyester Screen Fabric
Wear Resistant 140t Monofilament Polyester Screen Fabric Wear Resistant 140t Monofilament Polyester Screen Fabric

Large Image :  Wear Resistant 140t Monofilament Polyester Screen Fabric

Product Details:
Place of Origin: Hebei,China
Brand Name: R&K
Model Number: Y1811
Payment & Shipping Terms:
Minimum Order Quantity: 100square meter
Price: negotiation
Packaging Details: plastic bag inside,carton box outside
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union,Paypal,Trade asscurance. Credit Card.
Supply Ability: 30000meter within 2 months
Detailed Product Description
Certification: ISO9001:2000,SGS,FDA,MSDS Product Name: Micron Polyester Mesh
Material: 100% Polyester Mesh Count: 140T/355 Mesh/inch
Thread Diameter: 30 Micron Aperture Size: 40-42micron
High Light:

140t screen printing mesh

,

wear resistant monofilament polyester screen fabric

,

140t monofilament polyester screen fabric

140T T-Shirt Screen Printing Mesh Micron Polyester Mesh For Printing


Description For The micron polyester mesh

Silk screen printing mesh are widely used in ceramic,glass,electonic components,textile,Garment,CD/DVD Pinting industry,like the life metal advertisement,business card,and the imgae..

Low enlongation silk screen printing mesh is producing in our factory in a wide of rang of the mesh counts,and our silk screen printing mesh offers significant advantages over the tradinional mofofilament polyester mesh.

Reking silk screen printing mesh be setting within 180-200 centigrate,we can control our temperature in filexibility. if you have any problem,you can contact us freely.the satable of the mesh depends on the temperature when setting up.


Specification of the Micron polyester mesh:



Mesh count diameter
(mesh/cm um)

mesh
count
(mesh/inch)

Weave

Aperture
(um)

Thread diameter Opening Thickness

Theoretic
ink

Weight

Tension
(N/CM)


165T-31(S) 420 1:1 23 31 15 48 7 36 25-36
150T-34(T) 380 1:1 23 34 13 55 6.5 42 30-31
150T-31(S) 380 1:1 32 31 23 49 11 32 24-25
140T-34(T) 355 1:1 31 34 20 56 12 41 27-28
140T-31(S) 355 1:1 36 31 26 53 10 39 26-28
120T-40(HD) 305 1:1 37 40 20 63 13 44 33-35
120T-34(T) 305 1:1 45 34 30 55 16 35 25-26
120T-31(S) 305 1:1 49 31 35 49 17 26 20-23
110T-40(HD) 280 1:1 48 40 27 64 17 40 30-32



Features of the  Micron polyester mesh:


1) Faster tensioning withour damage to threads;

2) Faster tension stabilization;

3) High elasticity;

4) Less tension loss during the stretching process;

High acid resistant,corrosion resistant;

Faster turnaround time from the screen room to the pressroom;
Improved registration due to stable tension;

Faster printing speeds.


polyester monofilament printin mesh with high-precision high-quality monofilament polyester mesh, with high precision, stable tension and other characteristics, and excellent dimensional stability, making printing will not produce deviation, and to ensure ultra-high strength and low elongation Degree, can greatly extend the life of the screen, another with heat, high temperature, wear-resistant and so on.


Application of the Micron polyester mesh:

Packing printing,

graphic sceen printing,

CD/DVD printing,

printing plate,

printing electronics,

PCB printing,

solar battery printing,

ceramic printing,

t-shirt printing,

garment printing,

glass printing.



How To Select The Suitable polyester mesh?


USAGE MESH COUNT USAGE MESH COUNT
Graphics printing mesh
Line artwork 230-305 Halftone and fine lines 305-420
Halftones screens up to 70 lines/in 305-380 Opaque areas 255-305
Halftones screens from 70-133lines/in 380-420
Garment printing
Glitter 25-60 Flock adhesive 45-125
Pigment ink printing, areasnes 110-175 Puff-up colors 55-125
Overpritnig 80-110 Plasticol transfer 125-305
Universal fabric 125 Plasticol direct 125-305
Pigment inks,half-tone 155-255 Sublimation transfer 195-305
Textile,flat films     300-420
Heavy decor fabric(terry cloth,denim 110-255

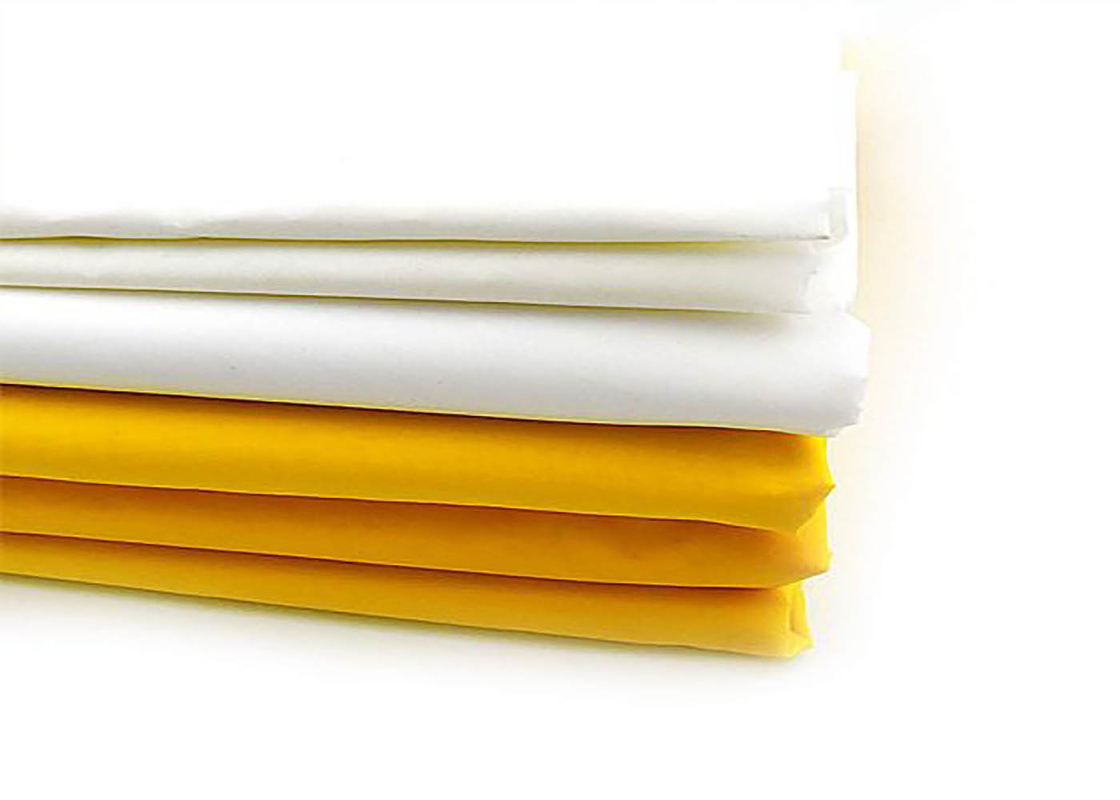

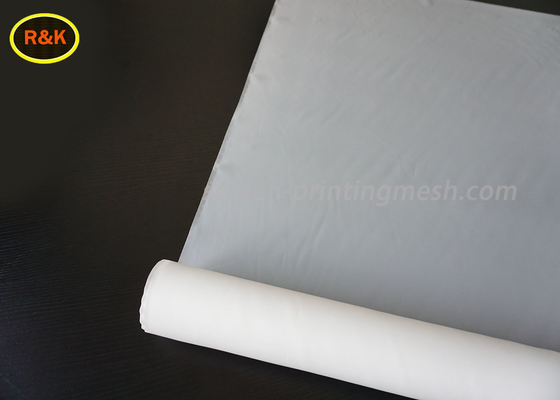

Photo for the micron polyester mesh:



Wear Resistant 140t Monofilament Polyester Screen Fabric 0

Wear Resistant 140t Monofilament Polyester Screen Fabric 1



Packing of the micron polyester mesh:



One roll for plastic bag,10-15 rolls for one cardboard.If necessary,we can do the plywood case for you.
