Product Details:
Payment & Shipping Terms:
|
| Product Name: | Fine Mesh Screen Roll , Nylon Mesh Filter Easy Clean 40 Micron | Weave: | Plain Weave |
|---|---|---|---|
| Mesh Count: | 10mesh-500 Mesh | Grade: | Food Grade |
| Size: | Customized Size | Feature: | Corrosion Resistance |
| MOQ: | 10 Square Meter | Filter Rating: | 27 % - 80 % Filter Mesh |
| Package: | Roll Package | Material: | 100% Nylon |
| High Light: | easy clean nylon mesh filter screening,nylon mesh filter screening 40 micron,40 micron nylon filter cloth |
||

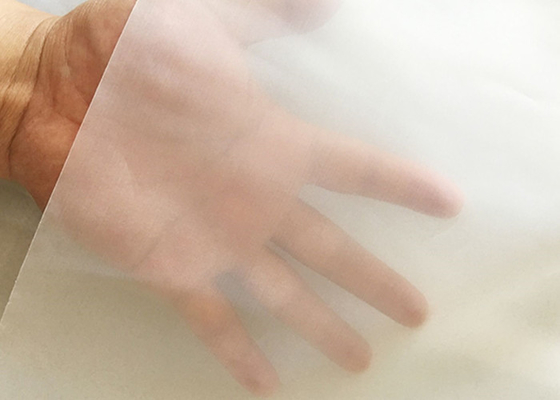

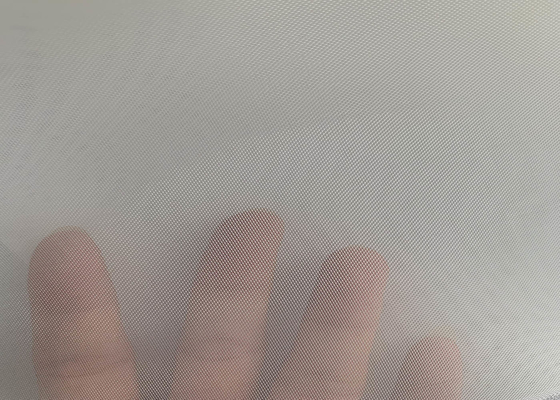

Fine Mesh Screen Roll , Nylon Mesh Filter Easy Clean 40 Micron
Description of nylon mesh
| Product name | Fine Screen Roll Easy Clean Nylon Mesh Filter Screening 40 Micron |
| Material | 100% nylon monofilament |
| Color | white, black or customized |
| Weave type | plain woven,twill weave |
| Common Width | 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized |
| Roll length | 30-100m or customized |
| Mesh Count/cm | 4-240T |
| Mesh Count/inch | 10-600 mesh/inch |
| Thread diameter | 35-550 micron |
| Mesh Opening | 5-2000 micron |
| Thickness | 60-1100micron |
| package | roll package |
| Food grade | Yes |
| MOQ | 1 meter |
| Band Name | R&K |
The nylon filter is made of monofilament PA6 or PA66 yarn/wire (1:1 weaving method, plain weave), suitable for filtering, sieving or filtering most liquids, powders or sludge; the term “monofilament” means Each of the wires used in the fabric structure is a single smooth solid thread, rather than many smaller diameter wires that are twisted together in a spun or multifilament material. These monofilament strands are very round in cross section and are extruded into very precise and uniform diameters.
Nylon filter mesh Application
Widely used in screen printing, printing and dyeing, chemical, metallurgy, cement and other industries, and also widely used in chemical filtration
Industry; food processing industry. Medical device industry. Air purification industry.
Construction industry; mining industry, etc.
Nylon mesh Feature
Nylon mesh has high toughness, high tensile strength, low elongation, good elasticity, corrosion resistance, oil resistance, water resistance, wear resistance, high temperature resistance, weather resistance, etc.; also has good insulation Sex, low lubricity.
nylon mesh Parameters
| Nylon Filter Mesh | |||||||
| Fabric number |
Mest count |
Thread diameter |
Mesh opening |
Open surface |
Fabric thickness |
Weight | |
| NO. | cm mesh/inch | micron | micron | % | micron | g/m2 | |
| JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 | 271 |
| JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 | 208 |
| JMG7 | 7 | 18 | 350 | 1079 | 57 | 675 | 186 |
| JPP8 | 8 | 20 | 350 | 900 | 52 | 685 | 212 |
| JPP9 | 9 | 24 | 250 | 860 | 60 | 455 | 145 |
| JPP10 | 10 | 25 | 300 | 700 | 49 | 576 | 195 |
| JPP12 | 12 | 30 | 250 | 583 | 49 | 470 | 162 |
| JPP12 | 12 | 35 | 300 | 533 | 41 | 585 | 234 |
| JPP14 | 14 | 40 | 300 | 414 | 34 | 595 | 273 |
| JPP16 | 16 | 40 | 200 | 425 | 46 | 370 | 139 |
| JPP16 | 16 | 50 | 250 | 375 | 36 | 485 | 217 |
| JPP20 | 20 | 50 | 150 | 350 | 49 | 375 | 98 |
| JPP20 | 20 | 50 | 200 | 300 | 36 | 385 | 173 |
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 | 117 |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 | 87 |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 | 94 |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 | 69 |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 | 78 |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 | 87 |
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 | 60 |
| JPP48 | 48 | 120 | 80 | 130 | 38 | 145 | 62 |
| JPP56 | 56 | 140 | 60 | 120 | 44 | 85 | 44 |
| JPP59 | 59 | 150 | 60 | 110 | 42 | 98 | 46 |
| JPP64 | 64 | 160 | 60 | 100 | 37 | 105 | 50 |
| JPP72 | 72 | 180 | 50 | 90 | 41 | 82 | 39 |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 | 43 |
| JPP100 | 100 | 250 | 40 | 60 | 36 | 65 | 35 |
| JPP120 | 120 | 305 | 40 | 43 | 25 | 70 | 42 |
| JPP130 | 130 | 330 | 40 | 37 | 23 | 75 | 45 |
