| Product Name: | 220 Micron Nylon Filter Mesh Monofilament Plain Weave | Color: | White |
|---|---|---|---|
| Mesh Count: | 10mesh-500 Mesh | Thread Diameter: | 400 Micron |
| Mesh Opening: | 5-1500 Um | Thickness: | 780 Um |
| Width: | 1.27m , 1.45m ,1.65m | Length: | 50m , 100m |
| Package: | Roll Package | Material: | 100% Nylon |
| High Light: | 220 micron nylon filter mesh,monofilament nylon filter mesh,220 micron nylon net filter |
||

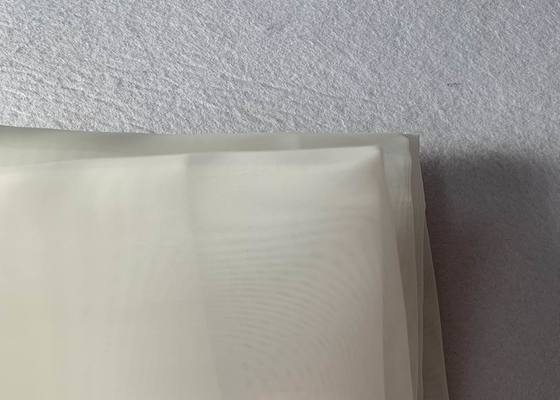

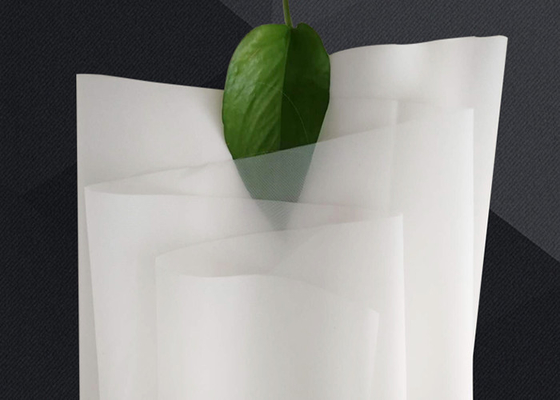

220 Micron Monofilament Plain Weave Nylon Filter Mesh
Nylon Filter Mesh Introduction
♥ Nylon monofilament mesh is plain weaving
♥ Nylon mesh also called Polyamide mesh, materials is PA6 and PA66
♥ Nylon mesh with good heat setting and washing,quality can meet FDA standard
| Product name | 220 Micron Nylon Filter Mesh Monofilament Plain Weave |
| Material | 100% nylon monofilament |
| Color | white, black or customized |
| Weave type | plain woven,twill weave |
| Common Width | 100cm, 127cm, 150cm, 160cm, 175cm, 183cm, 365cm or customized |
| Roll length | 30-100m or customized |
| Mesh Count/cm | 4-240T |
| Mesh Count/inch | 10-600 mesh/inch |
| Thread diameter | 35-550 micron |
| Mesh Opening | 5-2000 micron |
| Thickness | 60-1100micron |
| package | roll package |
| Food grade | Yes |
| MOQ | 1 meter |
| Band Name | R&K |
| Features | 1.food grade 2. Wear resistance, high strength, long service life, integrated use effect is good 3. Acid, weak alkali resistance.Wear resistance, corrosion resistance, resilience is very good 4. Gather dust rate is high, low initial resistance, dustproof performance is strong, can use repeatedly washing |
| Application |
Office building, meeting room, hospital, shopping mall, stadium, airport etc. Large civil building ventilation system;
|
| Samples | 1m free |
Nylon Filter Mesh Specification
| Fabric number | Mesh count | Thread diameter | Mesh opening | Opening | Thickness | |
| No. | cm | inch | um | micron | % | um |
| JPP5 | 5 | 12 | 500 | 1500 | 56 | 850 |
| JPP6 | 6 | 16 | 400 | 1267 | 58 | 780 |
| JPP7 | 7 | 18 | 350 | 1079 | 57 | 675 |
| JPP8 | 8 | 20 | 350 | 900 | 52 | 685 |
| JPP9 | 9 | 24 | 250 | 861 | 60 | 455 |
| JPP10 | 10 | 25 | 300 | 700 | 49 | 576 |
|
JPP12 |
12 | 30 | 250 | 583 | 49 | 470 |
| 12 | 30 | 300 | 533 | 41 | 585 | |
| JPP14 | 14 | 35 | 250 | 464 | 42 | 470 |
|
JPP16 |
16 | 40 | 200 | 425 | 46 | 370 |
| 16 | 40 | 250 | 375 | 36 | 485 | |
|
JPP20 |
20 | 50 | 150 | 350 | 49 | 375 |
| 20 | 50 | 200 | 300 | 36 | 385 | |
| JPP24 | 24 | 60 | 150 | 267 | 41 | 285 |
| JPP28 | 28 | 70 | 120 | 237 | 44 | 215 |
| JPP30 | 30 | 76 | 120 | 213 | 41 | 225 |
| JPP32 | 32 | 80 | 100 | 213 | 46 | 165 |
| JPP36 | 36 | 90 | 100 | 178 | 41 | 178 |
| JPP40 | 40 | 100 | 100 | 150 | 36 | 190 |
| JPP40 | 40 | 100 | 120 | |||
| JPP43 | 43 | 110 | 80 | 152 | 43 | 135 |
| JPP48 | 48 | 120 | 80 | 128 | 38 | 145 |
| JPP56 | 56 | 140 | 61 | 118 | 44 | 85 |
| JPP59 | 59 | 150 | 61 | 109 | 41 | 98 |
| JPP64 | 64 | 160 | 61 | 95 | 37 | 105 |
| JPP72 | 72 | 180 | 50 | 89 | 41 | 82 |
| JPP80 | 80 | 200 | 50 | 75 | 36 | 90 |
| JPP100 | 100 | 250 | 43 | 57 | 32 | 65 |
| JPP120 | 120 | 305 | 43 | 40 | 23 | 70 |
