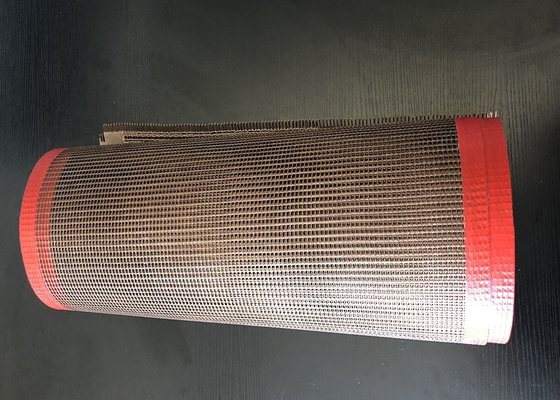

Bullnose Joint Endless Ptfe Conveyor Belts For Uv Dryer Machine

Bullnose Joint Endless Ptfe Conveyor Belts For Uv Dryer Machine
Bullnose Joint Endless Ptfe Conveyor Belts For Uv Dryer Machine

Large Image :  Bullnose Joint Endless Ptfe Conveyor Belts For Uv Dryer Machine

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: conveyor belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Keywords: Conveyor Belts Material: Fiberglass And Kevlar Material
Brand Name: REKING Hole Size: 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm
Width: 30cm To 4.3m Weight: 120-160g/m2
Length: We Will Do According To Your Demands Package: Plastic Bag
High Light:

bullnose joint ptfe conveyor belts


uv dryer machine ptfe conveyor belts


endless ptfe mesh conveyor belt

Bull Nose Joint Endless Conveyor Belts Used For UV Dryer Machine



Conveyor Belts Features


1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Rire retardant,
8. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.


Conveyor Belts Description


    conveyor belt , is also called teflen conveyor belt , is to use glass fiber cloth , coated with teflen emulsion made of a kind of high temperature resistant conveyor belt , high temperature can reach 260 degrees , at the same time , high strength , corrosion resistance .


    conveyor belt with a concave transition in the claw wheel.Carry out a proof, steel cable conveyor belt transverse strength is insufficient , startup , investing conveyor belt pulley cause local force is too large , lead to tear conveyor belt , take umbrella department to le le pulleys drum , can the thorough settlement of this problems .


Conveyor Belt Specification


Mesh Size Material Thickness Weight Tensile Strength
1*1mm Fiberglass 0.5mm 370g/ m2 310/290N/cm
2*2mm Fiberglass 0.7mm 450g/ m2 350/310N/cm
4*4mm Fiberglass 1.0mm 400g/ m2 390/320N/cm
10*10mm Fiberglass 1.2mm 450g/ m2 360/300N/cm
0.5*1mm Fiberglass 0.5mm 420g/ m2 310/290N/cm
2*2.5mm Fiberglass 0.9mm 600g/ m2 390/320N/cm


Conveyor Belt Application


It is suitable for use of teflen conveyor belt for hot air and heat transfer conditions .

A : textile , printing and dyeing : printing drying , bleaching cloth drying , fabric shrinkage drying , non-woven cloth drying and other drying road , drying conveyor belt

B : silk screen , printing: loose dryer , offset printing press , UV series light solid machine , paper oil drying , UV drying , plastic products silk printing drying and other drying road , oven conveyor belt .

C : other items : high frequency drying , microwave drying , all kinds of food freezing and thawing , baking , packaging thermal contraction , general water cut of items fast drying , solvent ink drying chamber conduction band.
