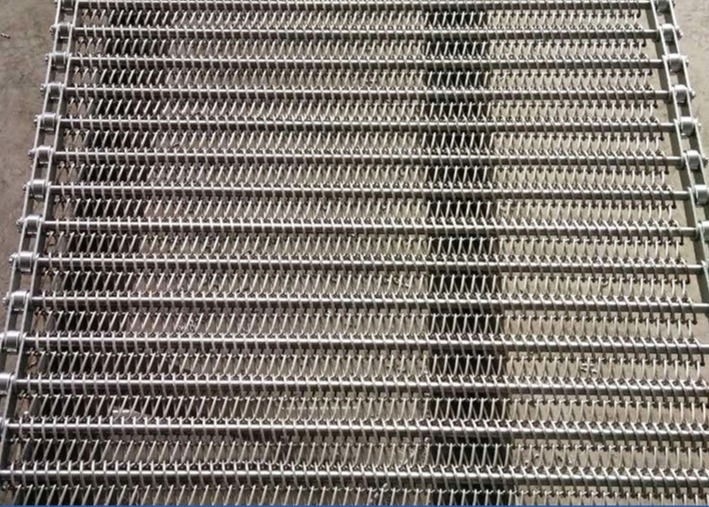

Carbon Steel Chain Conveyor Belt In Uv Drying Machine

Carbon Steel Chain Conveyor Belt In Uv Drying Machine
Carbon Steel Chain Conveyor Belt In Uv Drying Machine

Large Image :  Carbon Steel Chain Conveyor Belt In Uv Drying Machine

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Chain Link Mesh Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Product Name: Carbon Steel Chain Link Mesh Conveyor Belt Used For UV Drying Machine Keywords: Chain Link Mesh Conveyor Belt
Material: 304 Stainless Steel Main Features: Good Breathability
Usage: UV Drying Machine Package: Plywood Box
Wire Diameter: 0.8-4mm Spiral Pitch: 2.5-50mm
Rod Pitch: 7-60mm Chain Pitch: 31.75 50.8 63.5 76.2
High Light:

uv drying machine chain conveyor belt

,

carbon steel chain conveyor belt

,

carbon steel chain mesh conveyor belt

Carbon Steel Chain Link Mesh Conveyor Belt Used For UV Drying Machine





Chain Link Mesh Conveyor Belt Benefits



1.High open structure - high proportion of open area up to 86% makes the belt efficient in cooling, drying, heating applications.
2.Positive drive without slipping - Rod network belts are normally driven by sprockets positively without need for complicated tracking mechanisms.
3.Stable conveying - With smallest diameter end rolls and drive rolls, the rod network belts provide stable conveying of delicate products
4.A wide range of sizes - Various sizes with different openness to suit different applications providing superb strength and min contact surface between the products and the belts. Generally, the more the joints cross the width, the stronger the belt.
5.Lower belt mass - low belt mass than balanced weave belts for lower power consumption, faster processing and more product throughput.
6.Cost saving - The high open structure without hidden crevices makes the belt easy to clean and maintain which result in considerable cost saving



Chain Link Mesh Conveyor Belt Specification



 Chain link mesh conveyor belt own the resistance to acid ,alkali and low high temperature . It owns good conveying function,break resistance as well as antioxidation . With professional design and compact form , the stainless steel wire conveyor belt is very easy to install and steadily run without deflection .

  Details:

  Material : high carbon steel; galvanized steel, 3% chromium or manganese plated; stainless steel 304, 314, 310, 316, 330 or other custom materials as your request.

  Pitch of cross rods : 6mm to 20mm

  Pitch of spiral wires : 6mm to 20mm

  Diameter of cross rods : 1mm to 4mm

  Diameter of spiral wires : 1mm to 3mm



Chain Link Mesh Conveyor Belt Usage



Chain link mesh conveyor belt has many kinds of application . such as Annealing and cleaning facilities , Wrapping machines , Serving as metallic screen at lifting platforms , Metal working industry even at a high temperature



Carbon Steel Chain Conveyor Belt In Uv Drying Machine 0Carbon Steel Chain Conveyor Belt In Uv Drying Machine 1
