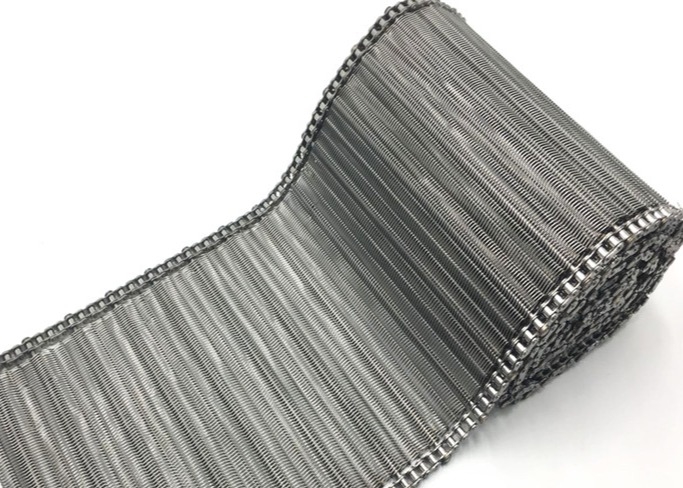

Woven 304 Wire Biscuit Baking Spiral Mesh Belt

Woven 304 Wire Biscuit Baking Spiral Mesh Belt
Woven 304 Wire Biscuit Baking Spiral Mesh Belt

Large Image :  Woven 304 Wire Biscuit Baking Spiral Mesh Belt

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Spiral Mesh Grid Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Features: Food Grade Product Name: Food Processing Industry Use Stainless Steel Spiral Wire Mesh Belt
Keywords: Spiral Mesh Grid Conveyor Belt Wire Diameter: 1.2-2mm
Rod Diameter: 5-7mm Plate Thickness: 2-3mm
Overall Width: 100-6000mm Belt Material: 201 304 316 316L Stainless Steel
Package: Plywood Box Delivery: 10 Days After Receiving Your Payment
High Light:

biscuit baking spiral mesh belt

,

woven spiral mesh belt

,

304 wire spiral conveyor belt

304 Wire Woven Spiral Mesh Grid Conveyor Belt For Biscuit Baking





Spiral Mesh Grid Conveyor Belt Introduction



Spiral mesh grid conveyor belt are driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric,the density of wire mesh fabric is choosen according to size of the product conveyed on the belt.

Spiral mesh grid conveyor belt characters:positive drive,smooth running ,little pressure on wire mesh fabric,from minus 55degree to 1150 degree,side guard and flight available,

Material:carbon steel,galvanized steel,stainless steel,weathering steel,high temperature steel,usually used in baking oven,quenching tank,washing machine,fryer,freezer etc.



Belt Name Spiral Wire Mesh Belt
Material 201 304 316L 310 314 Stainless Steel
Pitch 19.05-38.1mm
Plate Thickness 2-3mm
Wire Diameter 1.2-2mm
Rod Diameter 5-7mm



Spiral Mesh Grid Conveyor Belt Advantages

  1. Excellent strength to weight ratio but with maximum flexibility to prevents belt from deforming under heavy loads.
  2. High temperature resistance, non-slip, anti-corrosion, anti-rust, resistant to acid and alkaline.
  3.  Large opening area with good air circulation.
  4. Side and center baffles can be added to the conveyor belt to prevent the products from falling down to the ground.
  5. Easy to clean, assemble and disassemble, save maintenance cost, durable and long lifespan

Spiral Mesh Grid Conveyor Belt Usage

  1. Heating, baking machinery conveyor.
  2. Ultrasonic cleaning conveyor.
  3. Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.

Spiral Mesh Grid Conveyor Belt Quality Control



Woven 304 Wire Biscuit Baking Spiral Mesh Belt 0Woven 304 Wire Biscuit Baking Spiral Mesh Belt 1
