Payment & Shipping Terms:
|Product Name:||1mm 2mm 4mm Aperture PTFE Coated Fiberglass Conveyor Belts For Food Industry||Material Feature:||Heat Resistant,chemical Resistant|
4mm aperture conveyor belts,
coated fiberglass conveyor belts,
conveyor belts for food industry

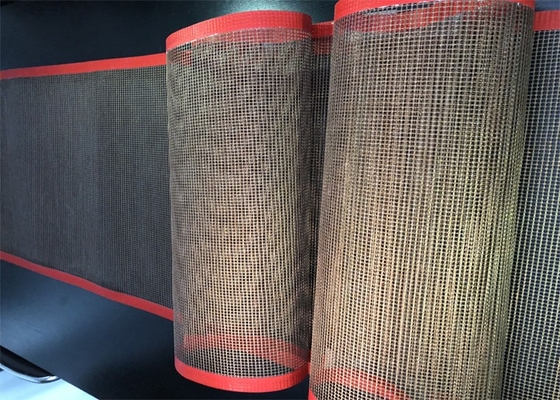

1mm 2mm 4mm Aperture PTFE Coated Fiberglass Conveyor Belts For Food Industry
PTFE Conveyor Belt Description
PTFE conveyor belt and high temperature resistant conveyor belt. conveyor belt is divided into teflen mesh conveyor belt and teflen high-temperature cloth, both of which are made of teflen resin coated with glass fiber cloth.Teflen conveyor belt is also known as teflen conveyor belt, teflen conveyor belt, The teflen mesh conveyor belt is defined with mesh size, mainly including 1 x 1MM, 2 x 2.5mm, 4 x 4MM, 10 x 10MM, etc., and is divided into single and double weft teflen mesh conveyor belt according to the longitude and latitude lines.teflen high temperature cloth is used to distinguish the specification by thickness, and the thinnest is up to 0.08MM.
|Standing Temperature||70 to 260|
PTFE Conveyor Belt Features
Used for low - 70 ℃, high temperature 260 ℃, has the climate resistance, anti-aging.Through practical application, such as under the condition of 250 ℃ high temperature placed 200 days in a row, not only low intensity will not change, and also do not reduce weight;
Placed under the high temperature of 350 ℃, 120 hours, the weight only decreases about 0.6%;In 180 ℃ cryogenic circumstance and can keep the original softness.
PTFE Conveyor Belt Specification
|Item||Aperture||material||Thickness||weight||temperature resistance||max width||Tensile strength|
|1||1x 1mm||Fiberglass||0.5mm||370g /m 2||-70 -260 ℃||4m||310/290 N/cm|
|2||2x 2mm||Fiberglass||0.7mm||450g /m 2||-70 -260 ℃||4m||350/310 N/cm|
|3||4x 4mm||Fiberglass||1.0mm||400g /m 2||-70 -260 ℃||4m||390/320 N/cm|
|4||4x 4mm||Fiberglass||1.0mm||450g /m 2||-70 -260 ℃||4m||390/320 N/cm|
|5||4x 4mm||Fiberglass||1.2mm||600g /m 2||-70 -260 ℃||4m||895/370 N/cm|
|6||4x 4mm||Fiberglass||1.0mm||500g /m 2||-70 -260 ℃||4m||395/370 N/cm|
|7||4x 4mm||Fiberglass||1.0mm||500g /m 2||-70 -260 ℃||4m||900/600 N/cm|
|8||4x 4mm||Fiberglass||1.0mm||550g /m 2||-70 -260 ℃||4m||395/370 N/cm|
|9||10x 10mm||Fiberglass||1.2mm||450g /m 2||-70 -260 ℃||4m||360/300 N/cm|
|10||0.5x 1mm||Fiberglass||0.5mm||420g /m 2||-70 -260 ℃||4m||310/290 N/cm|
|11||2x 2.5mm||Fiberglass||0.9mm||600g /m 2||-70 -260 ℃||3m||390/320 N/|
PTFE Conveyor Belt Application
1. mesh conveyor belt has the characteristics of the mesh is easy to breathe freely, so widely used in textile printing and dyeing, printing drying conduction band, screen printing, UV drying, light solid machine, offset printing machine, dryer, non-woven drying machine, high frequency dryer, food baking machine conduction band, temperature control chamber, flux type rapid drying of ink and general water items such as drying equipment.
2. The high temperature cloth has the characteristics of high temperature resistance, low friction coefficient and good insulation.
