Product Details:
Payment & Shipping Terms:
|
| Name: | Steel Card Interface Polyester Sludge Dewatering Belt Acid Resistant | Key Word: | Mesh Belt Blue Color City Specific |
|---|---|---|---|
| Size: | 1-50m | Application: | Paper Mill Industry |
| Advantage: | High Wear Resistance | Packing: | Plastic Bag + Wooden Case |
| Certificate: | ISO9001 | Brand Name: | R&K |
| High Light: | large loop sludge dewatering belt,acid resistant sludge dewatering belt,polyester non revealed sludge dewatering belt |
||

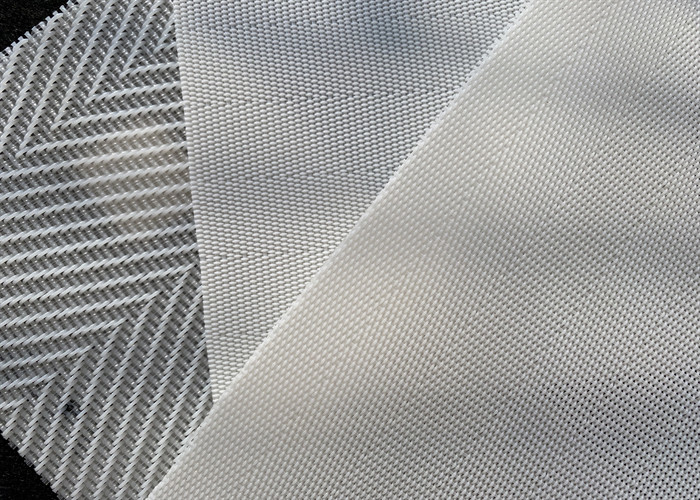

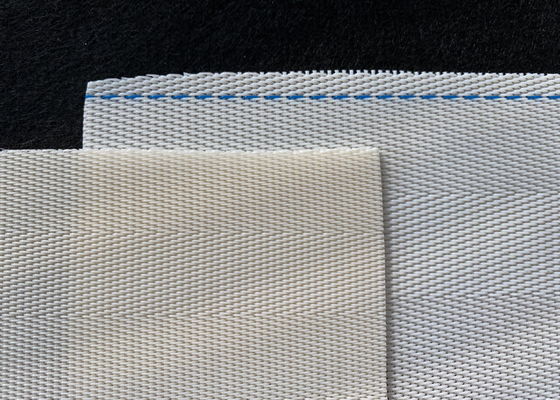

Steel Card Interface Polyester Sludge Dewatering Belt Acid Resistant
Polyester Sludge Dewatering Belt Introduction
Polyester sludge dewatering belt have the characteristics of good water permeability
air permeability and non-revealed sludge, acid-resisting and alkali-resisting. Because
of their designing structure, the sludge can be peel off easily from the filter cake so the screen
are easily cleaned and have a long working time. Mainly matching with belt type filter press
vacuum rubber belt filter and vacuum horizontal belt filter
Polyester Sludge Dewatering Belt Features
| Name | Acid-resisting 100%Polyester Mesh Belt Durable For Paper Sludge Dewatering | Color | White, Blue, Red |
|---|---|---|---|
| Keyword | Polyester Mesh Belt | Application | Sludge Dewatering Belt |
| Material | 100%Polyester | Joint | Endless,Steel-clip,Spiral Ring |
| High Light |
mesh material fabric,plain weave mesh |
||
Polyester Sludge Dewatering Belt Advantage
1 Good permeability air permeability
2 Non-revealed sludge
3 Acid-resisting alkali-resisting heat resistance(180 °C)
4 Because of their designing structure, the sludge can be peel off easily after pigeonhole filter
so the screen are easily cleaned and have a long working time
5 Therefore they are designed specially for sludge dehydration
6 To make the culture paper, printing paper, and packing paper
7 Filled or unfilled to achieve different filtration characteristics
Polyester Sludge Dewatering Belt Date Sheet
| Weaving Type | Model |
Thread Diameter (mm) |
Air Permeability (m3/m2h) |
||
| Warp | Weft | filled with stuff | |||
| Large Loop | 4070 | 0.9 | 1.1 | 0.9x4 | 20000x500 |
| 0.9x5 | |||||
| Medium Loop | 3868 | 0.7 | 0.9 | 0.8x3 | 18500x500 |
| 0.8x4 | |||||
| Small Loop | 3252 | 0.52 | 0.7 | 0.68x3 | 15000x500 |
