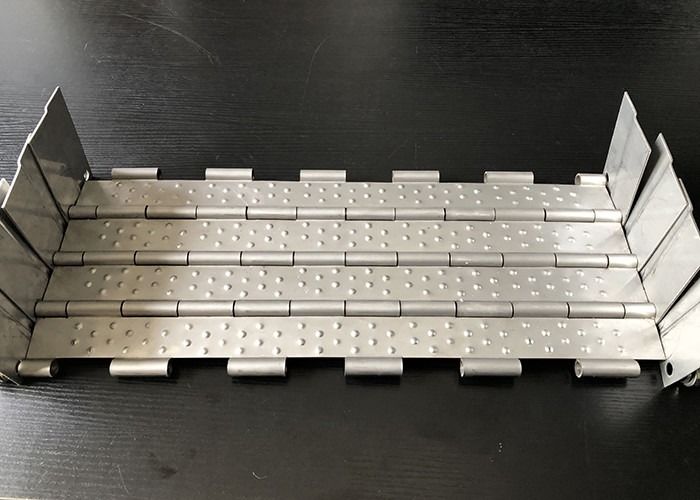

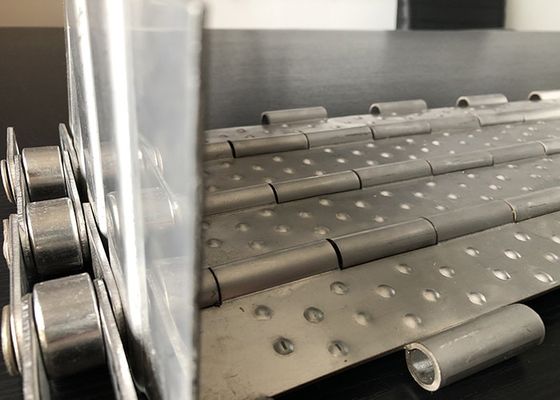

Heavy Duty 1mm 316l Plate Link Conveyor Belt

Heavy Duty 1mm 316l Plate Link Conveyor Belt
Heavy Duty 1mm 316l Plate Link Conveyor Belt Heavy Duty 1mm 316l Plate Link Conveyor Belt

Large Image :  Heavy Duty 1mm 316l Plate Link Conveyor Belt

Product Details:
Place of Origin: China
Brand Name: Reking
Certification: CE SGS
Model Number: Plate Conveyor Belt
Payment & Shipping Terms:
Minimum Order Quantity: 3 meters
Price: Negotiable
Packaging Details: plywood box
Delivery Time: up to your quantity
Payment Terms: T/T L/C Western Union Paypal
Supply Ability: 5000 meters per month
Detailed Product Description
Belt Name: Wood Transport Machine Heavy Duty Baffles Added Plate Conveyor Belt Keywords: Plate Conveyor Belt
Plate Thickness: 1-3mm Main Feature: Heavy Duty Belt
Package: Plywood Box Belt Usage: Wood Transport Machine
Chain Pitch: 38.1mm 50.8mm 63.5mm Material: Iron 201 304 316 316l Stainless Steel
High Light:

1mm plate conveyor belt

,

316l plate link conveyor belt

,

1mm plate link conveyor belt

Heavy Duty 1mm 316l Plate Link Conveyor Belt





Plate Link Conveyor Belt Introduction

  1. Plate Conveyor Belt is a very robust belt that is made of stainless steel plate and driven by sprocket . Pefect for conveying small products , smooth running , easy to maintain , durable , counstructed of plateds or hinges linked together by means of cross rods .The belt is almost always equipped with side chains .The chains are secured by a ring welded at the cross rods ends
  2. Plate Conveyor Belt is  also called hinged steel belting, plate link conveyor belts, chain plates are a type of conveying device made of steel plates and hinge pins or connection rods. Compared with wire belts, the metal plate conveyor belt can supply larger contacting area, flat and smooth surface for drying, sorting and conveying.

Plate Link Conveyor Belt Common Size



Material
carbon steel, SUS 201, 304 , 316 316L
Plate thickness
0.8 mm, 1 mm, 1.2 mm, 1.5 mm, 2 mm, 2.5 mm, 3 mm or customized
Rod pitch
19.05 mm, 25.4 mm, 31.75 mm, 38.1 mm, 50.8 mm, 76.2 mm or customized
Connection rod diameter
5 mm, 6 mm, 8 mm, 10 mm, 12 mm or customized
Surface treatment
hot dipped galvanized, blacking



Plate Link Conveyor Belt Features

  1. Flat and smooth surface , so the belt can carry small and unstable products
  2. Heavy load can be transport
  3. High strength against pressure,so can be applied for process under pressure
  4. High temperature resistant
  5. Nice choose for textile products industrial of refining and washing process
  6. Aperture can be increased for high air permeablity and hydration capacity
  7. Reinforcement plate links can be used for heavy load and high speed

 Plate Link Conveyor Belt Application

  1. Plate Conveyor Belt can be Used to washing, drying, cooling, heat treatment of the transmission line, the spiral tower in food, frozen bread line machinery transmission, spraying,
  2. Plate Conveyor Belt widely used in cleaning machinery and heavy transport machinery;
  3. Plate Conveyor Belt Widely used in light industry machinery, sterilization machine,silk printing and dyeing, food, power generation, pharmaceuticals, garment processing industries.such as automatic line.

Plate Link Conveyor Belt Quality Control



Heavy Duty 1mm 316l Plate Link Conveyor Belt 0Heavy Duty 1mm 316l Plate Link Conveyor Belt 1

Plate Link Conveyor Belt Package

Heavy Duty 1mm 316l Plate Link Conveyor Belt 2

Plate Link Conveyor Belt Workshop

Heavy Duty 1mm 316l Plate Link Conveyor Belt 3Heavy Duty 1mm 316l Plate Link Conveyor Belt 4
