Product Details:
Payment & Shipping Terms:
|
| Spiral Pitch: | 2.5-50mm | Rod Pitch: | 7-60mm |
|---|---|---|---|
| Belt Application: | Biscuit Baking | Wire Diameter: | 0.8-4mm |
| Belt Material: | 304 316 316L Stainless Steel | Keywords: | Conveyor Wire Mesh Belt |
| Belt Feature: | Food Grade And Long Life Time | Belt Name: | Biscuit Baking Oven 316l SS Balanced Weave Conveyor Wire Mesh Belt |
| High Light: | stainless steel wire conveyor belt,metal mesh belt |
||

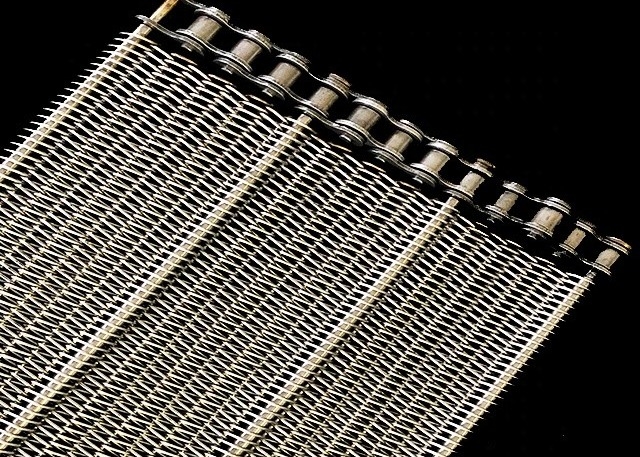

Biscuit Baking Oven 316l SS Balanced Weave Conveyor Wire Mesh Belt
Conveyor Wire Mesh Belt Data Sheet
| Belt Name | Biscuit Baking Oven 316l SS Balanced Weave Conveyor Wire Mesh Belt |
| Wire Diameter | 0.8-4mm |
| Rod Pitch | 7-60mm |
| Spiral Pitch | 2.5-50mm |
| Belt Material | carbon steel , 201 304 316 316L 310 Stainless Steel |
| Belt Width & Length | We can produce as the width and length you want |
Conveyor Wire Mesh Belt Introduction
Conveyor Wire Mesh Belt has the double balanced weave belt construction and it is an assembly of pairs of right and left hand spirals properly spaced by crimped connectors . It is one of the most economic and widly used metal conveyor belt in the world . It has the features of excellent flexibility , strong tolerance , flat and smooth surface . So that it is can be used in many factories and areas .
Conveyor Wire Mesh Belt Features
Balanced weave conveyor belts has flat and smooth surface, it makes the belt can be used into small product conveying . The belt material is stainless steel grade and can have a long life use time . Also the belt has large open area and it makes the air goes through easily . The belt has simple woven structure so it makes the belt is lower price .
Conveyor Wire Mesh Belt Application
1 The belt has large open area and can make the air goes through easily. so it is can be used into drying and cooling conveyor system .
2 The belt has smooth and dense surface so it is can be used into convey small products .
3 The belt has food grade material : 316l stainless steel so it is can be used into food industry .
