Product Details:
Payment & Shipping Terms:
|
| Width: | 1-3.65m | Hole Shape: | Square |
|---|---|---|---|
| Usage: | Liquid Filter | Weave Style: | Plain Woven Nylon Mesh |
| Technique: | Woven | Feature: | Corrosion Resistance |
| High Light: | 500 Micron Nylon Filter Mesh,Monofilament Nylon Filter Mesh,Nylon Monofilament Filter Mesh |
||

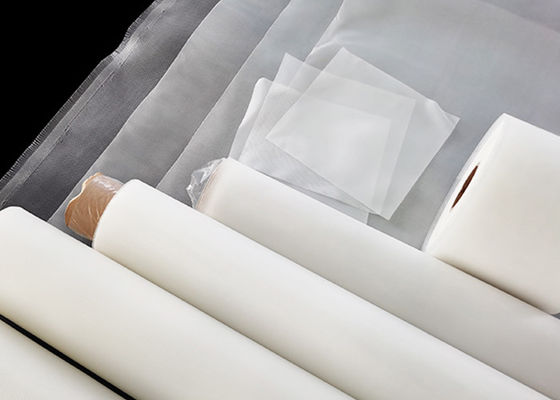

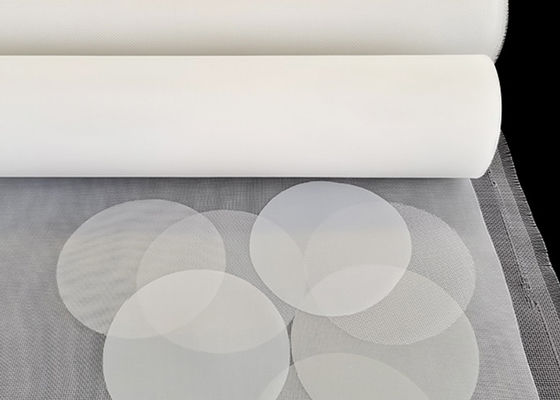

Monofilament Plain Weave Food Grade 500 Micron Nylon Filter Mesh For Liquid Filter
Product Introduction
| nylon filter mesh | |
| Specification: 7T-165T | Material: Nylon, stainless steel wire |
| Thread Diameter: 31-550 micron | Width: 0.6-3.65m |
| Mesh Opening: 32-1931 micron | Hole shape: square |
| Thickness: 51-1100 micron | Mesh Count: 10-381 mesh/inch |
| Weave type: plain weave, woven filter | Usage: liquid filter, air filter, dust filter |
| Type: filter mesh, filter cloth, mine sieving mesh, filter elements, filter disc, filter cylinder | |
|
Characteristic:
|
|
Product Description
Nylon net is a chemical fiber braided net made of chemical fibers such as nylon yarn, nylon yarn, polyester yarn, and nalon yarn. The nylon fiber has the function of high temperature resistance and alkali resistance, and the polyethylene has the effect of acid resistance. , Nylon mesh is the general term for these chemical fiber woven mesh.
Micron nylon filter mesh is made of PA6 or PA66 monofilament yarn in plain weave or twill weave. It has smooth surface, uniform structure and ranges of mesh counts for industrial, medical and other filtration applications
This can have plain weave or double warp structure and can be used in Filtration, Screening, Sifting or Milling applications from the production of filter bags, and screens to being injection moulded as special filter applications.
Product Application
Nylon filter mesh are widely used in:
Mining
Agriculture
Aquaculture
medical and laboratory.
infusion and transfusion filters
micro-aggregate filters
arterial and venous filters in oxygenator reservoirs and blood bag
Making nylon filter bags
Its main function is to filter and can be used in various industries. Strong adaptability to filtration
Product Features
It has high tension threshold and breaking point
It has high modulus, low elongation monofilament nylon yarn
It has resist to chemicals, abrasion, heat and moisture
Minimal tension loss during stretching process
Improved registration due to stable fabric tension
Good antistatic
No surface treatment
Product Details
1.Due to their uniformity they can be woven with great precision to give exact and regular apertures
