Polyester Square Hole Mesh Belt With High Air Permeability 6000-32000 M3/M2h For Conveyor

Product Description:

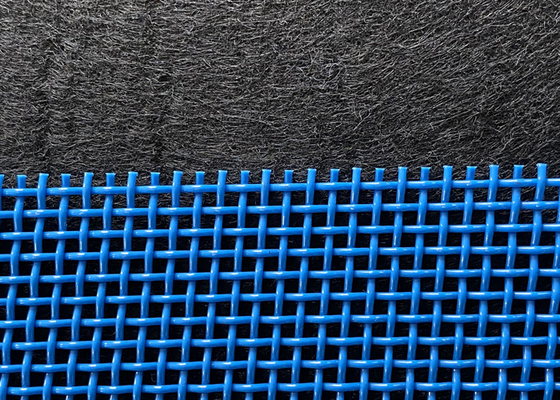

Blue Polyester Square Hole Mesh Belt ,food industries drying,washing and conveyor is widely used in special lines

such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp

fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt

This kind of Polyester Mesh Belt has features of high temperature resistant long life span food grade material easy to clean

Polyester linear screen cloths are mainly the 2-shed and 3-shed polyester plain woven fabric,which widely used in special lines

such as mining sieving,mineralseparation,goldbenefication,paper pulps making,sulplate pulp packing and cardboard pulp

fiberboard plants as well as tailings disposal,colliery,food and medicine as filter belt

Features:

• Acid resistant, alkali resistant, high temperature resistant,and long service life.
• With smooth surface, the tensile strength,Good air permeability.
• High heat transfer efficiency, for the user to save energy.
• Install easy to use, interface without mark

• Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
  		Warp	Weft	Warp	Weft
  2-shed plain weaving	5802	0.75	0.8	4.7-5	4.8-5	940	20000
  	5102	1	1	4.7-5.2	4.3-5	1600	15000
  	6702	0.7	0.7	8	7		11000
  	7102	0.7	1	6.6-7	4.3-4.6	1100	15000
  	8552	0.55	0.55	7.5-8	8.5-9	850	850-6500
  	9452	0.45	0.45	10	8.6	1600	16000
  	9502	0.5	0.5	8.5-9	10-10.5	750	10000
  	12502	0.5	0.5	13.5	8.5	1800	6500
  3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
  	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
  	7803	0.7	0.8	8	8	1600	10000
  	20353	0.3	0.35	22	14.5	1200	13000

Technical Parameters:

Applications:

Packing and Shipping:

The Polyester Dryer Screen is carefully packaged to ensure safe delivery to our customers. The packaging process consists of the following steps:

• The dryer screen is first rolled up tightly and placed in a protective plastic bag to prevent any damage during transportation.
• The plastic bag is then placed in a sturdy cardboard box for added protection.
• Additional bubble wrap or packing material is added to the box to further secure the dryer screen.
• The box is sealed and labeled with the product name and shipping information.

Our shipping methods are as follows:

• For domestic orders, we use reliable courier services such as UPS, FedEx, or USPS.
• For international orders, we use air or sea freight services depending on the customer's preference and location.
• We also offer expedited shipping options for urgent orders.

Customers will receive a tracking number once their order has been shipped so they can easily track their package's delivery status.

At Polyester Dryer Screen, we take great care in packaging and shipping our products to ensure they arrive in perfect condition

for our customers to use and enjoy
