Product Details:
Payment & Shipping Terms:
|
| Features: | Chemical Resistance | Brand Name: | REKING |
|---|---|---|---|
| Keywords: | PTFE Conveyor Belts | Material: | Fiberglass And Kevlar Material |
| Hole Size: | 1*1mm 2*2mm 4*4mm 6*6mm 8*8mm | Width: | 30cm To 4.3m |
| Weight: | 120-160g/m2 | Length: | We Will Do According To Your Demands |
| High Light: | heat resistant ptfe conveyor belts,fiberglass mesh ptfe conveyor belts,non-stick ptfe conveyor belts |
||

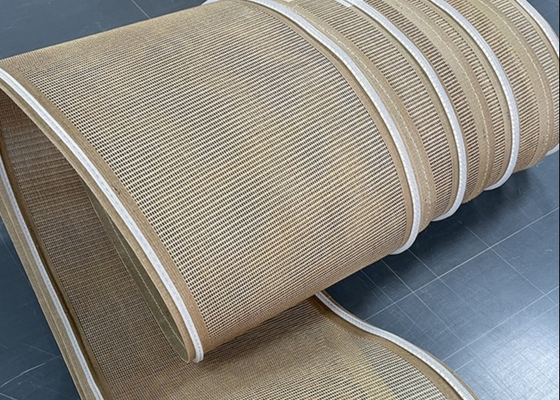

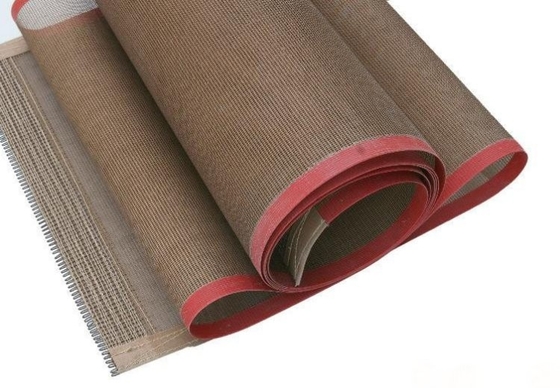

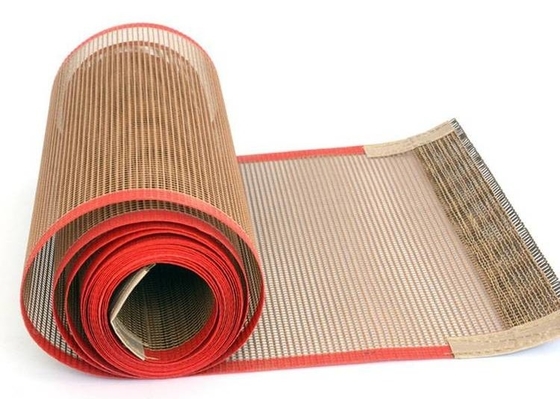

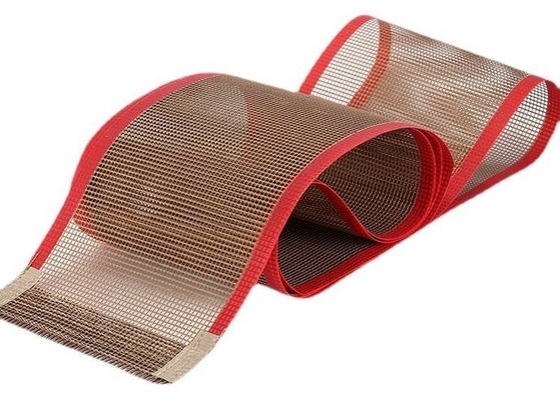

Heat-resistant fiberglass mesh with good air permeability and non-stick
Advantages of conveyor belt
1. It is used between -196 °C and 300 °C, with weather resistance and anti-aging.
2. Resistant to chemical corrosion, resistant to strong acids, strong alkalis and various organic solvents;
3. Non-adhesive: not easy to adhere to any substance. It is easy to clean all kinds of oil stains, stains or other attachments attached to its surface; almost all adhesive substances such as paste, resin, paint, etc. can be easily removed;
4. Dimensional stability (extension coefficient less than five thousandths), high strength, with good mechanical properties;
5. Anti-bending fatigue, can be used for smaller wheel diameters,
6. Resistant to pharmaceutical agents, non-toxic, almost resistant to all pharmaceutical products;
7. Breathability: The air permeability of the conveyor belt is high, the heat source is reduced, and the drying efficiency is improved.
Conveyor Belt Specification
| Mesh Size | Material | Thickness | Weight | Tensile Strength |
| 1*1mm | Fiberglass | 0.5mm | 370g/ m2 | 310/290N/cm |
| 2*2mm | Fiberglass | 0.7mm | 450g/ m2 | 350/310N/cm |
| 4*4mm | Fiberglass | 1.0mm | 400g/ m2 | 390/320N/cm |
| 10*10mm | Fiberglass | 1.2mm | 450g/ m2 | 360/300N/cm |
| 0.5*1mm | Fiberglass | 0.5mm | 420g/ m2 | 310/290N/cm |
| 2*2.5mm | Fiberglass | 0.9mm | 600g/ m2 | 390/320N/cm |
Conveyor Belt Application
It is suitable for use of teflen conveyor belt for hot air and heat transfer conditions .
A : textile , printing and dyeing : printing drying , bleaching cloth drying , fabric shrinkage drying , non-woven cloth drying and other drying road , drying conveyor belt
B : silk screen , printing: loose dryer , offset printing press , UV series light solid machine , paper oil drying , UV drying , plastic products silk printing drying and other drying road , oven conveyor belt .
C : other items : high frequency drying , microwave drying , all kinds of food freezing and thawing , baking , packaging thermal contraction , general water cut of items fast drying , solvent ink drying chamber conduction band.
Packaging & Delivery Service
1. We always use poly bag for the goods which ship by air, so that customer can save freight free
2. Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3. There also have some customer request us to use the carton to packing their goods
4. We can according to customer's requirements
