Product Details:
Payment & Shipping Terms:
|
| Material:: | 100% Polyester | Key Word: | Easy To Clean, White |
|---|---|---|---|
| Size:: | Customer's Request | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Color: | Blue White And Customizable |
| Name: | Blue Polyester Monofilament Anti-Static Conveyor Belt | ||
| High Light: | blue monofilament polyester conveyor belt,anti static polyester conveyor belt,anti static polyester mesh conveyor belt |
||

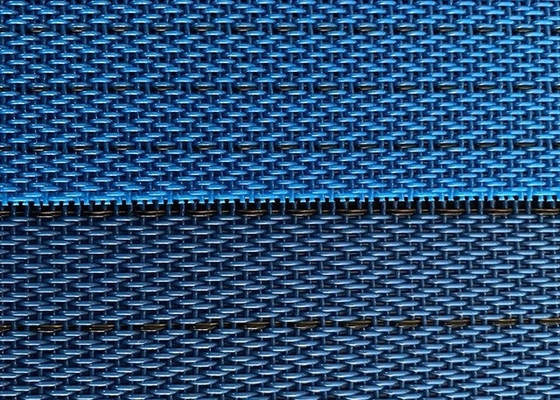

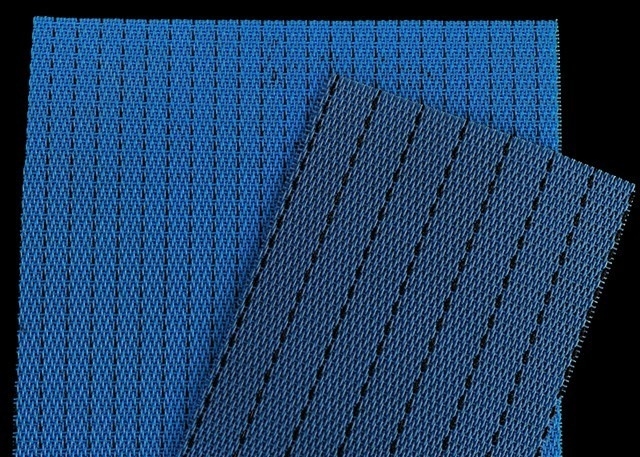

Blue Polyester Monofilament Anti-Static Conveyor Belt
Product Introduction
Polyester Anti-static mesh fabric is liable to generate friction electrostatic when the equipment is
running at high speed. There is a conductive fiber through the polyester anti-static fabric which
can release the friction electrostatic, thus play a role in anti-static.
Polyester Anti-static Fabrics are mainly used in environmental protection, high density board
making, rubber and Chemical industry.
| Type | Wire Diameter mm | Density/cm | Tensile strength | Weight Kg/m2 |
Thickness Mm |
Air Permeability m3/m2h |
CFM 127/Pa |
Electric Conductivity |
|||
| warp | weft | warp | weft | Surface | Joint | ||||||
| RK31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 2976 | 186 | 5*10*10*10 |
| RK14804 | 0.65 | 0.80 | 14.8 | 7.2 | 2000 | 900 | 1.6 | 1.95 | 6800 | 430 | 5*10*10*10 |
| RK4106-3 | 0.50 | 0.30 | 22.8 | 2200 | 900 | 1.5 | 1.80 | 8000 | 500 | 5*10*10*10 | |
| 0.70 | |||||||||||
| RK14708 | 0.64 | 0.70 | 15 | 8 | 2000 | 900 | 1.03 | 1.78 | 11200 | 700 | 6*10*10*10 |
| RK12708 | Flat0.46*0.68 | 0.70 | 14.1 | 7.3 | 2000 | 900 | 0.90 | 1.76 | 8000 | 500 | 6*10*10*10 |
Product Description
Antistatic mesh belt is widely used in airlaid, spunlaid, wetlaid & drylaid nonwoven forming, wood fiberboard, dust-free paper, chemical fiber, and other industries.
Used as continuous pre-pressing mesh belt in chemical fiber, pulp dry papermaking, fiberboard, and other industries.
In applications, such as spunbond, meltblown, card and wetlaid nonwovens, the conductive fiber ensures reliable electrostatic discharge.
Characteristic of antistatic mesh belt can also be used in environmental protection, rubber, chemical industry and other anti-static industries.
Product Features
The conductive process conveyor belt has the following important advantages
Excellent conductive threads ensure safe static discharge performance, prevent static accumulating.
The air permeability adjustable to fulfill the various requirements of different uses
Uniform air permeability can achieve an excellent ventilation effect and eliminate the possibility of clogging.
Tight warp and weft connection makes this fabric not easy to deform.
Good heat setting post-treatment for stable structure, low thermal shrinkage, low thermal elongation, excellent running performance, which could ensure straight run in minimum off-tracking, also stable in dimension.
Excellent anti-wear strength and moisture resistance.
Low thermal shrinking and less elongation at heat.
The even and smooth surface is easy to clean.
Has good chemical resistance (such as acids and organic solvents).
Product Advantage
Anti static mesh belt offers good strength, flat mesh surface, good air permeability and stable property against heat and
moisture. The screen mesh shows low thermal shrinking, less elongation at heat, it is resistant to most acids and organic
solvents, hence safe for food processing and many other applications.
