Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polyester Paper Making Forming Fabric | Material: | 100% Polyetser |
|---|---|---|---|
| Advantage: | Long Service Time | Color: | White Blue Green |
| Factory: | Factory | Keyword: | Paper Machine Fabric |
| High Light: | forming machine polyester mesh conveyor belt,paper making polyester mesh conveyor belt,papermaking forming machine polyester mesh belt |
||

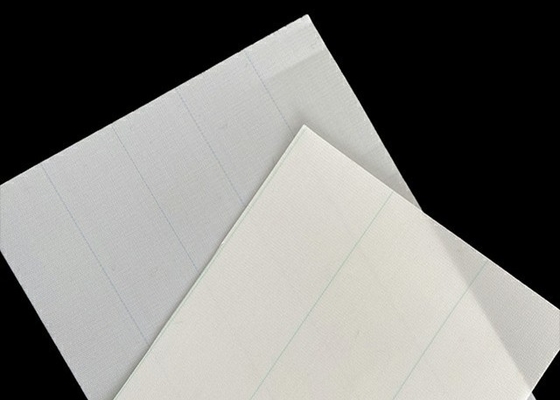

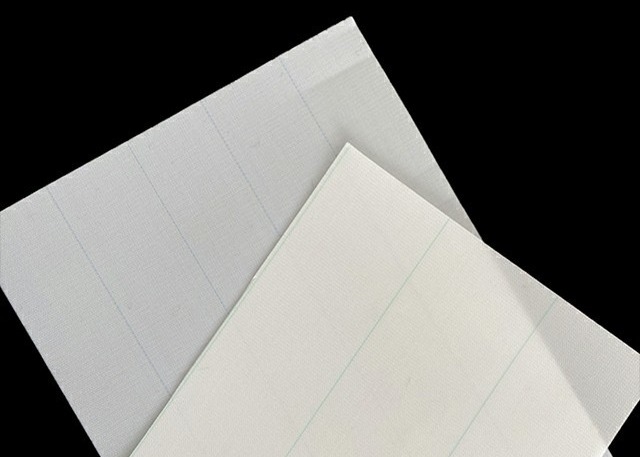

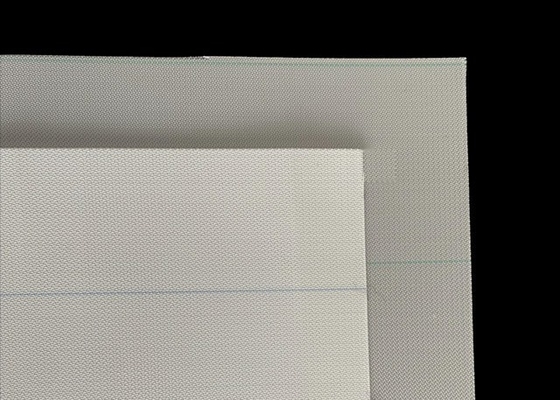

Forming Machine Mesh Belt Polyester Conveyor Belts For Paper Making
1.Introduce
Polyester paper making forming mesh can be divided into 4-shed,5-shed,7-shed,8-shed single layer fabric 7-shed,8-shed double layer fabric,8-shed16-shed double and a half layer fabric, and three layer fabric according to the weaving type.
2. Peculiarity
2.Datesheet
| Polyester Dryer Mesh Papermaking Forming Fabric | |||||||
| Weaving Types | Model | Thread Dia.(mm) | Density(No.s/cm) | Srength (N/cm) |
Air Permeability (m3/m2h) |
||
| Warp | Weft | Warp | Weft | ||||
| 3-shed | 22503 | 0.5 | 0.5 | 24 | 12 | 2000 | 8000 |
| 22453 | 0.45 | 0.45 | 24 | 13 | 2000 | 8500 | |
| 24503 | 0.5 | 0.5 | 25 | 12 | 2000 | 7000 | |
| 24453 | 0.45 | 0.45 | 25 | 13 | 2000 | 6700 | |
| 4-shed | 20504 | 0.5 | 0.5 | 22 | 12 | 2000 | 15000 |
| 22504 | 0.5 | 0.5 | 24 | 12 | 2000 | 12000 | |
| 24504 | 0.5 | 0.5 | 26 | 12 | 2100 | 11000 | |
| 18504 | 0.5 | 0.5 | 20 | 11 | 1800 | 8000 | |
| round wire fabric | 4106 | 0.5 | 0.7 | 22.8 | 12.4 | 2200 | 6800 |
| 0.3 | |||||||
| Flat wire fabric | 4106-1 | 0.58 | 0.35 | 21 | 15 | 2000 | 2500 |
| 0.37 | 0.68 | ||||||
| 4106-2 | 0.58 | 0.35 | 21 | 14 | 2000 | 3000 | |
| 0.37 | 0.68 | ||||||
| 4106-3 | 0.58 | 0.35 | 21 | 13 | 2000 | 4000 | |
| 0.37 | 0.68 | ||||||
| 4106-4 | 0.58 | 0.35 | 21 | 13.5 | 2000 | 3500 | |
| 0.37 | 0.68 | ||||||
Paper making polyester forming wire can be divided into 4-shed, 5-shed, 8-shed, 16-shed, 24-shed according to the weaving type, etc.
Paper making polyester forming wire can be divided into single layer fabric, double layer fabric, two-and a half layer fabric and three-layer fabric according to the category.
4-shed and 5-shed series single layer fabric is standard type of polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and so on. Suitable for common fourdrinier paper machine.
