Product Details:
Payment & Shipping Terms:
|
| Wire Diameter: | 0.4-0.9mm | Packing: | Woven Bags And Wooden Boxes |
|---|---|---|---|
| Width: | 0.1-6 M | Sample: | Available |
| Surface: | Smooth And Flat | Edge Disposal: | Glue Edge |
| Application: | Paper Pulp And Juice Squeegee,mine Smelting | Joint: | Steel Card Interface |
2-Shed And 3-Shed Polyester Square Hole Mesh Belt Used For Packaging Paper Manufacturing
Polyester Square Hole Mesh Belt Product Description:
Polyester square hole fabric conveyor belt are made with special first quality yarns in 100% polyester.
Every polyester spiral dryer fabric conveyor belt heat-set granting a high degree of stability and long running life
Polyester square hole fabric conveyor belt have the characteristics of stable running, not easy to wrinkled, high filtration rate and it can peel off easily from the filter cake.
Polyester square hole fabric conveyor belt are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity.
Polyester square hole fabric conveyor belt is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry.
Polyester square hole fabric conveyor belt Also could be used as conveyor belt and the laminating machine matching belt.
Features:

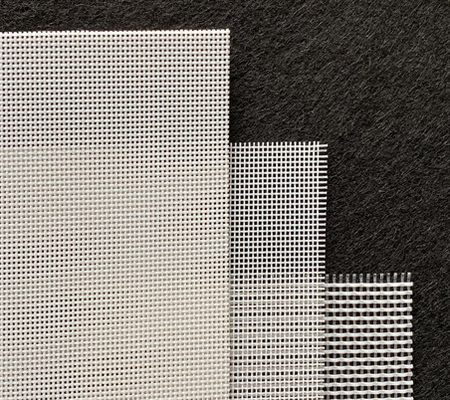

Our polyester plain woven fabrics (Linear screen) have two types 2-sheds(1/1) and 3-sheds (1/2)
They are widely used in the paper industry to produce pulp boards, wood-based board factories packaging paper industry
and linear board-making industry It is also used for the production of high-density boards, food drying tea drying feed drying fruit
and vegetable transportation drying belt filter press material screening environmental protection (WWTP) thickening
and other filtration industries
Technical Parameters:
| Weaving Type | Model | Thread Diameter | Density(No.s/cm) | Strength ((N/cm) | Air Permeability (m3/m2h) | ||
| (mm) | |||||||
| Warp | Weft | Warp | Weft | ||||
| 2-shed plain weaving | 5802 | 0.75 | 0.8 | 4.7-5 | 4.8-5 | 940 | 20000 |
| 5102 | 1 | 1 | 4.7-5.2 | 4.3-5 | 1600 | 15000 | |
| 6702 | 0.7 | 0.7 | 8 | 7 | 1600 | 11000 | |
| 7102 | 0.7 | 1 | 6.6-7 | 4.3-4.6 | 1100 | 15000 | |
| 8552 | 0.55 | 0.55 | 7.5-8 | 8.5-9 | 850 | 850-6500 | |
| 9452 | 0.45 | 0.45 | 10 | 8.6 | 1600 | 16000 | |
| 9502 | 0.5 | 0.5 | 8.5-9 | 10-10.5 | 750 | 10000 | |
| 12502 | 0.5 | 0.5 | 13.5 | 8.5 | 1800 | 6500 | |
| 3shed plain weaving | 8603 | 0.5 | 0.6 | 10 | 9 | 1600 | 14000 |
| 8903 | 0.9 | 0.9 | 7.8-8 | 5-5.5 | 2100 | 7500-8500 | |
| 7803 | 0.7 | 0.8 | 8 | 8 | 1600 | 10000 | |
| 20353 | 0.3 | 0.35 | 22 | 14.5 | 1200 | 13000 | |
Hebei Reking's Polyester square hole Belt is an efficient, cost-effective and high-performance filter mesh belt used for sludge dewatering, drying and filtration of food, chemical, pharmaceutical, and other industries. It is made of polyester monofilament
and its model number is Reking-001. The place of origin is Hebei shijiazhuang, and the product has passed ISO9001 certification
The minimum order quantity is 1 pic, and the price is negotiable. The packaging details are wood, and the delivery time is based on order quantity. The payment terms are 7-15 days, and the supply ability is 10000 pics
The CFM of the Polyester square hole Belt is 100-1500, and the length is 0.15-100m. The wire diameter is 0.4-1.1mm
and the sample is available. The thickness is 1.3-3.5mm. It is widely used in industrial sludge dewatering, filtration and drying applications, including food, chemical, pharmaceutical, and other industries
It is also known as filter mesh belt, dryer belt, dewatering belt and woven mesh belt
1.Filtering and separating in the colliery, food,salt and mine industry
2.Pulp making,Sulplate pulp packing and cardboard pulp
3.Fiberboard plants, Medicine,printing,drying industry as conveyor belt 4.Pharmacy,environment protection
5.Process hides,shoe-making,clothing,ceramics etc as a conveyor belt
6.Foodstuffs processing
We provide customized services for Filter Mesh Belt, Filter Belt, Dryer Belt, Polyester Sludge Dewatering Belt. The brand name is Hebei Reking, Model Number is Reking-001. Place of Origin is Hebei Shijiazhuang. It is certified with ISO9001. The minimum order quantity is 1 pic. The price is negotiable. The packaging details are wood, and the delivery time is based on the order quantity. The payment terms are 7-15 days, and the supply ability is 10000 pics. The packing is woven bags and wooden boxes. The CFM is 100-1500, and the temperature resistance is 200℃. Samples are available, and the joint is steel card interface.
Packaging and Shipping for Polyester Sludge Dewatering Belt:
