Product Details:
Payment & Shipping Terms:
|
| Product Name: | 201 304 Stainless Steel Compound Balanced Belt With Chain Edge For Food Industry | Keywords: | Compound Balanced Belt |
|---|---|---|---|
| Belt Material: | 201 304 Stainless Steel | Main Features: | Food Grade |
| Application: | Food Frying | Size: | Do The Size According To Clients Demands |
| Working Temparture: | 700-800 Degree | Package: | Plywood Box |
| High Light: | SUS304 Compound Balanced Belt,Frying Oven Compound Balanced Belt,Frying Oven balanced weave belt |
||
SUS304 Food Grade Compound Balanced Belt For Food Frying Oven
Introduction of compound balanced belt
Compound balanced belt, also called as cord weave conveyor belts, refer to series of right and left spirals compound together to form a tighter conveying surface comparing with balanced or universal weave belts. This tightly woven structure makes compound weave conveyor belts ideal for baking, conveying small products and top heavy loads.
The compound belt is essentially a balanced spiral belt that has multiple spirals and cross rods per pitch. This compound structure closes up the apertures within the belt, giving compound weave its characteristic high density and flat surface. It is similar to a balanced weave besides smaller opening and far denser weave. As a result of this construction, Compound Weave Conveyor Belts offer an extremely close and flat mesh for applications where very small items are being conveyed. The compound weave also provides a uniform heat transfer across the belt due to its high density and smooth carrying surface. These characteristics make compound weave a popular choice in a wide variety of applications, ranging from biscuit baking to sorting small mechanical components.
Features of compound balanced belt
The belts can carry small items and unstable products because belt surface is flat and smooth
The belt can convey heavy load because belt high allowable tension .
The belt can be used for processing under pressure because the belt has high strength and pressure capacity .
The belts can be used at high temperature because its material is stainless steel .
The belts can be used for textile products refining and cleaning process
Datas of Compound Balanced Belt
| Item | Food Grade Cookies Oven Carbon Steel Compound Balance Conveyor Belt |
| Material | Carbon Steel , 201 304 316 316L 310 314 Stainless Steel |
| Wire Diameter | 1-3mm |
| Spiral Pitch | 5-15mm |
| Rod Pitch | 10-25mm |
| Belt Width | 100-4000mm |
| Belt Length | at least 3m |
| Production Time | 10 days after receiving your payment |
Applications of compound balanced belt
It is widly used in baking industyr and industrial industry.
As for Baking Industry such as Cookie Baking , Tortilla Baking , Food Processing , Crackers , Biscuits and popular with all forms of continous baking applications of baked goods including cracker and cookie baking .
As for Industrial Industry , such as heat treating of small parts , hardening , tempering , Quenching . It's great for for handling small parts in heat treating and quench tank operations .

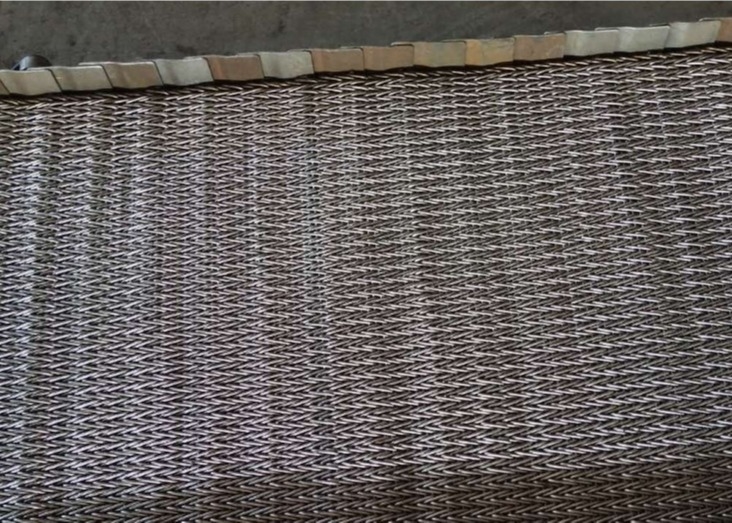

Pictures of compound balanced belt
Package and Usage of Compound Blanaced Belt
Workshop of Compound Balanced Belt
