Product Details:
Payment & Shipping Terms:
|

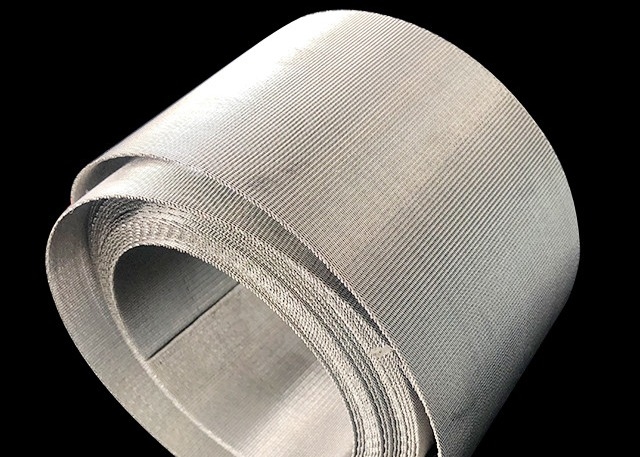

| Product Name: | 12*64 Mesh Plain Reverse Dutch Weave Stainless Steel Wire Mesh For Plastic Extruder | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Screen |
| Technique: | Woven | Feature: | Acid Resistant |
| Material: | SUS 304 | Key Word: | Stainless Steel Reverse Mesh |
| High Light: | SUS304 Extruder wire mesh,Reverse Dutch Weave Wire Mesh SUS304,Extruder wire mesh Acid resistant |
||
SS304 40*260 mesh Stainless Steel Reverse Wire Mesh Acid Resistant For conveyor belt system
1. Name: Comparison type network. According to local differences and uses, it is also called: comparison of net belt (Dutch cloth)
2. Material specifications: use high -quality stainless steel wire
3. Weaving: Reverse Dutch weaving
Low temperature resistance, low temperature resistance, ETC.
5. Specifications: Generally 10 meters long, 40mm-210mm, grid number is 40 mesh-350 grid, the maximum width is 50 cm, and special specifications can be processed and customized.
6. Uses: It is suitable for Austrian Lenzing equipment and electric wire drawing machines in Germany, Japan and other countries /regions, and casting filmmakers and coating machines. Household equipment, LANFEI 90 plastic machines, Chang Hhengli plastic machines, Yangtai plastic machines and other transportation industries. Auto leather filter for plastic extrusion machines, plastic melt filters, plastic belt filters. These products run well and often cooperate with filtering equipment to export to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and regions.
| Material | 304 stainless steel wire mesh |
| Weave | Plain weave |
| Mesh count | 20*270mesh-500*3500 mesh |
| Thread diameter | 0.25*0.2-0.025*0.015mm |
| Opening size | 3-119 micron |
| Color | silver |
| Brand name | R&K |
Parameter of Dutch mesh
|
Plain weave Dutch mesh |
||||
|
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
|
Width:1m-1.6m |
||||
