0.1-30m Red Polyester Spiral Dryer Mesh Belt With Glue For Paper Mil

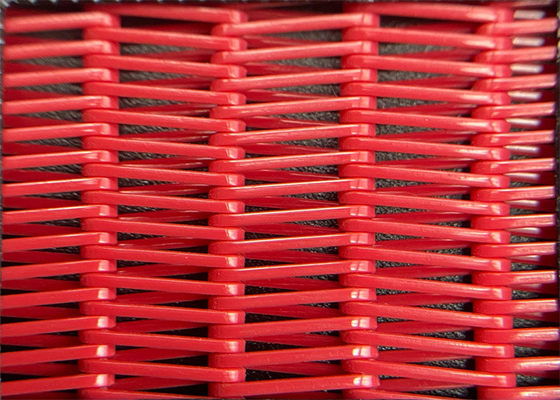

Large Image : 0.1-30m Red Polyester Spiral Dryer Mesh Belt With Glue For Paper Mil

Product Details:

Place of Origin:	China Hebei
Brand Name:	R&K
Certification:	ISO9001
Model Number:	HH-01

Payment & Shipping Terms:

Minimum Order Quantity:	1 Meter
Price:	According to customer requirements
Packaging Details:	poly bag
Delivery Time:	4-7 Work Day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000 meter per week

Contact Now

Detailed Product Description

Name:	Red Color Polyester Spiral Dryer Mesh Belt With Glue For Paper Mill And Conveyor Belt	Color::	White, Blue And Red
Size::	0.1-30m	Application::	Paper Mill Industry
Advantage::	High Wear Resistance	Packing::	Simple Packing
Material:	100% Polyester	Proper Temperature:	+150°C To -75°C
High Light:	Dryer Mesh Belt With Glue , Polyester Mesh Belt With Glue , 30m Red Dryer Mesh Belt

Red Color Polyester Spiral Dryer Mesh Belt With Glue For Paper Mill And Conveyor Belt

Polyester Mesh Belt Introduction

Polyester Mesh belt with loop is also called polyester spiral wire mesh belt,Spirl wire dryer screen

According to loops size:Polyester Mesh can be devided into large loop Polyester Spiral Mesh Belt

Medium Spiral Wire Mesh Belt,Small Loop Wire Mesh Belt.

Polyester spiral dryer fabric is made of 100% monofilament polyesteras raw material
Minimum width: 10 cm
Minimum length: 1 m
Working temperature +150°C to -75°C in dry conditions and +70°C in wet conditions

Polyester spiral press filter belt specification:

Polyester Spiral Dryer Conveyor Wire Mesh Belt
Polyester Spiral Dryer Conveyor Wire Mesh Belt
Weaving Type	Model	Thread Diameter		Air permeability
		(mm)		(m3/m2h)
		Warp	Weft
Large Loop	4070	0.9	1.1	20000±500
Medium Loop	3868	0.7	0.9	18500±500
Small Loop	3252	0.52	0.7	15000±500

Weaving Type	Model	Thread Diameter		Density(No.s/cm)		Strength ((N/cm)	Air Permeability (m3/m2h)
		(mm)		Density(No.s/cm)
		Warp	Weft	Warp	Weft
2-shed plain weaving	05802	0.75	0.8	4.7-5	4.8-5	940	20000
	05102	1	1	4.7-5.2	4.3-5	1600	15000
	06702	0.7	0.7	8	7	1600	11000
	07102	0.7	1	6.6-7	4.3-4.6	1100	15000
	08552	0.55	0.55	7.5-8	8.5-9	850	850-6500
	09452	0.45	0.45	10	8.6	1600	16000
	09502	0.5	0.5	8.5-9	10-10.5	750	10000
	12502	0.5	0.5	13.5	8.5	1800	6500
3shed plain weaving	8603	0.5	0.6	10	9	1600	14000
	8903	0.9	0.9	7.8-8	5-5.5	2100	7500-8500
	7803	0.7	0.8	8	8	1600	10000
	20353	0.3	0.35	22	14.5	1200	13000

Polyester Mesh Belt Data Sheet

Product Name	Polyester Mesh Belt White High Tension Plain Weave 100% Polyester Mesh Belt Used For Conveyor Belt
Loop Size	Small Medium Large Loop
Material	100% Polyester
Applicable Industries	Energy & Mining Food & Beverage Shops, Advertising Company , Paper Making Industry
Color	Blue , white and Red
Certificate	ISO9001
Type	Polyester Dryer Belt Polyester Sprial Press Filter Belt
Packaging	Plywood Case and woven mesh

Polyester Mesh Belt Advantage

1 Flat surface, not easily cracked

2 Good air permeability

3 Stable property against heat and moisture Low thermal shrinking

4 Less elongation at heat

5 Long lifespan

Polyester Mesh Belt Packing detail

1 We always use poly bag for the goods which ship by air, so that customer can save freight free
2 Wooden case is the best for ocean shipment, because it can effective avoid the damage during shipping
3 There also have some customer request us to use the carton to packing their goods
4 We can according to customer's requirement
