Product Details:
Payment & Shipping Terms:
|
| Material: | 100%polyester | Color: | Black， Green， White， Red |
|---|---|---|---|
| Loop Size: | Small Middle Large Loop | Usage: | Paper Making |
| Sample: | Free Sample Provide | Feature: | Flat Surface, Easy Clean |
| Wire Diameter: | 0.7 And 0.9mm | ||
| High Light: | High Temperature Resistant Polyester Mesh Belt,Paper Plant Polyester Mesh Belt,Paper Plant polyester conveyor belt |
||

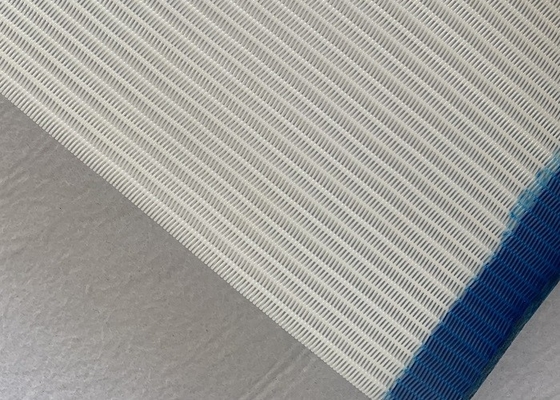

High Temperature Resistant Polyester Filter Mesh Fabric Dryer Fabric Belt For Paper Plant Dryer Screen For Paper Machine
Introduction:
Polyester spiral dryer fabrics are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity ,and widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry,also could be used as conveyor belt and the laminating machine matching belt.
The screw pressure filter is to add the filler wire into the spiral ring to reduce the air permeability and reduce the material loss on the mesh surface.
| Product Introduction | Polyester spiral dryer screen mesh belt |
| Mainly size | 0.7mm and 0.9mm wire diameter |
| Weight | 1.4KGS/square meter |
| Color | White, blue, red, black |
Advantages and Usage:
1. Stable heat and humidity resistance
2. Low thermal shrinkage and low thermal elongation
3. Resistant to most acids and organic solvents, safe for food processing
4. Polyester spiral chain belt dryer fabric belt has high strength and good air permeability, so this fabric belt is also used in high pressure water filter, horizontal belt coal washer, pulp separator, mesh belt coal washer, etc.
5. Tapes are widely used in printing and dyeing, food, salt, pharmaceutical, environmental protection and other industries.
6. Polyester spiral chain dryer fabric belt is also used in the paper industry, such as pulp drying, forming, paper making sewage treatment, etc.
Features
Acid and alkali-resistant, Wear resistance, high temperature resistance,non-toxic ( can have a long time operation at 180 degrees environment)long service life, is several times more than woven dry blanket, canvas and general dry net.
The net surface is smooth, high tensile strengthis high,air permeability is good.The heat transfer efficiency is high,can save energy for users, and it is convenient to installation and use, there are no impression in the interface.
Polyester dryer screen belt is widely used in paper making, printing and dyeing, environmental protection, processing, food processing and other industries, round wire or flat can filled into to mesh according to user needs,adjust the air permeability as you wish to meet the technical demand. The net glue edge is imported glue.The glue can still constant hard in high temperature , color is stable,can adapt to different temperature change.
|
Type |
Spiral loop width mm | Wire Diameter(mm) |
Tensile Strength (N/cm) |
Weight Kg/m2 |
Thickness mm |
Air Permeability M3/m2h |
CFM 127/pa |
|
| Spiral wire | Connection wire | |||||||
| Small Loop 5080A | 5.2 | 0.50 | 0.80 | 1800 | 1.0 | 2.1 | 15000 | 937 |
| Middle Loop 6890A | 8 | 0.68 | 0.90 | 2000 | 1.31 | 2.45 | 18000 | 1125 |
| Middle Loop 6890B | 7.15 | 0.68 | 0.90 | 2000 | 1.40 | 2.45 | 16000 | 1000 |
| Big Loop 9090A | 8 | 0.90 | 0.90 | 2300 | 1.80 | 3.03 | 19000 | 1188 |
| Big Loop 90110A | 10 | 0.90 | 1.1 | 2300 | 1.65 | 3.15 | 20000 | 1250 |
| Big Loop 10090A | 8 | 1.0 | 0.90 | 2000 | 2.0 | 3.60 | 17000 | 1060 |
| Big Loop 120130A | 1.2 | 1.20 | 1.30 | 2600 | 2.35 | 4.30 | 22000 | 1375 |
