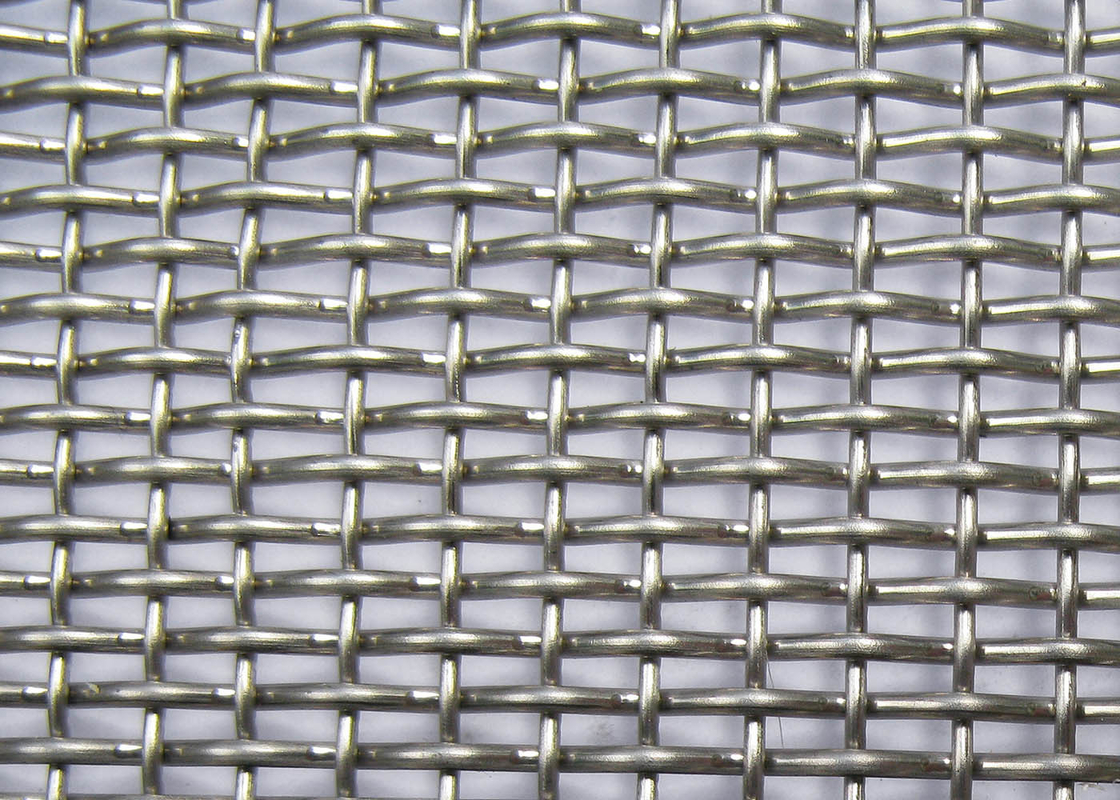

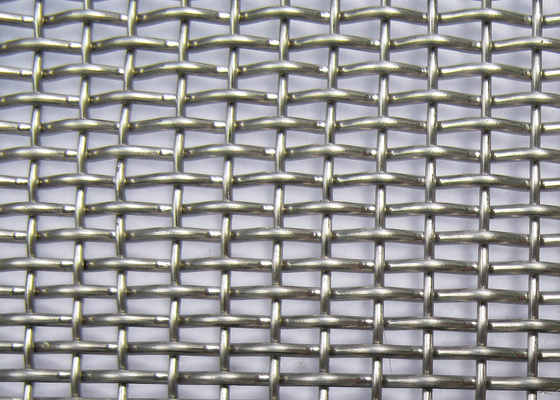

High Strength 0.8mm-5mm Stainless Steel Woven Wire Mesh Ss304

Large Image : High Strength 0.8mm-5mm Stainless Steel Woven Wire Mesh Ss304

Product Details:

Place of Origin:	Hebei,China
Brand Name:	R&K
Certification:	ISO9001:2008,SGS,FDA
Model Number:	R&K-MB

Payment & Shipping Terms:

Minimum Order Quantity:	5 Square meters
Price:	Negotiate
Packaging Details:	Inside with paper tube,Then waterproof paper covered,Finally in a wooden case or pallet
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union,Paypal,Trade assurance.Credit card.
Supply Ability:	1000 square meter per week

Contact Now

Detailed Product Description

Product Name:	SS 304 310s 0.1mm Square Wire Mesh For Food Industry	Material:	304 316
Feature:	Acid-resisting,corrosion Resistent Etc	Weave Style:	Plain Weave
Wire Diameter:	0.8mm-5mm	Advange:	High Strength
Width:	0,5m,1m,1,2m ,1,5m Or As Requirement	Length:	30m As The Standard One
Technique:	Woven	Hole Shape:	Square
High Light:	Stainless Steel Woven Wire Mesh Ss304 , High Strength Woven Wire Mesh , 0.8mm Stainless Steel Woven Wire Mesh

Stainless Steel Wire Mesh Woven Wire Mesh Ss 304 316 Wire Mesh

Descriptions of the stainless steel wire mesh:

There are many different materials of our stainless steel wire mesh, like SUS302 201 304 304L 316 316L 310 310S etc.

The difference depends on the nickel content.

Nickel (Ni), the higher the content, the more corrosion resistant, the worst is no nickel, which is basically equivalent to 201.
x nickel is the percentage of nickel in stainless steel. It is customary to think that stainless steel with nickel content "=8% is 304 stainless steel

201----2 Nickel
302----4 Nickel
304----8 Nickel
316----10 Nickel
316L----12Ni

The most commonly used are 304 and 316, and 304 is more commonly used.

Product Name	Stainless Steel Wire Mesh Woven Wire Mesh Ss 304 316 Wire Mesh
Mesh Count	1-635 mesh
Wire Diameter	0.018-0.1um
Micron	3-1000
Length	30meters
Width	1m
Material	304 316,304N,316L
Weave Style	Plain weave,twill weave
Color	Sliver
Pack	roll
Type	woven
Application	Filter
Advantage	Acid-resisting,corrosion Resistent Etc
Hole shape	square hole
Technique	woven

Feature of stainless steel mesh

304 stainless steel is the most widely used chromium-nickel stainless steel, with good corrosion resistance, heat resistance, low temperature strength and mechanical properties. Corrosion resistant in the atmosphere. If it is an industrial environment or a heavily polluted area, it needs to be cleaned in time to avoid corrosion.

Package of the stainless steel wire mesh

Mesh	Wire Diameter		Aperture		Open Area	Weight
	Wire Diameter		Aperture		Open Area	Weight
	Inch	MM	Inch	MM	(%)	(kg /Square meter)
1x1	0.08	2.03	0.92	23.37	92	2
2X2	0.063	1.6	0.437	11.1	87.4	2.5
3X3	0.054	1.37	0.279	7.09	83.8	2.7
4X4	0.047	1.19	0.203	5.16	81.2	2.7
5X5	0.041	1.04	0.159	4.04	79.5	2.6
8X8	0.02	0.5	0.105	2.675	71	1
9X9	0.02	0.5	0.091	2.32	67.7	1.1
10X10	0.025	0.64	0.075	1.91	74.9	2
12X12	0.02	0.508	0.063	1.6	75.9	1.5
12X12	0.022	0.55	0.062	1.567	54.8	1.815
14X14	0.02	0.508	0.051	1.3	71.9	1.8
14X14	0.0177	0.45	0.054	1.36	75.14	1.417
16X16	0.016	0.4	0.047	1.188	55	1.28
16X16	0.018	0.457	0.0445	1.13	71.2	1.6
18X18	0.017	0.432	0.0386	0.98	69.4	1.6
20X20	0.02	0.24	0.03	0.76	76	0.56
20X20	0.016	0.33	0.034	0.86	72.2	1.1
20X20	0.014	0.35	0.036	0.92	52.5	1.225
20X20	0.016	0.4	0.034	0.87	46.9	1.6
20X20	0.0177	0.45	0.0322	0.82	41.7	2.025
22X22	0.012	0.3	0.034	0.854	54.76	0.99
24X24	0.014	0.35	0.028	0.708	44.77	1.47
30X30	0.014	0.35	0.0195	0.5	34.6	1.84
30X30	0.012	0.305	0.0213	0.54	63.9	1.4
30X30	0.0094	0.24	0.0243	0.62	72.1	0.84
35X35	0.0079	0.2	0.021	0.526	52.5	0.7
35X35	0.0098	0.25	0.0187	0.475	42.92	1.09
40X40	0.0079	0.2	0.017	0.435	46.9	0.8
40X40	0.01	0.254	0.015	0.38	59.9	1.3
40X40	0.014	0.35	0.011	0.285	20.14	2.45
50X50	0.0055	0.14	0.0145	0.368	72.4	0.48
50X50	0.0079	0.2	0.012	0.308	36.76	1
60X60	0.0047	0.12	0.012	0.303	71.6	0.42
60X60	0.0059	0.15	0.0107	0.273	64.5	0.65
60X60	0.007	0.18	0.0096	0.243	33	0.972
80X80	0.047	0.12	0.0078	0.1975	38.7	0.576
80X80	0.0055	0.14	0.0069	0.117	45.5	0.76
100X100	0.0039	0.1	0.006	0.154	36.76	0.5
100X100	0.0045	0.114	0.0055	0.14	55.1	0.59
100X100	0.004	0.102	0.006	0.152	59.8	0.49
120X120	0.0028	0.07	0.0057	0.147	67.7	0.29
120X120	0.003	0.08	0.0052	0.132	38.7	0.384
150X150	0.0024	0.06	0.0043	0.11	64.7	0.26
150X150	0.0028	0.07	0.0039	0.1	58.8	0.38
165X165	0.0019	0.05	0.0041	0.104	67.5	0.2
180X180	0.0019	0.05	0.0035	0.091	64.5	0.22
180X180	0.0024	0.06	0.0031	0.081	57.4	0.32
200X200	0.0019	0.05	0.003	0.077	60.6	0.24
200X200	0.0024	0.06	0.0026	0.067	52.7	0.35
250X250	0.0016	0.04	0.0024	0.0616	60.6	0.2
270X270	0.0016	0.04	0.0021	0.054	57.4	0.21
300X300	0.0016	0.04	0.0018	0.045	53.5	0.23
325X325	0.0014	0.035	0.0017	0.0432	55.3	0.2
400X400	0.0012	0.03	0.0013	0.0335	52.7	0.18
500X500	0.0009	0.025	0.001	0.0258	50.7	0.15
500X500	0.0012	0.03	0.0008	0.0208	16.76	0.225
635X635	0.0007	0.018	0.0008	0.022	55	0.1
