Product Details:
Payment & Shipping Terms:
|
| Product Name: | SS304 40*260 Mesh Stainless Steel Reverse Wire Mesh Acid Resistant For Conveyor Belt System | Type: | Weave Wire Mesh |
|---|---|---|---|
| Hole Shape: | Square Shape | Application: | Screen |
| Technique: | Woven | Feature: | Acid Resistant |
| Material: | SUS 304 | Key Word: | Stainless Steel Reverse Mesh |
| High Light: | stainless steel mesh for plastic extruder,SS304 Reverse Dutch Weave Wire Mesh,SGS Reverse Dutch Weave Wire Mesh |
||

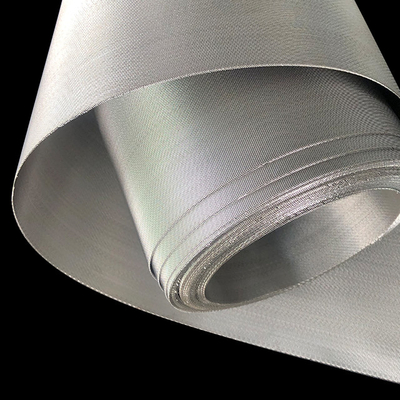

30*140 mesh stainless steel reverse mesh for plastic extruder
Feature of stainless steel Reverse Dutch woven wire mesh
mesh surface is smooth
the hardness is high
the net is continuous
the deformation is not high
the high temperature resistance
the corrosion resistance
the flexible mesh
excellent filtering performance.
Stainless steel reverse Dutch mesh application:
It is widely used for such as plastic bags, plastic film, etc., aerospace, oil, chemical fiber, machinery, plastic products, scientific research and transportation. Plastic extrusion machine, plastic melt filter, and automatic leather filter of plastic belt filters. The product is well operated and is usually exported to Southeast Asia, Britain, Germany, Japan, the United States, South Africa, Indonesia, Thailand and other countries and other regions and regions.
| Material | 304 stainless steel wire mesh |
| Weave | Plain weave |
| Mesh count | 20*270mesh-500*3500 mesh |
| Thread diameter | 0.25*0.2-0.025*0.015mm |
| Opening size | 3-119 micron |
| Color | silver |
| Brand name | R&K |
Parameter of Dutch mesh
|
Plain weave Dutch mesh |
||||
|
Number |
Mesh(warpxweft) |
Wire diameter (warpxweft) |
Aperture (um) |
Weight (kg/m2) |
|
32# |
8 x 62 |
0.63mm x 0.45mm |
300 |
5.42 |
|
40# |
10 x 79 |
0.50mm x 0.355mm |
250 |
3.16 |
|
48# |
12 x 64 |
0.58mm x 0.40mm |
280 |
2.9 |
|
55# |
14 x 88 |
0.40mm x 0.30mm |
180 |
2.54 |
|
76# |
19 x 140 |
0.315mm x 0.20mm |
140 |
1.88 |
|
80# |
20 x 300 |
0.35mm x 0.20mm |
- |
3.6 |
|
95# |
24 x 110 |
0.355mm x 0.25mm |
120 |
2.45 |
|
100# |
25 x 140 |
0.28mm x 0.20mm |
100 |
1.95 |
|
120# |
30 x 150 |
0.25mm x 0.18mm |
80 |
1.68 |
|
140# |
35 x 175 |
0.224mm x 0.16mm |
71 |
1.52 |
|
160# |
40 x 200 |
0.20mm x 0.14mm |
60 |
1.40 |
|
180# |
45 x 250 |
0.16mm x 0.112mm |
56 |
1.09 |
|
200# |
50 x 250 |
0.14mm x 0.11mm |
53 |
1.04 |
|
220# |
55.5 x 280 |
0.14mm x 0.10mm |
50 |
0.92 |
|
240# |
65 x 330 |
0.11mm x 0.08mm |
36 |
0.71 |
|
280#(1) |
70 x 350 |
0.11mm x 0.08mm |
35 |
0.72 |
|
280#(2) |
70 x 385 |
0.11mm x 0.07mm |
32 |
0.75 |
|
300# |
78 x 700 |
0.11mm x 0.08mm |
30 |
1.39 |
|
315#(1) |
80 x 400 |
0.10mm x 0.065mm |
40 |
0.62 |
|
315#(2) |
80 x 600 |
0.10mm x 0.06mm |
- |
0.74 |
|
315#(3) |
80 x 800 |
0.15mm x 0.04mm |
- |
0.77 |
|
320# |
81 x 780 |
0.10mm x 0.07mm |
30 |
1.22 |
|
354# |
90 x 550 |
0.12mm x 0.05 |
- |
0.667 |
|
Width:1m-1.6m |
||||
