Product Details:
Payment & Shipping Terms:
|
| Material: | 100%polyester | Color: | White AndBlue |
|---|---|---|---|
| Width: | 50-360cm | Length: | Can Be Customized |
| Usage: | Mine, Slduge Dewatering | Packing: | Woven Bags And Wooden Case |
| Production Time: | 5-7 Days | Sample: | Free Sample Provide |
| High Light: | 360cm Polyester Mesh Belt,360cm dryer mesh belt,Press Filter Machine dryer mesh belt |
||

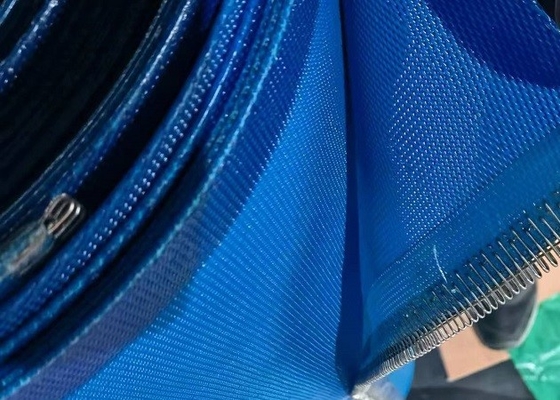

Polyester dryer screen belt for dryer press filter machine
Introduction:
Polyester sludge dewatering mesh belt have two type: one is the spiral dryer mesh belt, another is weaved by the different weaving way, because of its special structure, it have smaller air permeability. Both of this two types was mainly used for sludge dehydration, paper pulp and juice squeeze, mine smelting, mine tailing disposal and other pressure filtration industries
Usage:
The filter belt operates as a key part in the belt filter press as it determines the actual output and quality of the filtration process. Our fabrics are made with reasonable weave structure and special yarns for different applications to achieve rapid draining and good filter cake release.
The effectiveness of the belt press filter can be increased by adjusting the pressure on the fabric belt which requires a belt of high tensile strength and strong joint. Our fabric belts are woven with good quality mono-filaments and heat-set for high stability and strength, minimum elongation, long running time. The two ends of the belt are connected by metal clipper joint to cope with various pressure differences across the belt.
Such filter fabric cloth are widely used where belt press separation and filtration is necessary, such as: wastewater & sewage treatment, dewatering of sludge from municipal sewage plants, paper making industry, mining, mineral and chemical industries, pressing & squeezing of fruits, sugar plants and others.
Characteristic:
Polyetser dryer mesh belt is herringbone design, as a result of the sludge and mesh belt off quickly, not sticky mud, a large number of out of the mud, easy to clean, convenient and fast connection.
Advantages
Polyester sludge dewatering belt is made from mixed monofilaments and multi-filaments. It is strong and work stable.
Good permeability,high production efficiency,can change permeability of belts according to customer's requirement.
Lower percentage of moisture,easy to peel off filter cake.
Take high-viscosity polyester filaments as material,make products with good abrasive resistance and intensity.
Belt can be easily regenerated and reused.
Choosing stainless steel clip joint for it,which makes it stronger and using long time
|
Type
|
Wire Diameter(mm) | Density/cm |
Strength(N/cm) Tensile strength |
Weight kg/m2 |
Thickness mm |
CFM 127/pa |
|||
|
Warp |
Weft |
Warp |
Weft |
Surface |
Joint |
||||
| RK31505 | 0.40 | 0.50 | 33 | 9 | 1600 | 900 | 0.80 | 1.30 | 186 |
| RK26508 | 0.50 | 0.50 | 28 | 18.5 | 1600 | 900 | 1.20 | 1.5 | 128 |
| RK2470 | 0.50 | 0.70 | 24 | 9 | 1600 | 650 | 1.23 | 1.90 | 470 |
| RK22903 | 0.50 | 0.90 | 23 | 5.5 | 1600 | 900 | 1.4 | 1.90 | 530 |
| RK27708 | 0.50 | 0.70 | 28 | 8.5 | 1600 | 900 | 1.53 | 2.0 | 306 |
| RK26908 | 0.50 | 0.90 | 26.2 | 6.2 | 1600 | 900 | 1.49 | 2.15 | 380 |
| RK24908 | 0.50 | 0.90 | 24.8 | 7.1 | 1600 | 900 | 1.48 | 2.1 | 460 |
| RK24808 | 0.50 | 0.80 | 24.8 | 8 | 1600 | 900 | 1.4 | 2.0 | 430 |
| RK16903 | 0.70 | 0.90 | 16.3 | 5 | 1600 | 900 | 1.5 | 2.1 | 470 |
| RK16903blue | 0.70 | 0.90 | 16.3 | 5.8/6 | 1600 | 900 | 1.7 | 2.1 | 347/248 |
| RK15905 | 0.90 | 0.90 | 15.3 | 5 | 1600 | 900 | 2.1 | 2.77 | 490 |
| RK151105 | 0.90 | 1.10 | 15.3 | 6.3 | 1600 | 900 | 2.45 | 2.85 | 580 |
| RK12904 | 0.90 | 0.90 | 12.3 | 9.5 | 1600 | 900 | 2.2 | 3.5 | 600 |
