| Product Name: | High Temperature Metal Chain Link Wire Mesh Conveyor Belt For Food Industry | Keyword: | Chain Link Wire Mesh Conveyor Belt |
|---|---|---|---|
| Material: | 304 316 Stainless Steel | Main Feature: | Food Grade |
| Chain Pitch: | 63.5mm | Width: | 1.8m |
| Package: | Plywood Box | Delivery: | Up To Your Quantity |
| High Light: | high temperature chain mesh conveyor belt,chain link wire mesh conveyor belt,63.5mm chain link mesh conveyor belt |
||

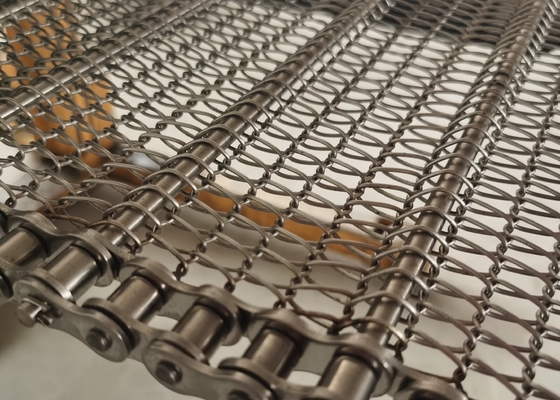

High Temperature Metal Chain Link Wire Mesh Conveyor Belt For Food Industry
Chain Link Mesh Conveyor Belt Specification
304 Stainless Steel Chain Link Mesh Conveyor Belt is driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric. The density of wire mesh fabric is choosen according to size of the product conveyed on the belt.
Chain Link Mesh Conveyor Belt Data Sheet
| Common Material | Stainelss steel 304 316 321 904L 2205 2207 430 310 317 309 etc.304L 316L 430 904 310S |
| Special Material | Pure nickel wire, Ni-cr wire, monel, inconel wire etc. |
| Wire Diameter | 0.023-2.8mm |
| Weaving Type | Plain weave, twill weave and dutch weave, Bamboo weave, Hollander weave etc. |
| Mesh Counts | 1-2300 meshes |
| Micron Size | 500 400 300 200 100 80 70 25 micron |
| Technique | Woven wire mesh |
| Mesh Rolls Size | 1x30m 2x30m 1.524x30m 0.914x30m etc. |
| Sample | Free and avaliable |
| Surface | Flat and bright |
Chain Link Mesh Conveyor Belt Features
1.Large open area - up to 86%
2.Small transfers
3.Non-slip positive drive
4.Very low belt mass for improved operating efficiency
5.Accurate tracking
6.Hygienic design, Easy to clean, clean-in-place capability
7.Light weight, easy to handle
Chain Link Mesh Conveyor Belt Application
1 Oven
2 Washing machine
3 Freezer such as Dumplings freezer machine
4 Quenching industry
Chain Link Mesh Conveyor Belt Drawing
Please supply these detail size and then i can give you accurate offer.
