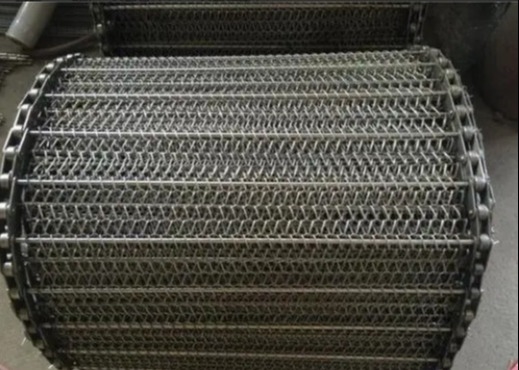

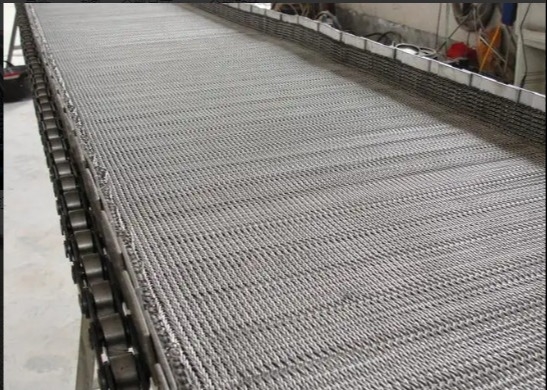

Mobile Stainless Steel Conveyor Chain Mesh Conveyor Belt316
Chain Mesh Conveyor Belt Description :
304 Stainless Steel Chain Link Mesh Conveyor Belt is driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric. The density of wire mesh fabric is choosen according to size of the product conveyed on the belt.
Chain Mesh Conveyor Belt List
| Specification : | |
| Material | carbon steel, SUS 201 304 316 |
| Wire diameter | 1 to 3mm |
| Rod diameter | 4 to 12 mm |
| Spiral wire pitch | 3 to 20 mm |
| Chain pitch | 19.05mm 25.4mm 31.75mm 38.1mm 50.8mm 76.2mm or customized |
| Width | 0.2m to 4m |
| Rod pitch | 5 to 30 mm |
Chain Mesh Conveyor Belt Categories:
1. Fast frozen machine,baking machine, plane conveyor, screw conveyor.
2. Cleaning,sterilization,drying ,cooking,cooling and so on for food machine.
3. Losing bottle annealing,roast flower etc for glass machine .
4. Eachi kinds of pipeline transport.
5. Metal process:powder metallurgy, heat treatment ,hardening, sintering, brazing, roasting, brightening, blacking, bearing, carburizing high-temperature.
6. Washing machine,winding machine,drying machine, etc.
Chain Mesh Conveyor Belt Advantages :
1. It can be the delivery of granular materials, can also be carried into the delivery of items.
2. Suitable for high density transportation in small.
3. Smooth motion,force
4. Convenient installation and replacement,high cost,long service life.
