Product Details:
Payment & Shipping Terms:
|
| Material: | 100% Polyester | Color: | White And Bule |
|---|---|---|---|
| Product Name: | Polyester Liner Plain Weave Mesh Belt | Hole Size: | 0.5-10mm |
| Usage: | Food Drying | Sample: | Free Sample |
| High Light: | food drying polyester mesh belt,10mm hole polyester mesh belt |
||

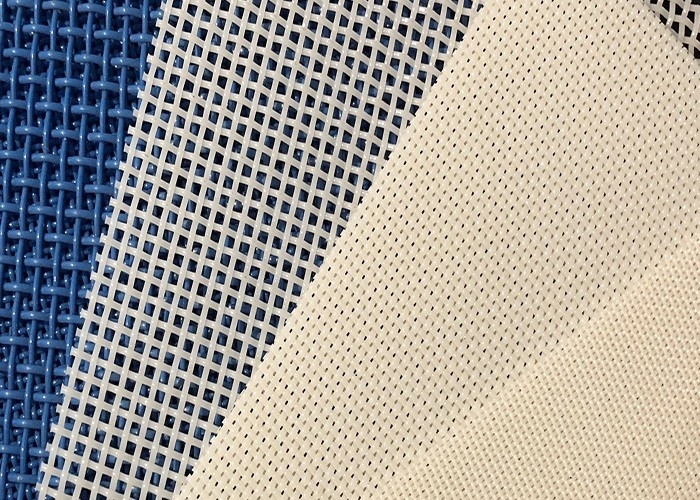

polyester filter linear screen square hole mesh dryer belt
The polyester plain weave 2-shed and 3-shed fabric is mainly used in special lines of paper making industry, Such as paper pulps making, packing and liner cardboard making, etc. Also can be used in mining industry for sieving or conveyor belt, high density board making, food drying, sludge dehydration machine, Concentrate and other filtration industries.
Usage:
1. filtering
2. Dewatering
3. washing
4. mining
5. Fruit and vegetables food drying
6. Paper making
Features:
1) Chemical, thermal resistance
2) Easy to clean
3) Working temperature: +150°C to -75°C in dry conditions. 70°C+ in wet conditions
4) Precise aperture from 0.5mm-2mm, good filtration ability.
5) Smooth running properties
6) Max. Width 6.0 M
7)Side treatment can be resin glued coated and canvas coated
8) Connection way: Clipper seam, pin rings, spiral rings, endless
|
Type |
Filament diameter mm |
Density/cm |
Weight Kg/m2 |
Thickness mm |
Aperture mm Warp/weft |
CFM 127Pa |
||
|
Warp |
Weft |
经线 Warp |
纬线 Weft |
|||||
| RK021002 | 1.0 | 1.0 | 2.85 | 2.65 | 0.6 | 1.85 | 2.5*2.77 | 2000 |
| RK031002 | 1.0 | 1.0 | 3.2 | 3.25 | 0.8 | 1.86 | 2.12*2.07 | 1600 |
| RK06802 | 0.8 | 0.8 | 6.6 | 6.5 | 0.85 | 1.45 | 0.72*0.73 | 725 |
| RK06702 | 0.7 | 0.7 | 7 | 7 | 0.77 | 1.3 | 0.72*0.72 | 690 |
| RK07802 | 0.8 | 0.8 | 7.8 | 7 | 1.1 | 1.45 | 0.32*0.54 | 370 |
| RK09502 | 0.5 | 0.5 | 9.7 | 10.3 | 0.5 | 0.9 | 0.53*0.47 | 634 |
| RK12502 | 0.5 | 0.5 | 13.5 | 8.5 | 0.63 | 1.95 | 0.24*0.65 | 6280 |
| RK09452 | 0.45 | 0.45 | 10 | 8.6 | 0.45 | 0.88 | 0.55*0.71 | 970 |
| RK08603 | 0.5 | 0.6 | 9.4 | 9 | 0.6 | 0.15 | 0.56*0.51 | 560 |
| RK08502 | 0.5 | 0.5 | 9.5 | 8.6 | 0.89 | 0.47 | 0.50*0.65 | 634 |
| RK06803 | 0.7 | 0.8 | 7 | 5.5 | 0.75 | 1.53 | 0.72*1.0 | 1000 |
| RK09603 | 0.5 | 0.5 | 10.5 | 9.2 | 0.65 | 1.05 | 0.45*0.48 | 518 |
