| Brand Name: | R&K | Name: | New Design Durable Of Good Air Permeability Water Permeability Polyester Sludge Dewatering Belt |
|---|---|---|---|
| Color:: | White Blue And Red | Size:: | 1-50m |
| Application:: | Paper Mill Industry | Advantage:: | High Wear Resistance |
| Packing:: | Simple Packing | Material: | 100% Polyester |
| High Light: | 50m Sludge Dewatering Belt,Sewage Water Treatment Sludge Dewatering Belt,50m Polyester mesh Belt |
||

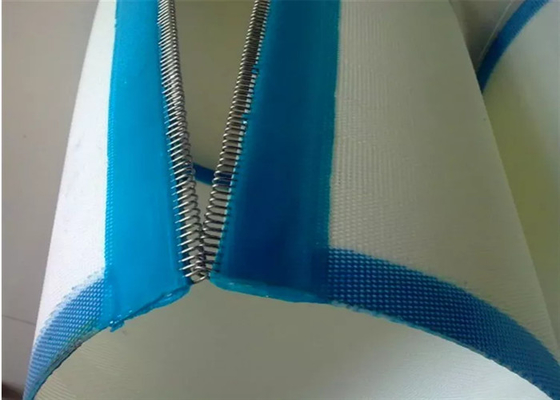

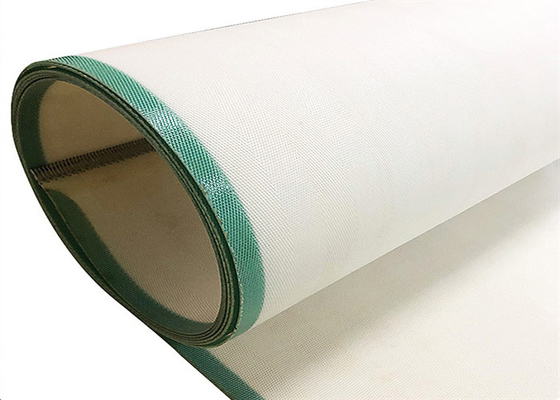

Blue Polyester Sludge Dewatering Mesh Belt For Pharmaceutical Filter Sewage Water Treatment
Polyester Sludge Dewatering Belt Introduction
Polyester Mesh Belt for sludge dehydration is widely used in wastewater treatment plants
paper and tissue factory coal mining plants and jucie pressing of grapes fruits
Polyester Sludge Dewatering Belt Date Sheet
| Model | Wire Diameter | Density Root/10cm | Air Permeability m3/m2h | Net Weight g/m2 | Strength kg/cm | Used in | ||
| Wrap | Weft | Wrap | Weft | |||||
| 14803 | 0.7 | 0.8 | 142 | 47-60 | 3900-8500 | 1400 | 240 | Sludge,Squeeze juice |
| 16803 | 0.7 | 0.8 | 156 | 46-50 | 6000 | 1400 | 265 | Sludge,Squeeze juice |
| 16904 | 0.75 | 0.9 | 156 | 47 | 8000 | 1800 | 280 | Iron and steel industry sludge dewatering Living slude dewatering |
| 121054 | 0.9 | 1.05 | 120 | 42 | 8000 | 1650 | 340 | Iron and steel industry sludge dewatering |
| 22903 | 0.5 | 0.9 | 220 | 50-55 | 9000 | 1200 | 200 | Living slude dewatering |
| 20703 | 0.5 | 0.7 | 200 | 70 | 10000 | 1000 | 185 | Living slude dewatering |
| 24504 | 0.5 | 0.5 | 240 | 130-140 | 8500 | 1180 | 220 | Paper dry network |
| 8903 | 0.9 | 0.9 | 78 | 50 | 8500 | 1430 | 210 | industrial sludge dewatering |
| 16704 | 0.7 | 0.7 | 160 | 90 | 12000 | 1350 | 165 | Building materials dewatering |
| 26908 | 0.5 | 0.9 | 26.4 | 69-75 | 5000 | 1364 | 240 | Viscosit of the larger |
| 12 Mesh | 0.75 | 0.8 | 47 | 48 | 650 | 94 | Paper pulp washing | |
Polyester Sludge Dewatering Belt Features
| It has heat shaping |
| It has high beaking elongation tolerance |
| It has high temperature resistant under 180 degree |
| This fabric belt is widely used in all kinds of industries,such as printing |
| Polyester spiral link dryer fabric belt is also used in papermaking industry |
| 100% polyester monofilament |
Polyester Sludge Dewatering Belt Advantage
1 Good permeability air permeability
2 Non-revealed sludge
3 Acid-resisting alkali-resisting heat resistance(180 °C)
4 Because of their designing structure, the sludge can be peel off easily after pigeonhole
filter so the screen are easily cleaned and have a long working time
5 Therefore they are designed specially for sludge dehydration
